STR-DH510
2
1)
Measured under the following conditions:
Area code Power requirements
US, CND 120 V AC, 60 Hz
2)
Reference power output for front, center and surround speakers.
Depending on the sound field settings and the source, there may be
no sound output.
Frequency response
Analog 10 Hz – 70 kHz,
+0.5/–2 dB (with sound
field and equalizer bypassed)
Input
Analog Sensitivity: 500 mV/
50 kohms
S/N
3)
: 96 dB
(A, 500 mV
4)
)
Digital (Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
Digital (Optical) S/N: 100 dB
(A, 20 kHz LPF)
Output (analog)
AUDIO OUT Voltage: 500 mV/
10 kohms
SUBWOOFER Voltage: 2 V/1 kohm
Equalizer
Gain levels ±6 dB, 1 dB step
3)
INPUT SHORT (with sound field and equalizer bypassed).
4)
Weighted network, input level.
FM tuner section
Tuning range 87.5 MHz – 108.0 MHz
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Area code Tuning scale
10 kHz step 9 kHz step
US, CND 530 kHz
–
531 kHz
–
1,710 kHz
1,710 kHz
Antenna (aerial) Loop antenna (aerial)
Intermediate frequency 450 kHz
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO: Y: 1 Vp-p, 75 ohms
P
B/CB: 0.7 Vp-p, 75 ohms
P
R/CR: 0.7 Vp-p, 75 ohms
80 MHz HD Pass Through
General
Power requirements
Area code Power requirements
US, CND 120 V AC, 60 Hz
Power output (DIGITAL MEDIA PORT)
DC OUT: 5 V, 0.7 A MAX
Power consumption
Area code Power consumption
US, CND 230 W
Dimensions (width/height/depth) (Approx.)
430 mm × 157.5 mm × 322 mm
(17 in × 6
1/4 in × 12 3/4 in) including
projecting parts and controls
Mass (Approx.) 7.4 kg (16 lb 6 oz)

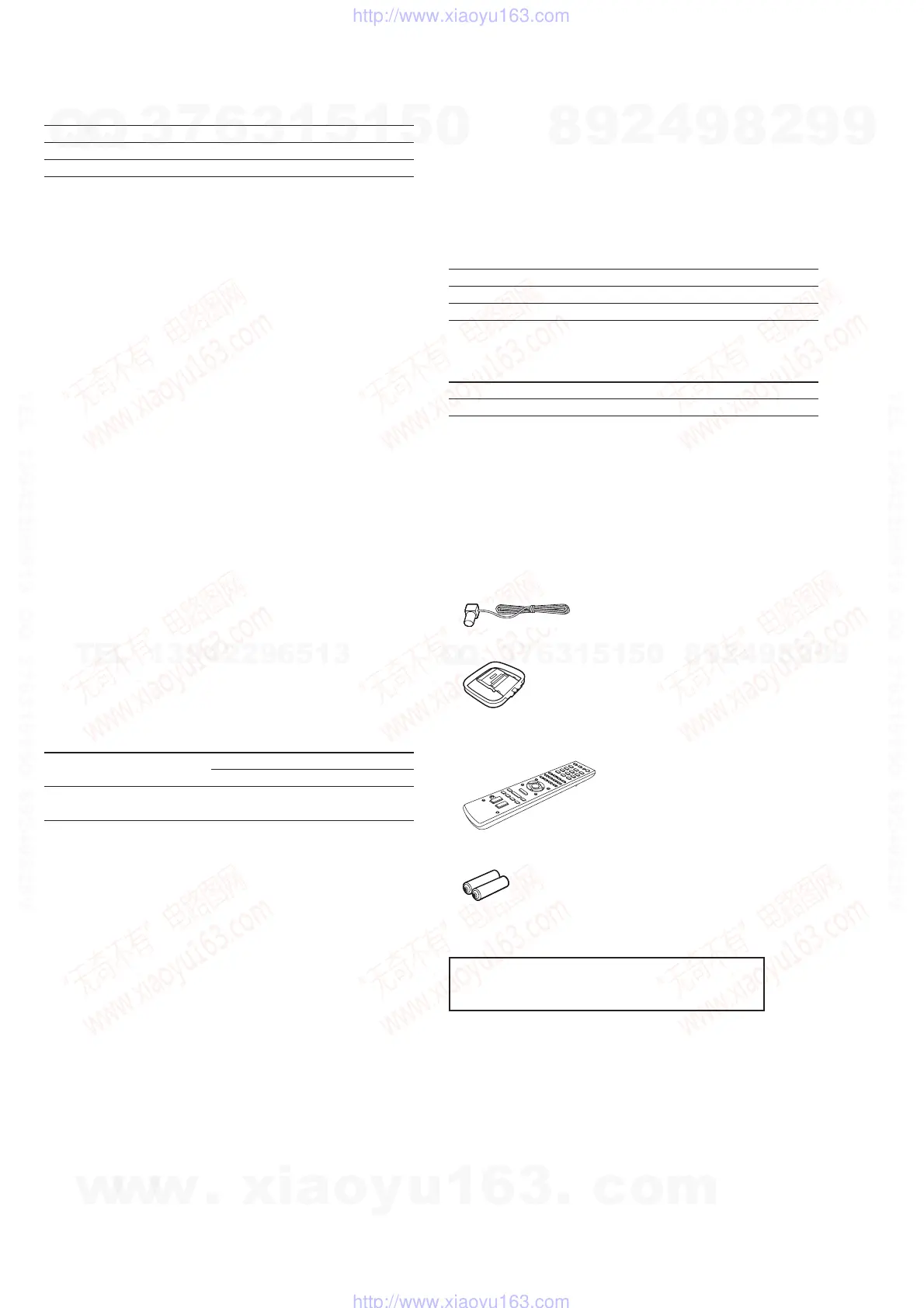

Supplied accessories
•
Operating Instructions
• Quick Setup Guide
•
FM wire antenna (aerial) (1)
• AM loop antenna (aerial) (1)
• Remote commander (1)
– RM-AAU071 (Models of area code US, CND only)
• R6 (size-AA) batteries (2)
Design and specifications are subject to change without notice.
• Standby power consumption: 0.3 W
• Halogenated flame retardants are not used in the certain
printed wiring boards.
Abbreviation
CND : Canadian model
