STR-DH510
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

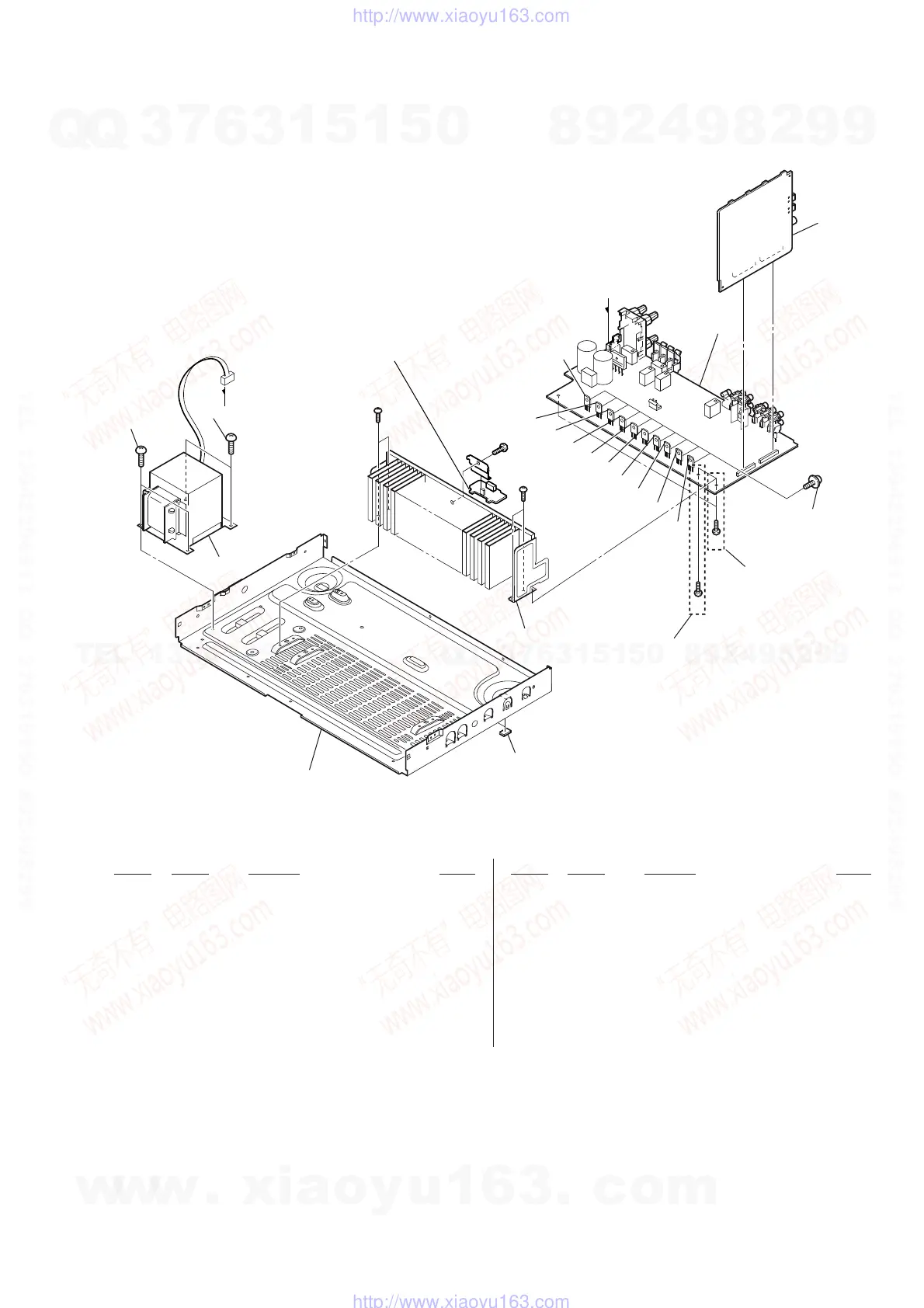

5-4. CHASSIS SECTION
Q704 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q753 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q754 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q853 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q854 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0
T901 1-445-797-11 POWER TRANSFORMER (US)
0
T901 1-445-824-11 POWER TRANSFORMER (CND)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
151 A-1747-307-A MAIN BOARD, COMPLETE
152 3-905-609-31 SCREW (TRANSISTOR)
153 A-1747-286-A DIGITAL BOARD, COMPLETE
154 4-977-358-01 CUSHION
155 4-249-675-01 +BV SUMITITE S 4X6 ROUND
Q603 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q604 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q653 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q654 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q703 6-702-390-01 TRANSISTOR MN2488-OPY-MK
#1
A
#1
#1
not supplied
152
154
not supplied
Q753
Q703
Q604
Q653
Q654
Q754
Q704
Q603
Q854
Q853
151
#1
153
not supplied
TEMP-SENSOR board
A
155
155
T901
#1
(for Canadian model only)
(for US model only)
