Sony STR-GX211 Service Manual

NOTE:
* -XX, -X mean standardized parts, so they
may have some difference from the
original one.
e Items marked “ * ” are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.

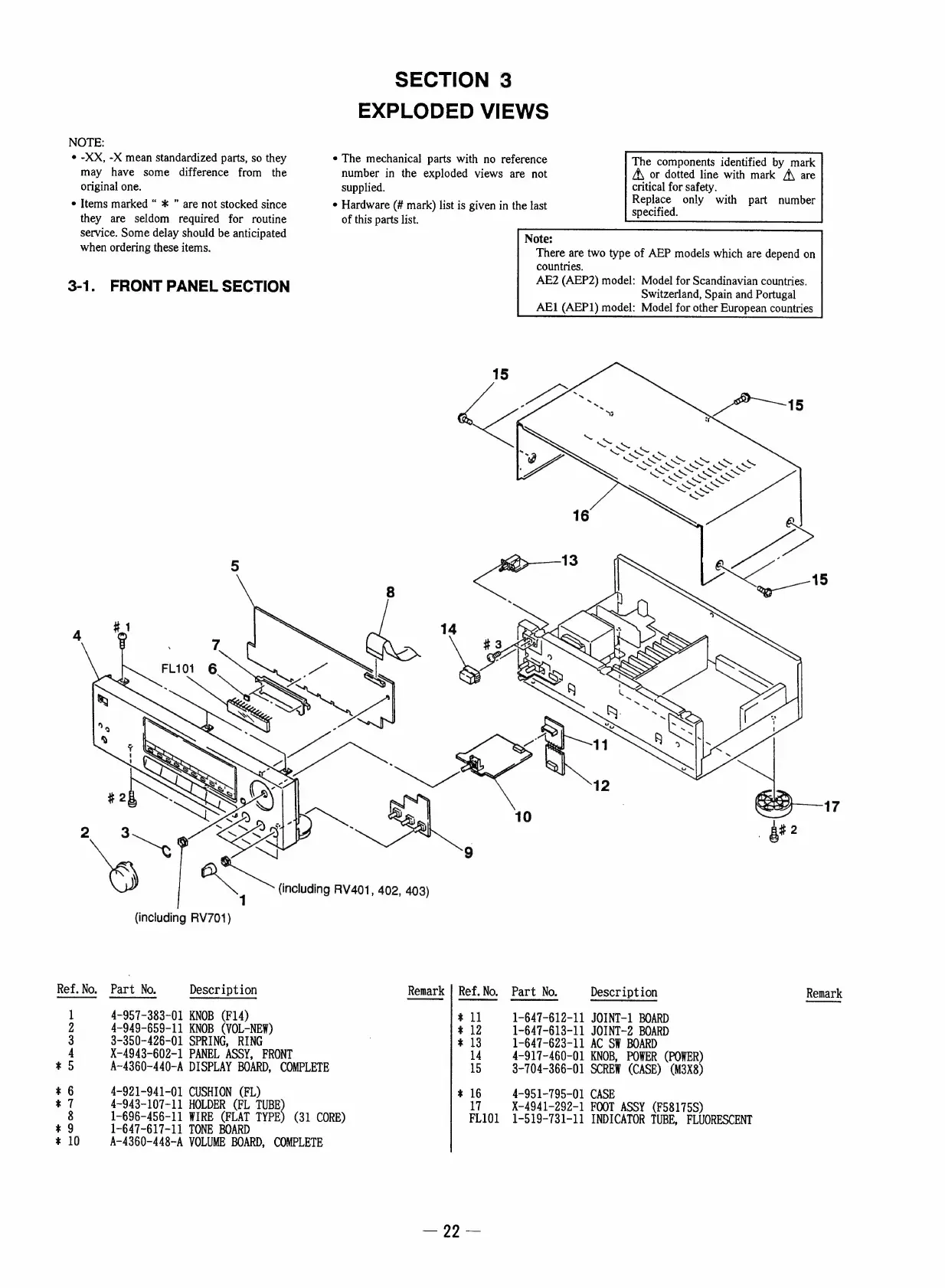

3-1.
FRONT PANEL SECTION
(including
(including RV701)
Ref.No. Part No. Description
% ”
ea
(5 08 ~1 OD 1m Gobo
oS
4-957-383-01 KNOB (F14)
4-949-659-11 KNOB (VOL-NE¥)
3-350-426-01 SPRING, RING
X-4943-602-1 PANEL ASSY, FRONT
A-4360-440-A DISPLAY BOARD, COMPLETE
4-921-941-01 CUSHION (FL)
4~943-107-11 HOLDER (FL TUBE)
SECTION 3
EXPLODED VIEWS
* The mechanical parts with no reference
number in the exploded views are not
supplied.
¢ Hardware (# mark) list is given in the last
of this parts list.
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Note:
There are two type of AEP models which are depend on
countries.
AEZ2 (AEP2) model: Model for Scandinavian countries.
Switzerland, Spain and Portugal
AE1 (AEP1) model: Model for other European countries
RV401, 402, 403)
Remark | Ref.No. Part No. Description Remark
* 11 1-647-612-11 JOINT-1 BOARD
* 12 1-647-613-11 JOINT~2 BOARD
* 13 1-647-623-11 AC SW BOARD
14 4-917-460-01 KNOB, POWER (POWER)
15 3-704-366-01 SCREW (CASE) (M3X8)
* 16 4-951-795-01 CASE
17 X-4941-292-1 FOOT ASSY (F58175S)
1-696-456-11
WIRE
(FLAT TYPE)
(31
CORE)
FL101
1-519-731-11
INDICATOR
TUBE,
FLUORESCENT
1-647-617-11 TONE BOARD
A-4360-448-A VOLUME BOARD, COMPLETE
