Sony STR-GX211 Service Manual

Ref. No.
* 51
* 52
* 54
* 55
* 56
* 57
* 57
* 59
* 60
The components identified by mark
A\ or dotted line with mark /\ are
critical for safety.
Replace only with part number
specified.

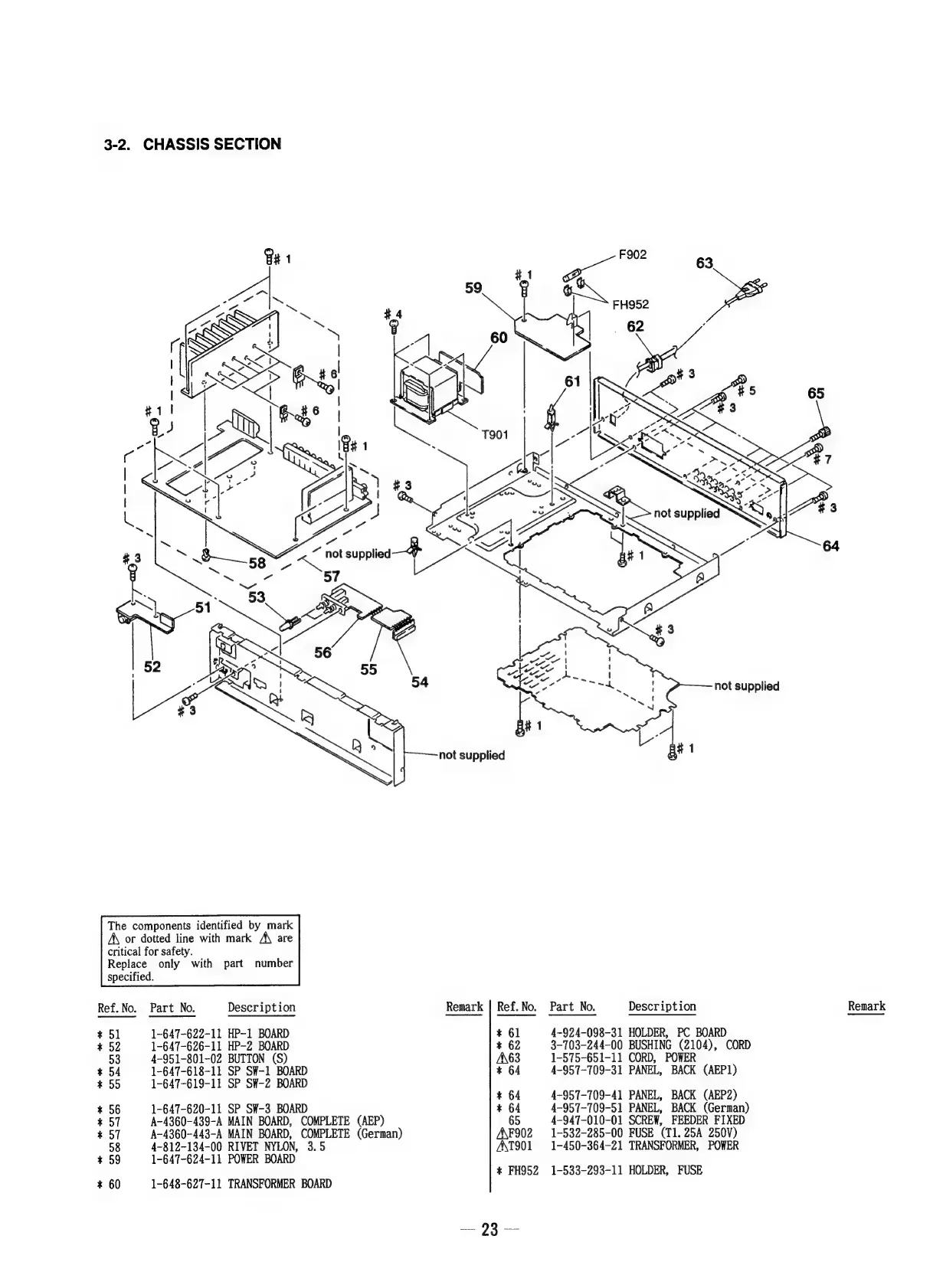

CHASSIS SECTION
Description
Part No.
1-647-622-11 HP-1 BOARD
1-647-626-11 HP-2 BOARD
4-951-801-02 BUTTON (S)
1-647-618-11 SP SW-1 BOARD
1-647-619-11 SP SW-2 BOARD
1-647-620-11 SP SW-3 BOARD
A-4360-439-A MAIN BOARD, COMPLETE (AEP)
A-4360-443-A MAIN BOARD, COMPLETE (German)
4-812-134-00 RIVET NYLON, 3.5
1-647-624-11 POWER BOARD
1-648-627-11 TRANSFORMER BOARD
Remark
* 61
* 62
A\63
* 64
* 64
* 64
65
A\F902
A\T901
Ref. No. Part No.
not supplied
Description Remark
4-924-098-31 HOLDER, PC BOARD
3-703-244-00 BUSHING (2104), CORD
1-575-651-11 CORD, POWER
4-957-709-31 PANEL, BACK (AEP1)
4-957-709-41 PANEL, BACK (AEP2)
4-957-709-51 PANEL, BACK (German)
4-947-010-01 SCREW, FEEDER FIXED
1~532-285-00 FUSE (T1.25A 250V)
1-450-364-21 TRANSFORMER, POWER
* FH952 1-533-293-11 HOLDER, FUSE
