Sony STR-GX390 Service Manual

STR-GX290/GX390

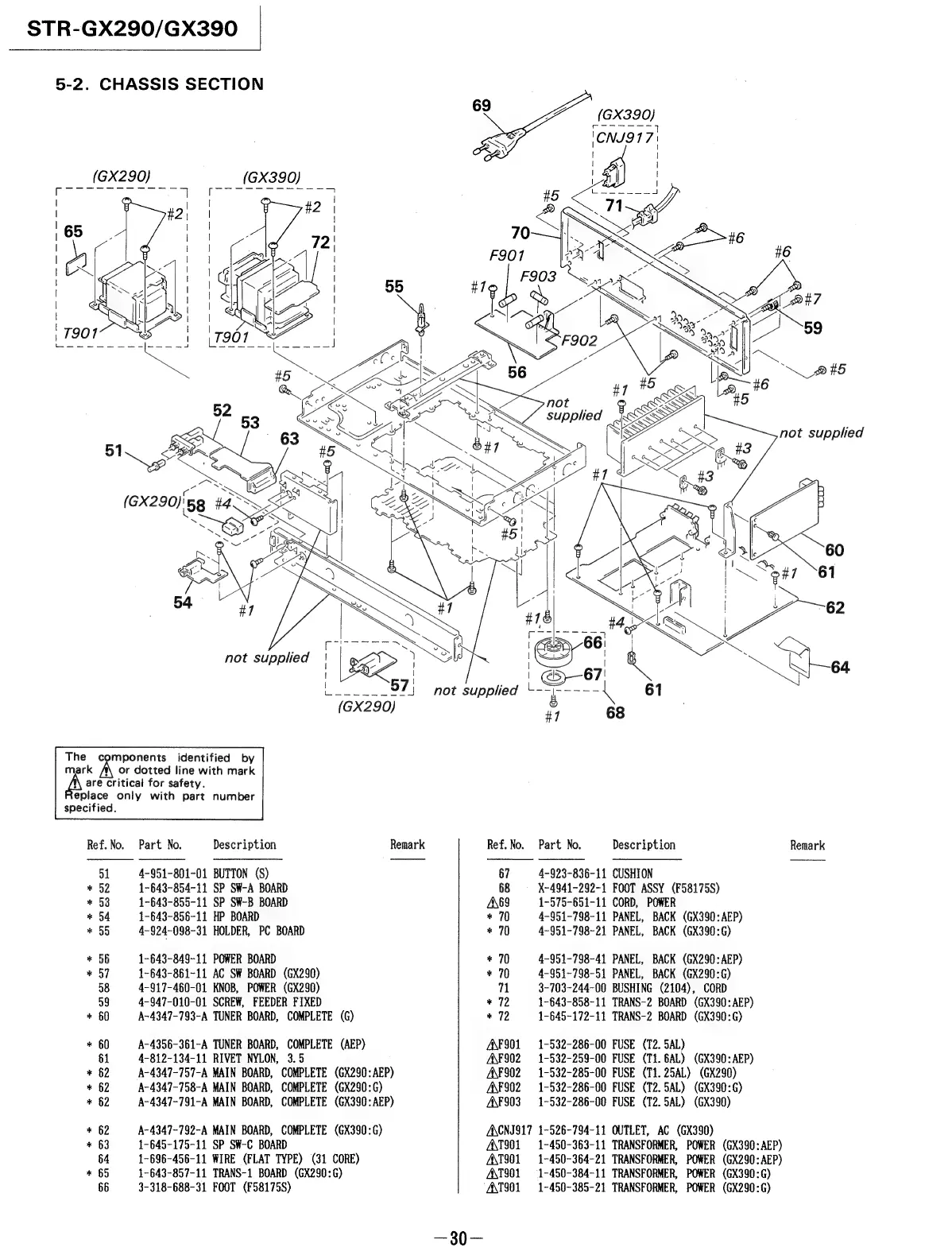

5-2. CHASSIS SECTION
(GX290)
(GX390)
(GX290)
The components identified by
mark or dotted line with mark
are critical for safety.
eplace only with part number
specified.
Ref. No.
Part No. Description
51 4-951-801-01 BUTTON (S)
32 1-643-854-11 SP SW-A BOARD
33 1-643-855-11 SP SW-B BOARD
1-643-856-11 HP BOARD
55 4-924-098-31 HOLDER, PC BOARD
ee & &
on
rs
*
aon f=} 1-643-849-11 POWER BOARD
* O7 1-643-861-11 AC SW BOARD (GX290)
38 4-917-460-01 KNOB, POWER (GX290)
59 4-947-010-01 SCREW, FEEDER FIXED
* 60 A-4347-793-A TUNER BOARD, COMPLETE (G)
* 60 A-4356-361-A TUNER BOARD, COMPLETE (AEP)
61 4-812-134-11 RIVET NYLON, 3.5
* 62 A-4347-757-A MAIN BOARD, COMPLETE (GX290: AEP)
* §2 A-4347-758-A MAIN BOARD, COMPLETE (GX290:G)
* 62 A-4347-791-A MAIN BOARD, COMPLETE (GX390: AEP)
*
f=7) BS
A-4347-792-A MAIN BOARD, COMPLETE (GX390:G)
1-645-175-11 SP SW-C BOARD
64 1-696-456-11 WIRE (FLAT TYPE) (31 CORE)
* 65 1-643-857-11 TRANS-1 BOARD (GX290:6)
66 3-318-688-31 FOOT (F58175S)
*
f~ >)
ww
“ANT901
(GX390)
ea iaraaaes 7
1
I
'CNI9 1 7
#1 68
Ref. No. Part No. Description Remark
67 4-923-836-11 CUSHION
68 X-4941-292-1 FOOT ASSY (F58175S)
AES 1-575-651-11 CORD, POWER
* 70 4-951-798-11 PANEL, BACK (GX390:AEP)
* 70 4-951-798-21 PANEL, BACK (GX390:6)
* 70 4-951-798-41 PANEL, BACK (GX290:AEP)
* 70 4-951-798-51 PANEL, BACK (GX290:6)
71 3-703-244-00 BUSHING (2104), CORD
* 72 1-643-858-11 TRANS-2 BOARD (GX390: AEP)
* 72 1-645-172-11 TRANS-2 BOARD (GX390:6)
A901
AF 902
AF 902
AF 902
A903
1-532-286-00 FUSE (12. SAL)
1-532-259-00 FUSE (T1.6AL) (GX390:AEP)
1-532-285-00 FUSE (T1.25AL) (GX290)
1-532-286-00 FUSE (T2.5AL) (6X390:6)
1-532-286-00 FUSE (12. 5AL) (GX390)
ANCNIG917 1-526-794-11 OUTLET, AC (GX390)
A\T901——-1-450-363-11 TRANSFORMER, POWER (GX390: AEP)
A\T901—-1-450-364-21 TRANSFORMER, POWER (GX290: AEP)
AXT901 —- 1-450-384-11 TRANSFORMER, POWER (GX390:G)
1-450-385-21 TRANSFORMER, POWER (GX290:6)
