6

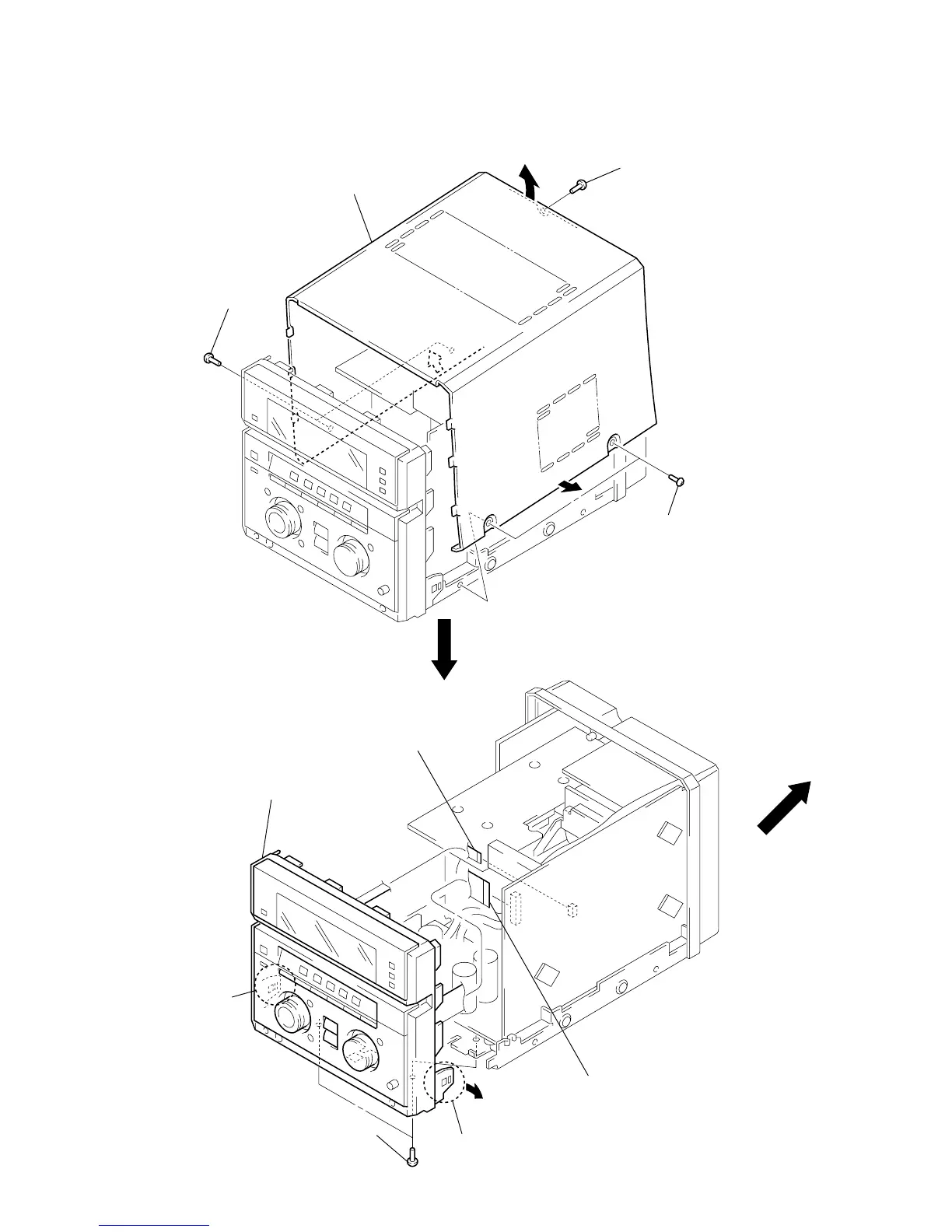

CASE
FRONT PANEL ASS’Y
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
3
case
1
two screws
(case 3 TP2)
2
screw
(BVTP3
×
10
)
1
two screws
(case 3 TP2)
2
two screws
(BVTT3
×
6)
3
claw
3
claw
4
front panel ass’y
1
flat wire
(CN132)
1
flat wire
(CN131)
