SECTION 4
EXPLODED VIEWS
Note:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviations
CH : Chinese MY : Malaysia
SP : Singapore TH : Thai
IA : Indonesian KR : Korean
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
— 33 —

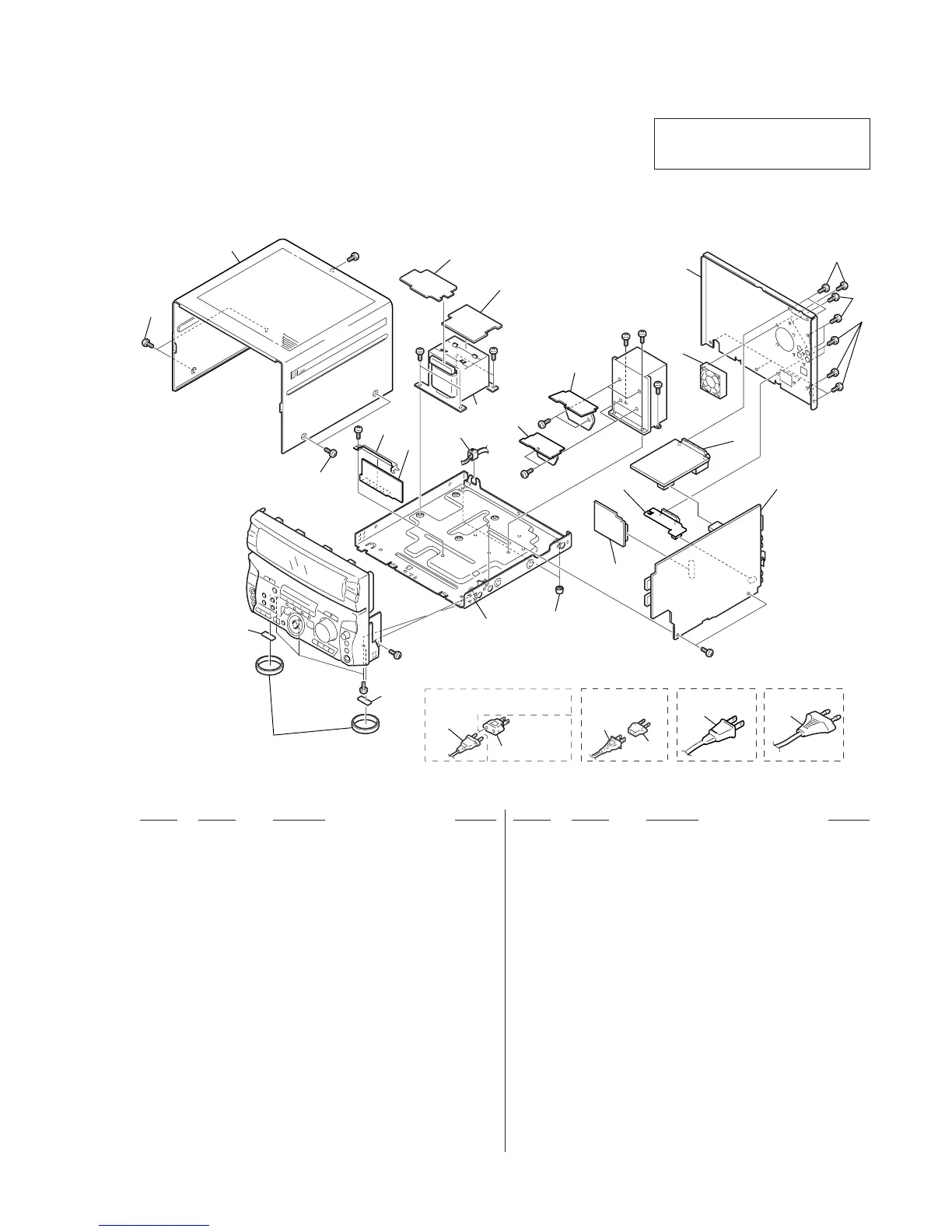

4-1. MAIN SECTION
1 3-363-099-11 SCREW (CASE 3 TP2)
* 2 4-991-364-11 CASE
* 3 1-666-059-11 SEC BOARD
* 4 1-666-069-11 PRI BOARD
* 5 A-4398-466-A SURROUND AMP BOARD,COMPLETE
(MY,SP,KR,CH)
* 5 A-4403-217-A SURROUND AMP BOARD,COMPLETE (TH)
* 5 A-4403-699-A SURROUND AMP BOARD,COMPLETE (IA)
6 1-233-545-21 ENCAPSULATED COMPONENT (TH,KR)
6 1-233-546-21 ENCAPSULATED COMPONENT (EXCEPT TH)
* 7 1-666-070-11 AMP-A BOARD
* 8 4-991-361-41 PANEL (VCD), BACK (MY,SP)
* 8 4-991-361-51 PANEL (VCD), BACK (CH)
* 8 4-991-361-61 PANEL (VCD), BACK (TH)
* 8 4-991-361-71 PANEL (VCD), BACK (IA)
* 8 4-991-361-81 PANEL (VCD), BACK (KR)
* 9 A-4403-282-A MAIN BOARD,COMPLETE (MY,SP,KR,CH)
* 9 A-4403-694-A MAIN BOARD,COMPLETE (IA)
* 9 A-4403-704-A MAIN BOARD,COMPLETE (TH)
10 4-970-381-11 FOOT (REAR)
* 11 3-703-244-00 BUSHING (2104), CORD (TH,IA)
11 3-703-571-11 BUSHING (S) (4516), CORD (MY,SP,KR,CH)
! 12 1-751-326-31 CORD, POWER (TH)
! 12 1-777-071-21 CORD, POWER (MY,SP)
! 12 1-782-315-11 CORD, POWER (IA)
! 12 1-769-079-21 CORD, POWER (KR)
! 12 1-782-464-21 CORD, POWER (CH)
! 13 1-569-007-11 ADAPTOR, CONVERSION 2P (IA)
! 13 1-569-008-21 ADAPTOR, CONVERSION 2P (MY,SP)
* 14 A-4403-284-A KEY-CON BOARD,COMPLETE (MY,SP,KR,CH)
* 14 A-4403-700-A KEY-CON BOARD,COMPLETE (IA)
* 14 A-4403-707-A KEY-CON BOARD,COMPLETE (TH)
15 4-977-358-11 CUSHION
* 16 A-4398-997-A SUPPLY,POWER BOARD,COMPLETE
(MY,SP,KR,CH)
* 16 A-4403-693-A SUPPLY,POWER BOARD, COMPLETE (IA)
* 17 1-666-071-11 SUR BOARD
M601 1-698-792-11 FAN, DC
! T901 1-431-363-11 TRANSFORMER, POWER
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
IA,TH MODEL
CH MODEL
MY, SP MODEL
MY, SP
MODEL
12
13
12
13
12
KR MODEL
12
17
14
6
10
15
15
#3
#3
not supplied
9
#3
5
7
11
3
16
1
1
2
#1
#2 #2
#2
not
supplied
T901
#5
#5
4
8
#4
#4
#4
M601
#3
#3
#3
not supplied
