Sony STR-V7700 - Panel Section Exploded View and Parts

— 34 —

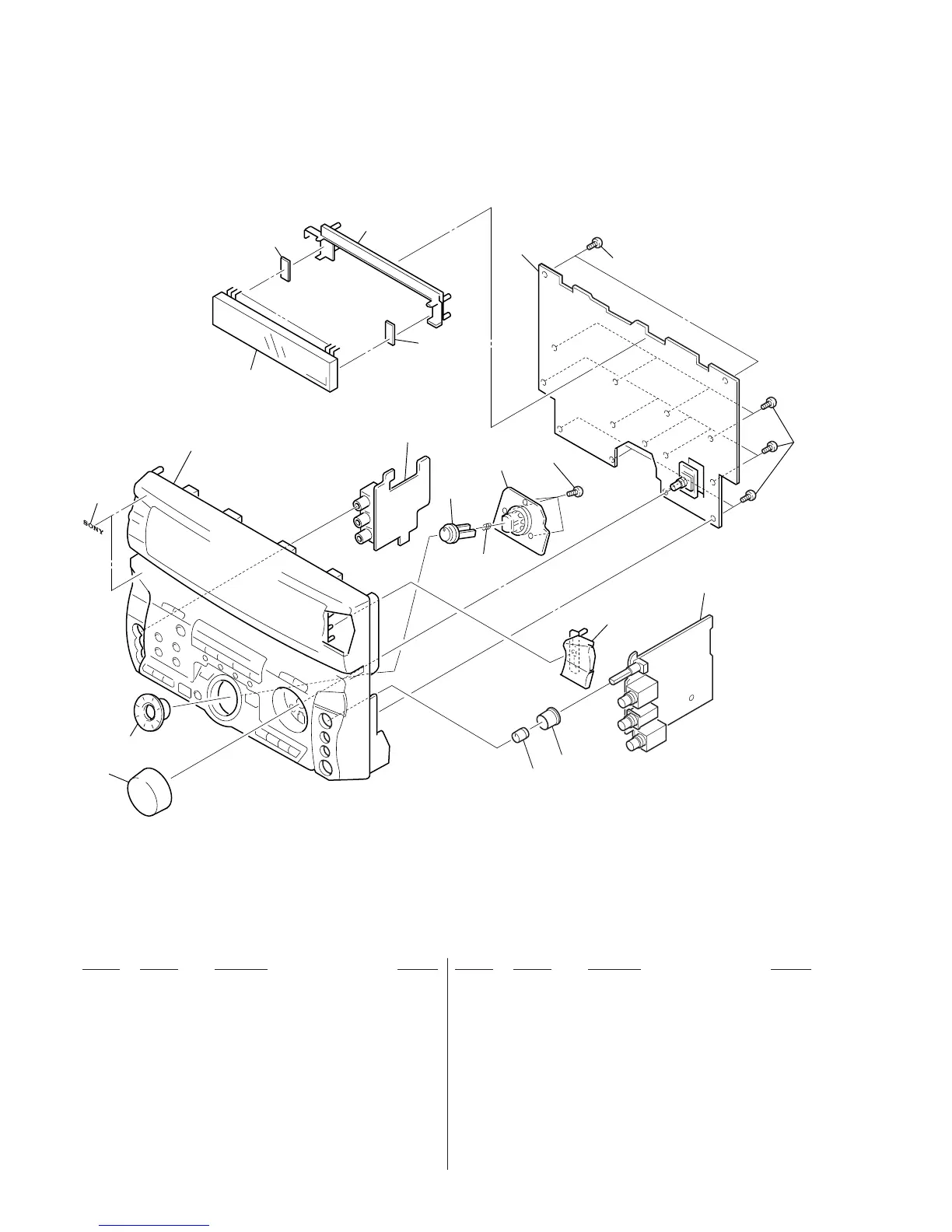

4-2. PANEL SECTION
51 4-991-318-01 KNOB (VOL)
52 4-991-326-01 KNOB (CENTER)
53 4-991-317-01 KNOB (JOG)
55 X-4948-896-1 PANEL ASSY, FRONT
56 4-962-708-11 EMBLEM (4-A), SONY
57 X-4948-612-1 DISPLAY ASSY, BUTTON
58 4-932-810-11 CUSHION(FL)
59 4-986-870-01 HOLDER,FL TUBE
* 60 1-666-060-11 AVIN BOARD
* 61 1-666-062-11 JOG BOARD
62 X-4948-611-1 BUTTON (E/N) ASSY
63 4-984-085-01 SPRING (ENTER), COMPRESSION
* 64 A-4403-285-A PANEL BOARD,COMPLETE (MY,SP,KR,CH)
* 64 A-4403-701-A PANEL BOARD,COMPLETE (IA)
* 64 A-4403-708-A PANEL BOARD,COMPLETE (TH)
65 4-951-620-01 SCREW (2.6X8), +BVTP
* 66 A-4403-207-A MIC ECHO BOARD, COMPLETE (MY,SP,KR,CH)
* 66 A-4403-689-A MIC ECHO BOARD, COMPLETE (IA)
* 66 A-4403-706-A MIC ECHO BOARD, COMPLETE (TH)
67 4-991-327-01 KNOB (CONTROL)
FL501 1-517-618-11 INDICATOR TUBE, FLUORESCENT
