Sony TA-AX390 User Manual

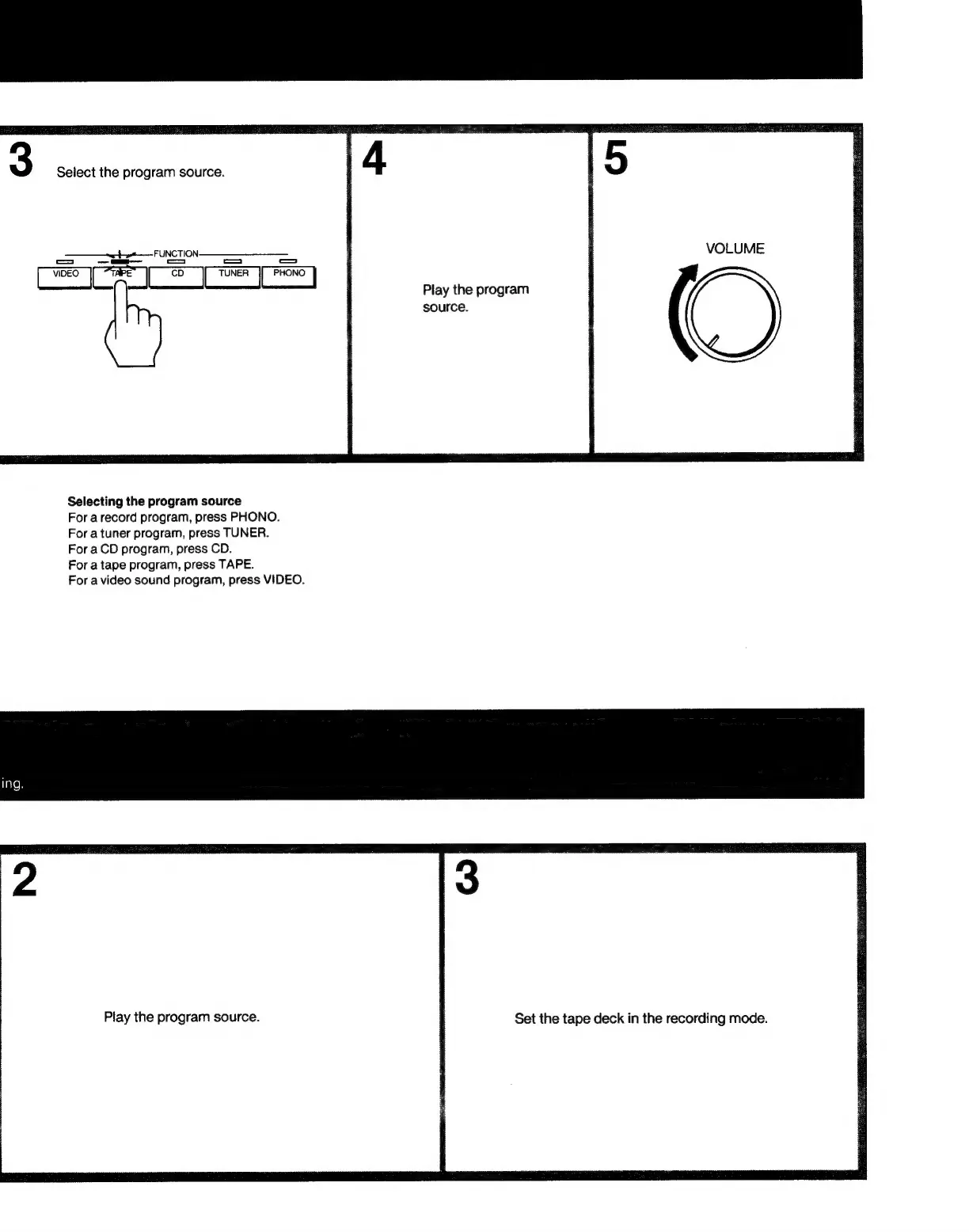

3 Select the program source.
nt
FUNCTION
VOLUME
[ new} ~ Ls] 3 oa
Play the program
source.
Selecting the program source
For arecord program, press PHONO.
For a tuner program, press TUNER.
For aCD program, press CD.
For a tape program, press TAPE.
For a video sound program, press VIDEO.
Play the program source. Set the tape deck in the recording mode.

Sony TA-AX390 Specifications

Power

power output	135 watts per channel minimum RMS power
total harmonic distortion	0.9%
power requirements	120 V AC, 60 Hz
power consumption	235 W

Audio

graphic equalizer boost/cut range 100 Hz, 330 Hz, 1 kHz, 3.3 kHz	+8 dB
graphic equalizer boost/cut range 10 kHz	+6 dB
frequency response PHONO	RIAA equalization curve
frequency response TUNER, CD, VIDEO, TAPE	30 Hz - 30 kHz +3 dB

Physical Characteristics

dimensions	Approx. 430 x 130 x 355 mm (w/h/d)
weight	Approx. 8.5 kg
