Sony TA-AX390 User Manual

'@royalatsvey (le) acy

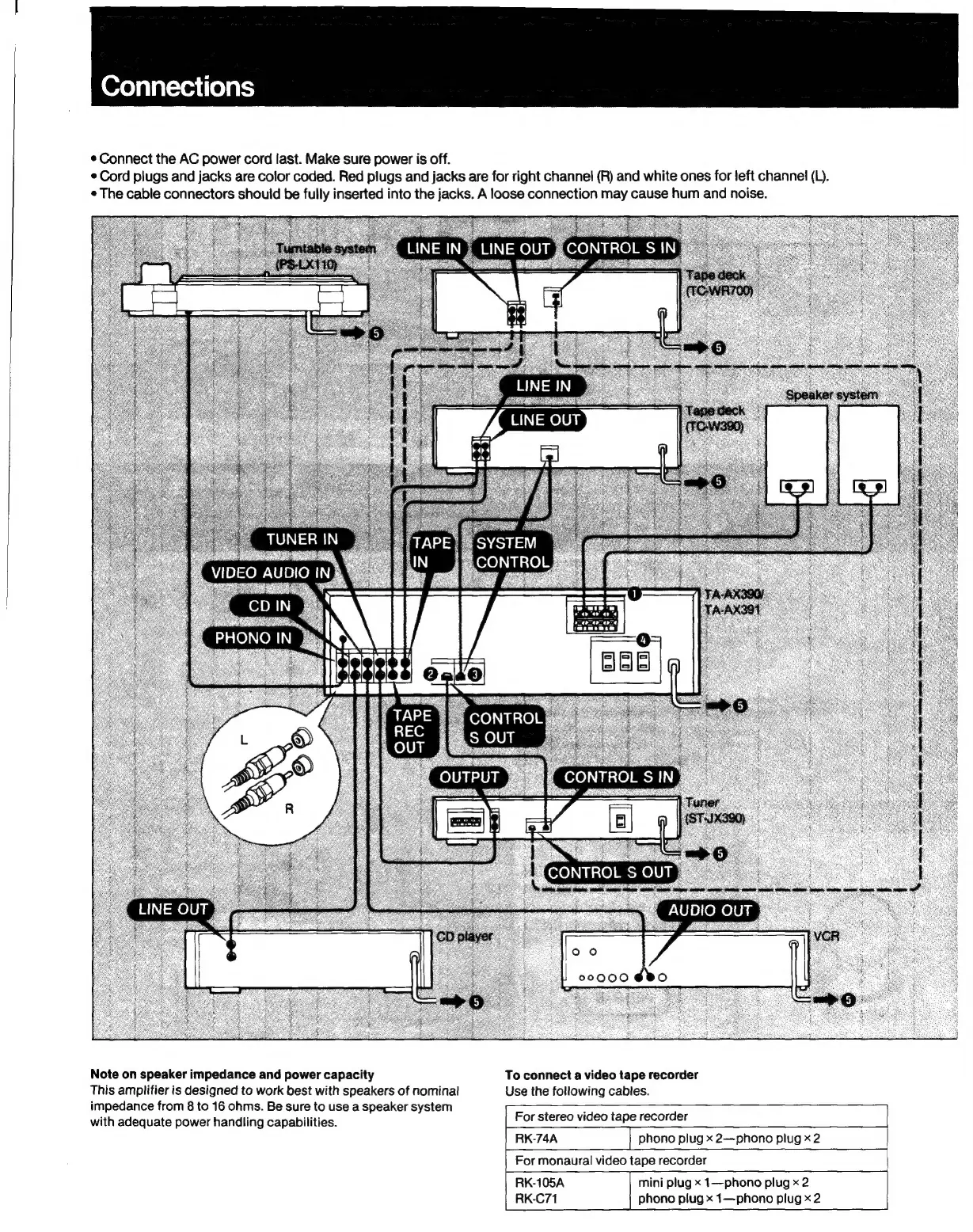

¢ Connect the AC power cord last. Make sure power is off.
* Cord plugs and jacks are color coded. Red plugs and jacks are for right channel (R) and white ones for left channel (L).
© The cable connectors should be fully inserted into the jacks. A loose connection may cause hum and noise.
Note on speaker impedance and power capacity
This amplifier is designed to work best with speakers of nominal
impedance from 8 to 16 ohms. Be sure to use a speaker system
with adequate power handling capabilities.
(CONTROL S OUT
To connect a video tape recorder
Use the following cables.
For stereo video tape recorder
phono plug x 2—phono plug x 2
For monaural video tape recorder
mini plug x 1—phono plug x 2
phono plug x 1— phono plug x 2

Sony TA-AX390 Specifications

Power

power output	135 watts per channel minimum RMS power
total harmonic distortion	0.9%
power requirements	120 V AC, 60 Hz
power consumption	235 W

Audio

graphic equalizer boost/cut range 100 Hz, 330 Hz, 1 kHz, 3.3 kHz	+8 dB
graphic equalizer boost/cut range 10 kHz	+6 dB
frequency response PHONO	RIAA equalization curve
frequency response TUNER, CD, VIDEO, TAPE	30 Hz - 30 kHz +3 dB

Physical Characteristics

dimensions	Approx. 430 x 130 x 355 mm (w/h/d)
weight	Approx. 8.5 kg
