Sony TA-EX880 - GENERAL

– 3 –
SECTION 2
GENERAL

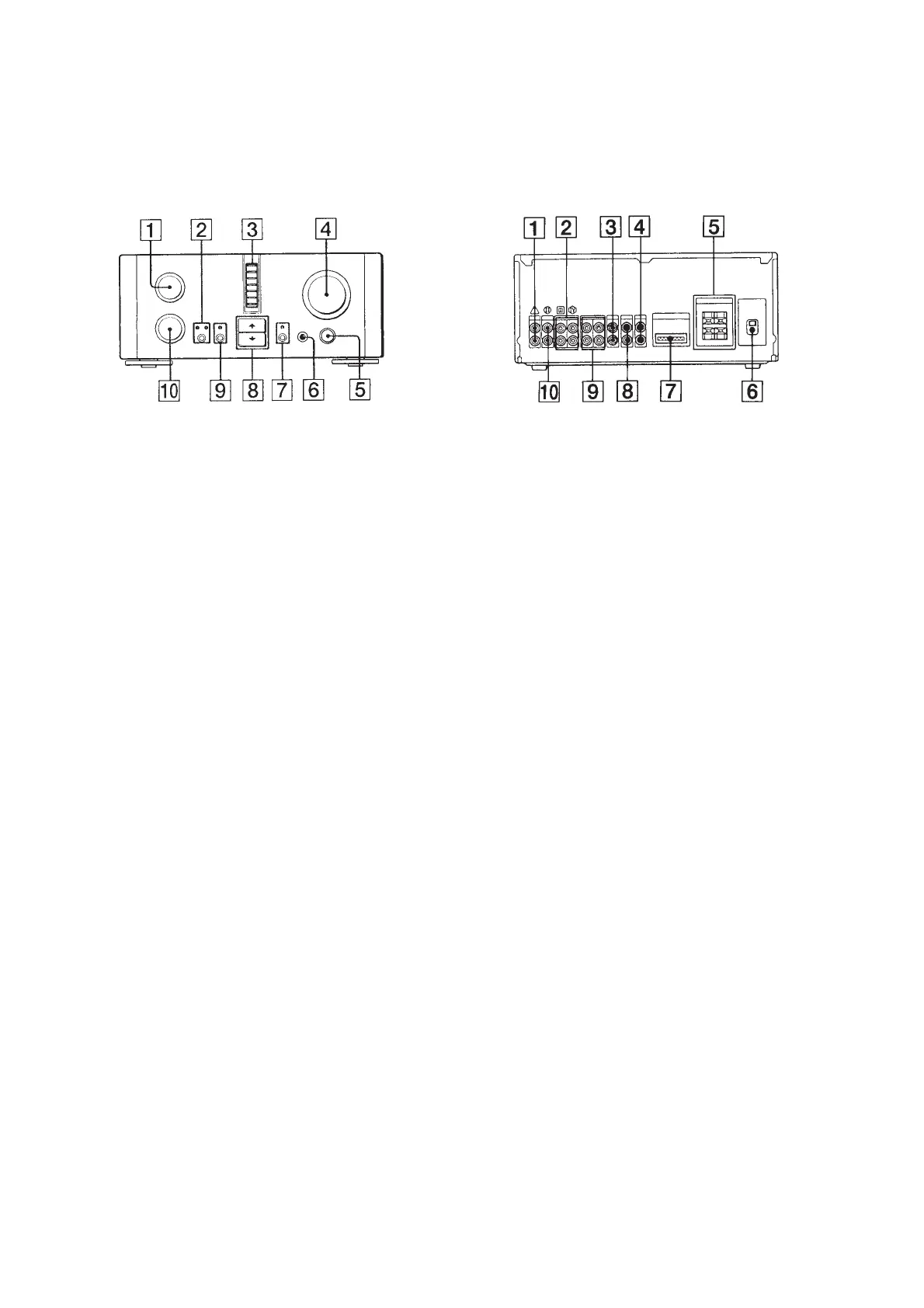

• LOCATION OF CONTROLS
– Front Panel –
1 TREBLE control knob
2 DBFB button, LOW/HIGH indicator
3 FUNCTION (TUNER, CD, MD, TAPE, CS/BS, LD/DVD,
VIDEO) indicator (TA-MS717)
FUNCTION (TUNER, CD, MD, TAPE, VIDEO1, VIDEO2,
VIDEO3) indicator (TA-EX880)
4 VOLUME control knob
5 BALANCE control knob
6 PNONES jack
7 –20dB MUTING button and indicator
8 FUNCTION
>/. button
9 SOURCE DIRECT button and indicator
0 BASS control knob
1 TUNER IN jack
2 MD IN/OUT jack
3 CS/BS IN jack (TA-MS717)
VIDEO1 IN jack (TA-EX880)
4 VIDEO IN jack (TA-MS717)
VIDEO3 IN jack (TA-EX880)
5 SPEAKER terminal
6 Power cord
7 SYSTEM CONTROL terminal
8 LD/DVD IN jack (TA-MS717)
VIDEO2 IN jack (TA-EX880)
9 TAPE IN/OUT jack
0 CD IN jack
– Rear Panel –
