Sony TA-FE200 - Chassis Assembly

– 14 –

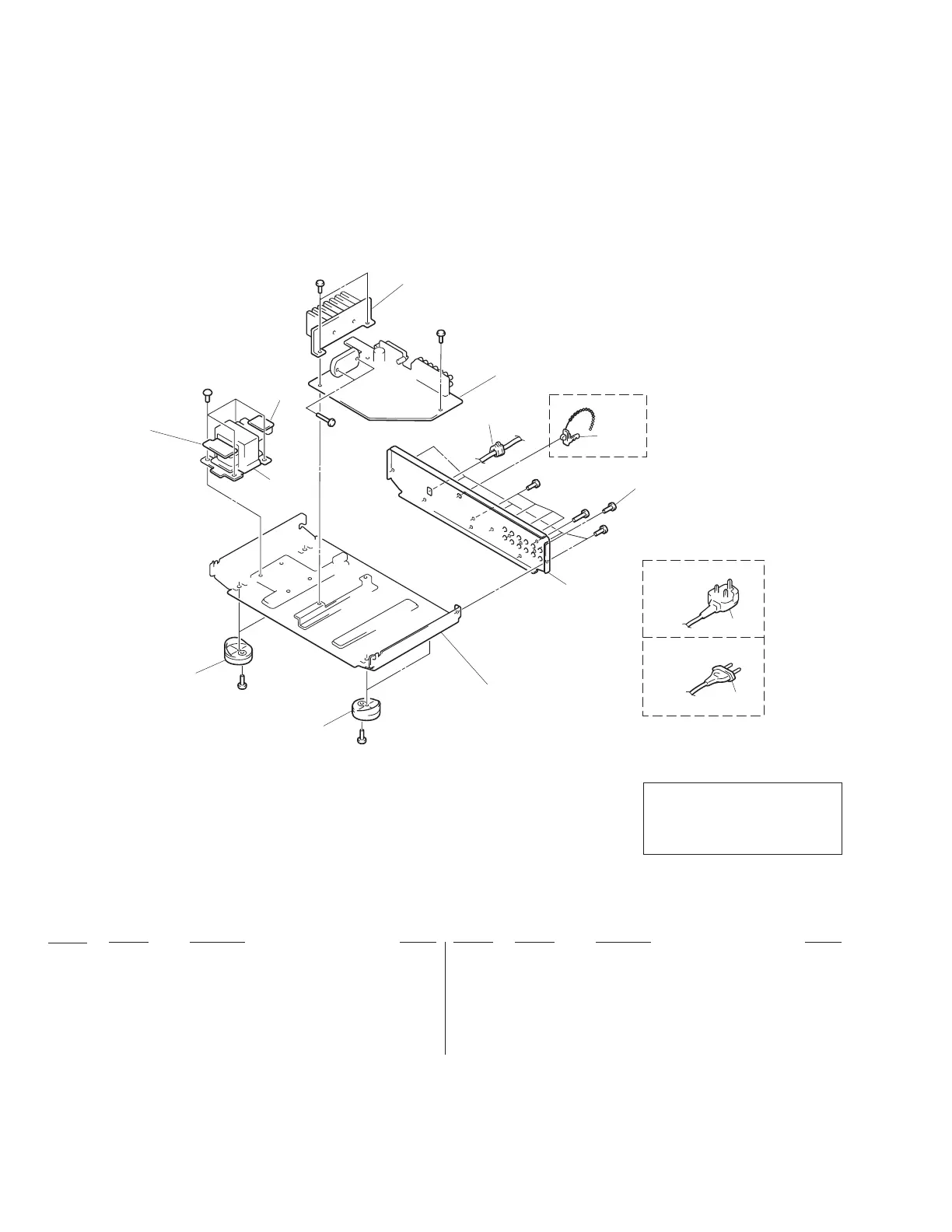

(2) CHASSIS SECTION
The components identified by mark
! or dotted line with mark ! are criti-
cal for safety.
Replace only with part number speci-
fied.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4947-207-1 FOOT ASSY (F50150S)
* 52 1-659-954-11 AC IN BOARD
* 53 1-659-955-11 CN DC BOARD
* 54 A-4389-374-A MAIN BOARD, COMPLETE
* 55 3-703-244-00 BUSHING (2104), CORD
56 4-956-370-02 BAND, PLUG FIXED (UK)
57 3-704-515-11 SCREW (BV/RING)
* 58 4-980-202-01 PANEL, BACK (AEP, German)
* 58 4-980-202-11 PANEL, BACK (UK)
! CP1 1-575-651-21 CORD, POWER (AEP, German)
! CP1 1-696-586-11 CORD, POWER (UK)
!T1 1-429-447-11 TRANSFORMER, POWER
#1
#1
#1
not supplied
T1
#3
#1
#1
#1
#2
51
51
58
57
55
54
AEP, German
UK
CP1
CP1
UK
56
#4
53
52
not supplied
(including r A)
