— 19 —
SECTION 4
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
G : German model
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number speci-
fied.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-4946-920-1 KNOB (VOL) ASSY
2 X-4947-025-1 FOOT ASSY
3 4-980-766-21 PANEL, FRONT
4 4-980-775-01 LENS, LED
5 4-980-771-01 KNOB (DIA. 47) (SELECTOR)
6 4-980-204-01 KNOB (DIA. 24) (TONE)
7 4-965-651-01 EMBLEM (MOS)
8 4-979-587-01 EMBLEM, SONY
9 X-4946-923-1 PANEL ASSY, BASE
10 4-980-773-01 BUTTON (DIA. 6) (EON)
* 11 1-660-566-11 EON BOARD
12 4-980-776-01 WINDOW, REMOTE CONTROL
* 13 1-662-376-11 HP BOARD
* 14 1-660-562-11 LED BOARD
* 15 A-4389-795-A PANEL BOARD, COMPLETE
* 16 1-660-565-11 VOL BOARD
* 17 1-660-564-11 SP SW BOARD
18 4-980-199-01 BUTTON (POWER)
* 19 1-660-567-11 PRO IND BOARD
20 3-704-366-01 SCREW (CASE) (M3X8)
21 4-979-945-41 CASE (412032)
22 4-967-961-01 SCREW (3X8)
23 4-951-620-01 SCREW (2.6X8), +BVTP
24 7-682-548-04 SCREW +BVTT 3X8 (S)
! S1 1-554-920-11 SWITCH, PUSH (AC POWER)(1 KEY)(POWER)

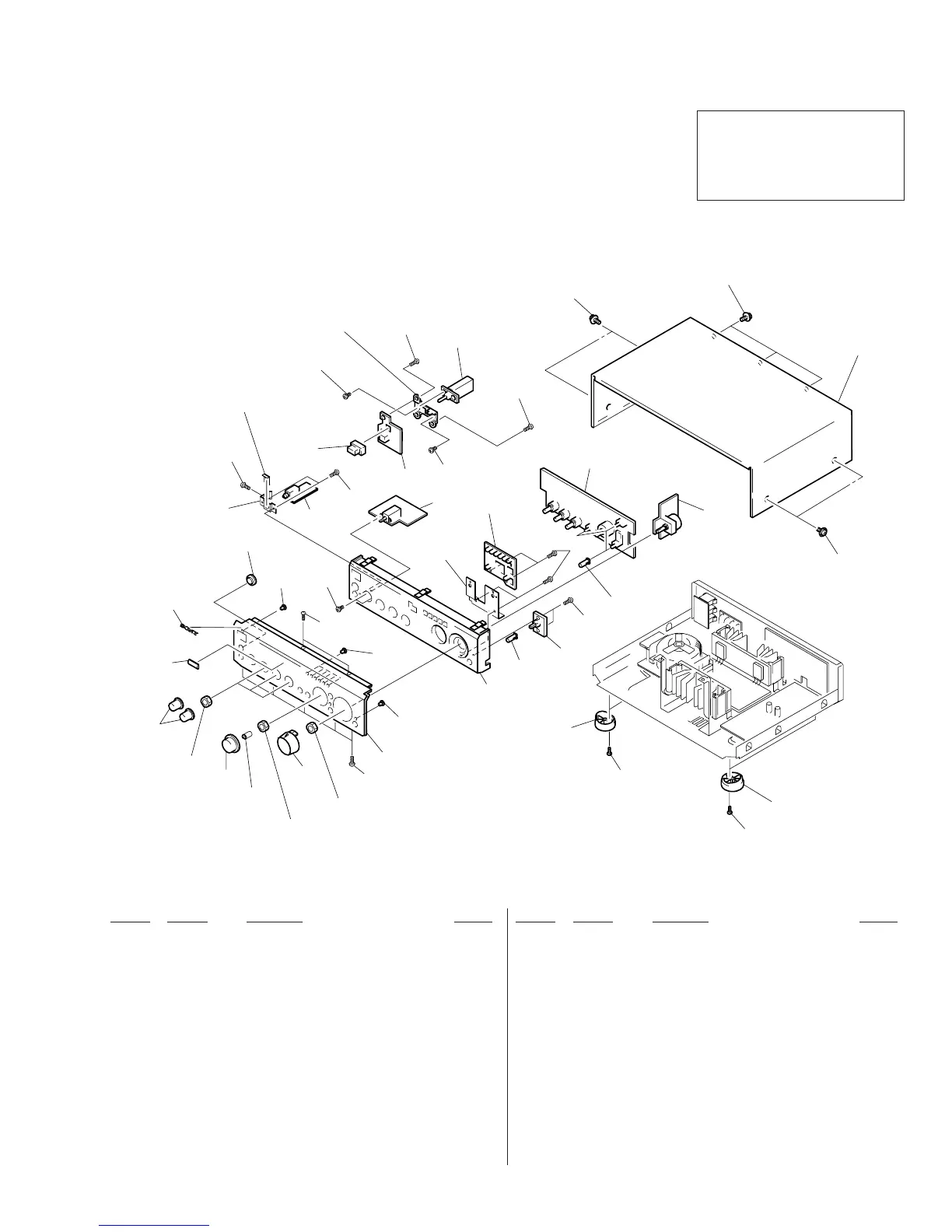

4-1. FRONT PANEL SECTION
1
2
2
3
4
4
4
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
20
20
21
23
23
23
23
23
24
24
22
22
22
22
22
5
Supplied with RV203
Supplied with
S901
not supplied
not supplied
not supplied
S1
24
Supplied with J701
not supplied
Supplied with
RV200, RV201,
RV203
To Next Page
