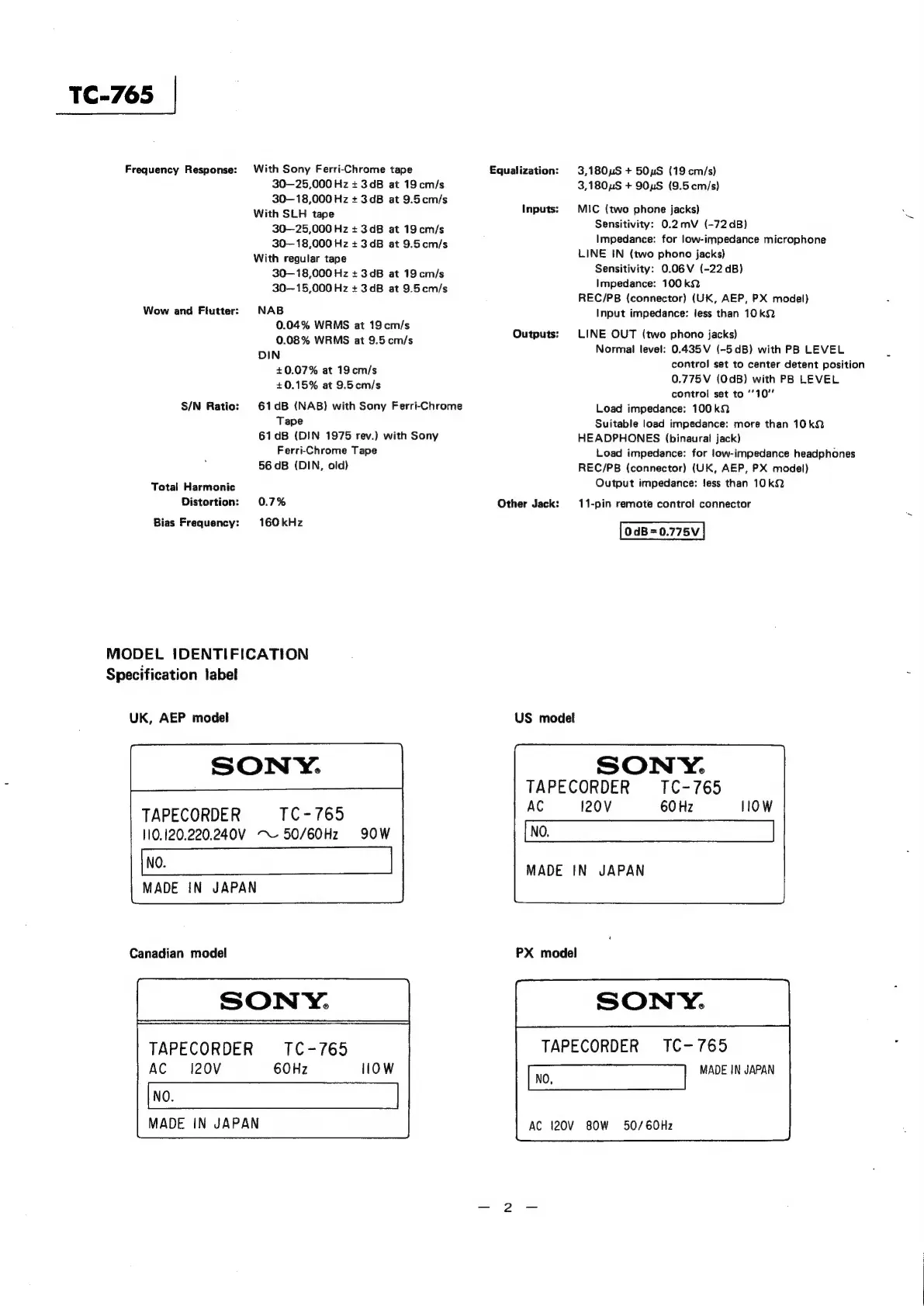

Sony TC-765 - Performance Specifications; Electrical Performance Metrics; Input;Output and Model Details

TC-765
Frequency Response: With Sony Ferri-Chrome tape Equalization:
30—25,000 Hz + 3dB at 19 cm/s
30—18,000 Hz + 3dB at 9.5cm/s
With
SLH
tape
Inputs:
30—25,000 Hz + 3dB at 19 cm/s
30—18,000 Hz + 3dB at 9.5cm/s
With regular tape
30—18,000 Hz + 3dB at 19 cm/s
30—15,000 Hz + 3dB at 9.5cm/s
Wow and Flutter: NAB
0.04% WRMS at 19 cm/s
0.08%
WRMS
at
9.5
cm/s
Outputs:
DIN
40.07% at 19cm/s
+0.15% at 9.5cm/s
S/N Ratio: 61dB (NAB) with Sony Ferri-Chrome
Tape
61d8 (DIN 1975 rev.) with Sony
Ferri-Chrome Tape
56 dB (DIN, old)
Total Harmonic
Distortion: 0.7% Other Jack:
Bias Frequency: 160 kHz
MODEL IDENTIFICATION
Specification label
UK, AEP model US model
TAPECORDER TC-765
110.120.220.240V ~~ 50/60Hz 90W
MADE IN JAPAN
Canadian model PX model
TAPECORDER TC-765
AC 120V 60Hz HOW
MADE IN JAPAN
3,180uS + 50uS (19 cm/s)
3,180uS + 90uS (9.5 cm/s)
MIC (two phone jacks)
Sensitivity: 0.2mV (-72dB)
Impedance: for low-impedance microphone
LINE IN (two phono jacks)
Sensitivity: 0.06V (-22 dB)
Impedance: 100 kQ
REC/PB (connector) (UK, AEP, PX model)
Input impedance: less than 10k
LINE OUT (two phono jacks)
Normal level: 0.435V (-5 dB) with PB LEVEL
contro! set to center detent position
0.775V (OdB) with PB LEVEL
control set to ‘10’
Load impedance: 100k
Suitable load impedance: more than 10kQ
HEADPHONES (binaural jack)
Load impedance: for low-impedance headphones
REC/PB (connector) (UK, AEP, PX model)
Output impedance: Jess than 10kQ
11-pin remote control connector
0dB=0.775V
SON'Y.
TAPECORDER TC-765
AC
I20V 60 Hz HOW
MADE IN JAPAN
TAPECORDER TC-765
AC I20V 80W 50/60Hz
