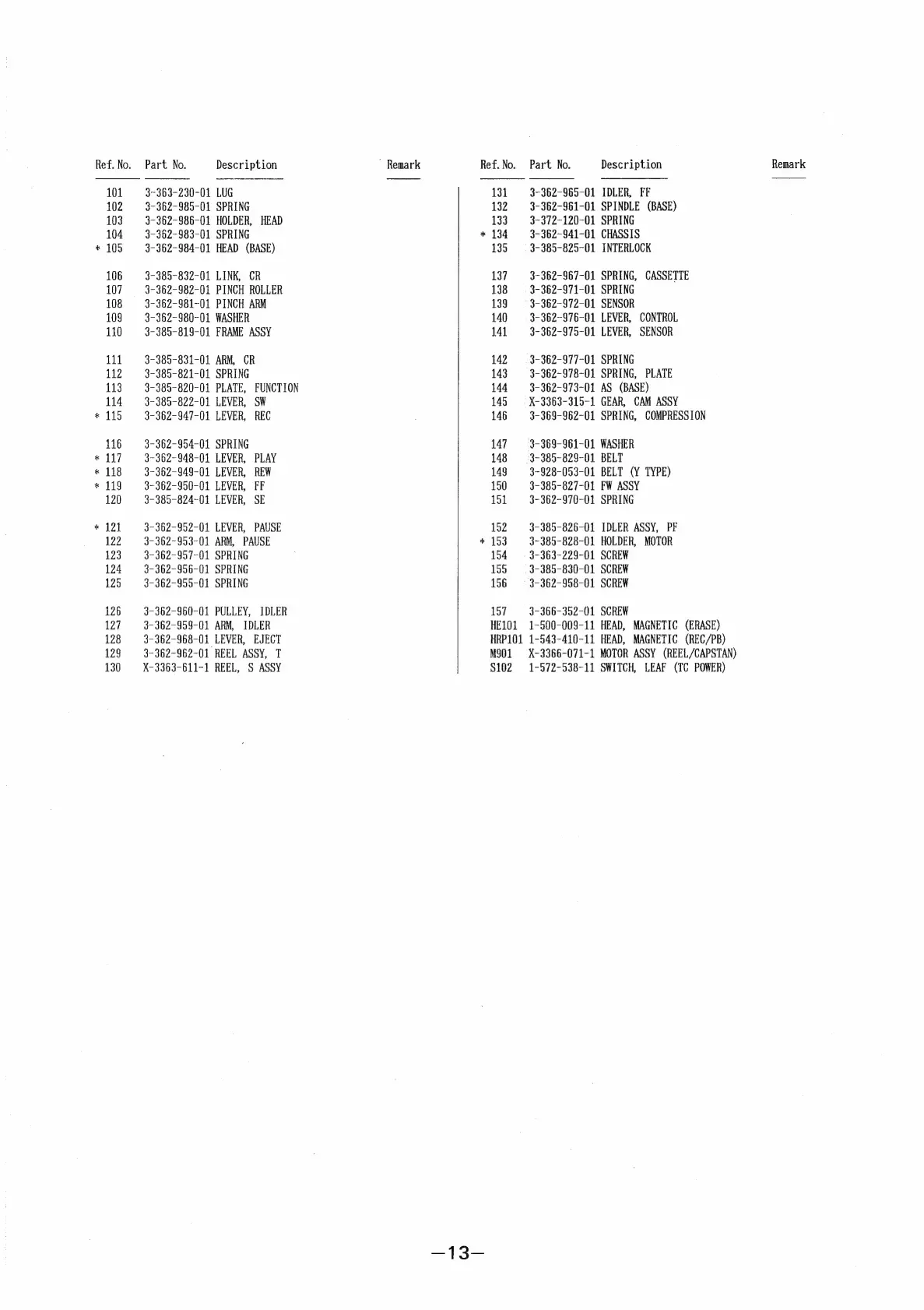

Sony TCM-939 - Page 10

Ref. No.
*
101
102
103
104
105
121
125
126
127
128
129
130
Part No. Description ~ Remark
3~363-230-01 LUG
3-362-985-01 SPRING
3-362-986-01 HOLDER, HEAD
3-362-983-01 SPRING
3-362-984-01 HEAD (BASE)
3-385-832-01 LINK, CR
3-362-982-01 PINCH ROLLER
3-362-981-01 PINCH ARM
3-362-980-01 WASHER
3-385-819-01 FRAME ASSY
3-385-831-01 ARM, CR
3-385-821-01 SPRING
3-385-820-01 PLATE, FUNCTION
3-385-822-01 LEVER, SW
3-362-947-01 LEVER, REC
3-362-954-01 SPRING
3-362-948-01 LEVER, PLAY
3-362-949-01 LEVER, REW
3-362-950-01 LEVER, FF
3-385-824-01 LEVER, SE
3-362-9$52-01 LEVER, PAUSE
3-362-953-01 ARM, PAUSE
3-362-957-01 SPRING
3-362-956-01 SPRING
3-362-955-01 SPRING
3-362-960-01 PULLEY, IDLER
3-362-959-01 ARM, IDLER
3-362-968-01 LEVER, EJECT
3-362-962-01 REEL ASSY, T
X-3363-611-1 REEL, S ASSY
Ref. No. Part No. Description Remark
*
131. = 3-362-965-01 IDLER, FF
132 3-362-961-01 SPINDLE (BASE)
133. 3-372-120-01 SPRING
134 3-362-941-01 CHASSIS
135. = 3-385-825-01 INTERLOCK
137: 3-362-967-01 SPRING, CASSETTE
138 = 3-362-971-01 SPRING
139 = 3-362-972-01 SENSOR
140 = 3-362-976-01 LEVER, CONTROL
141. = 3-362-975-01 LEVER, SENSOR
142 =. 3-362-977-01 SPRING
143. 3-362-978-01 SPRING, PLATE
144 3-362-973-01 AS (BASE)
145 = X-3363-315-1 GEAR, CAM ASSY
146 3-369-962-01 SPRING, COMPRESSION
147 ~—- 3-369-961-01 WASHER
148 =. 3-385-829-01 BELT
149 3-928-053-01 BELT (Y TYPE)
150 = 3-385-827-01 FW ASSY
151 = 3-362-970-01 SPRING
152 3-385-826-01 IDLER ASSY, PF
153 = 3-385-828-01 HOLDER, MOTOR
154 = 3-363-229-01 SCREW
155 = 3-385-830-01 SCREW
156 =. 3-362-958-01 SCREW
157 = 3-366-352-01 SCREW
HE101 1-500-009-11 HEAD, MAGNETIC (ERASE)
HRP101 1-543-410-11 HEAD, MAGNETIC (REC/PB)
M901 _X-3366-071-1 MOTOR ASSY (REEL/CAPSTAN)
$102 1-572-538-11 SWITCH, LEAF (TC POWER)
