Sony TCM-939 - Section 5: Exploded Parts Views; Cabinet Section Exploded View

NOTE:
@ -XX and -X mean standardized parts, so they
may have some difference from the original
one.
@ Color Indication
Example:
KNOB, BALANCE (WHITE)... (RED)
fi t
of Appearance Parts
Parts Color Cabinet’s Color

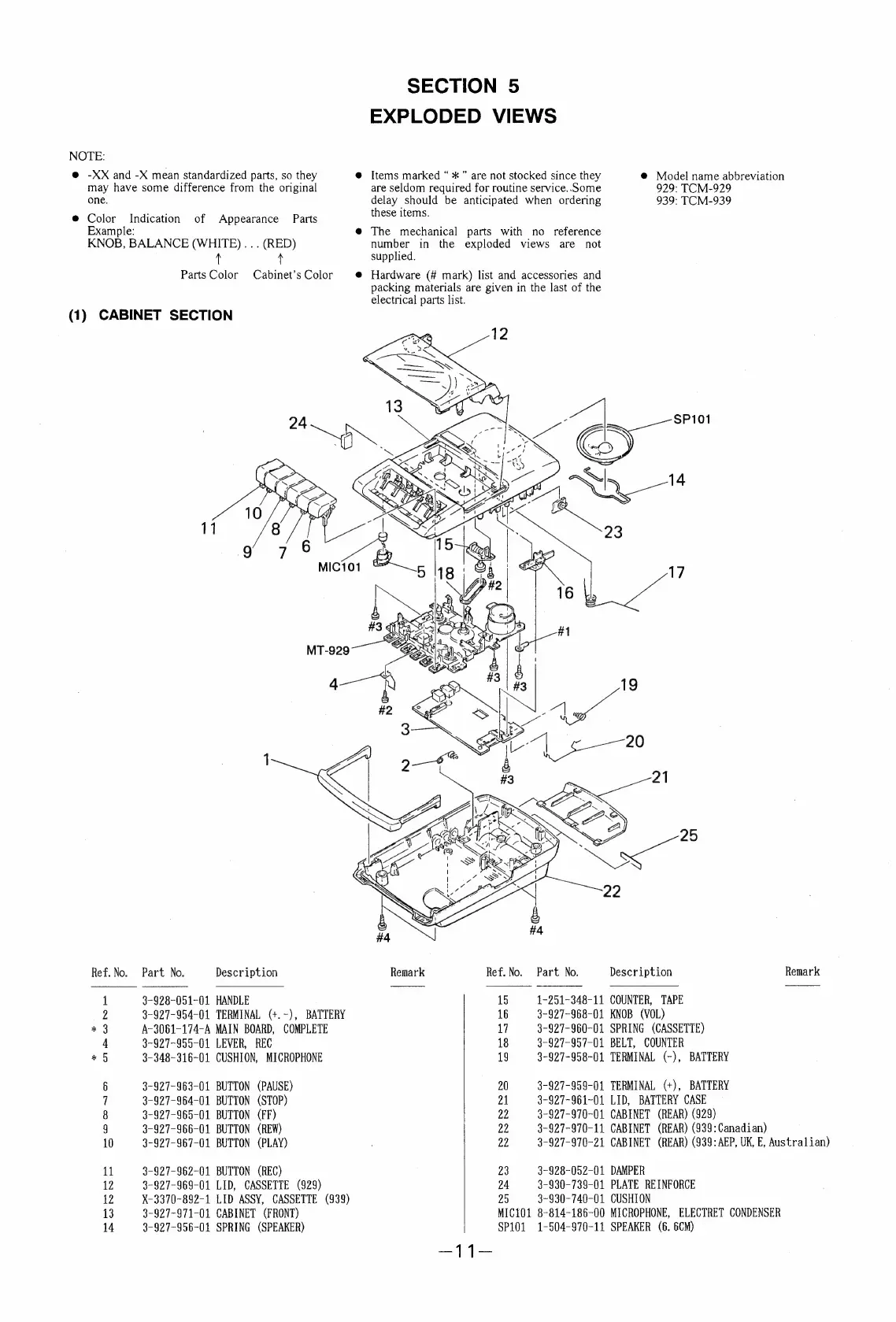

(1) CABINET SECTION
Ref. No. Part No. Description
1 3-928-051-01 HANDLE
2 3-927-954-01 TERMINAL (+.-), BATTERY
* 3 A-3061-174-A MAIN BOARD, COMPLETE
4 3-927-955-01 LEVER, REC
* 5 3-348-316-01 CUSHION, MICROPHONE
6 3-927-963-01 BUTTON (PAUSE)
7 3-927-964-01 BUTTON (STOP)
8 3-927-965-01 BUTTON (FF)
9 3-927-966-01 BUTTON (REW)
10 3-927-967-01 BUTTON (PLAY)
11 3-927-962-01 BUTTON (REC)
12 3-927-969-01 LID, CASSETTE (929)
12 X-3370-892-1 LID ASSY, CASSETTE (939)
13 3-927-971-01 CABINET (FRONT)
14 3-927-956-01 SPRING (SPEAKER)
SECTION 5
EXPLODED VIEWS
@ Items marked “*” are not stocked since they e
are seldom required for routine service..Some
delay should be anticipated when ordering
these items.
@ The mechanical parts with no reference
number in the exploded views are not
supplied.
@ Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
Remark Ref. No. Part No.
15 1-251-348-11 COUNTER,
Model name abbreviation
929: TCM-929
939: TCM-939
Description
TAPE
16 3-927-968-01 KNOB (VOL)
17 3-927-960-01 SPRING (CASSETTE)
23 3-928-052-01 DAMPER
29 3~930-740-01 CUSHION
18 3-927-957-01 BELT, COUNTER
19 3-927-958-01 TERMINAL (-), BATTERY
20 3-927-959-01 TERMINAL (+), BATTERY
21 3-927-961-01 LID, BATTERY CASE
22 3-927-970-01 CABINET (REAR) (929)
22 3-927-970-11 CABINET (REAR) (939: Canadian)
22 3-927-970-21 CABINET (REAR) (939: AEP, UK, E, Australian)
24 3-930-739-01 PLATE REINFORCE
MIC101 8-814-186-00 MICROPHONE, ELECTRET CONDENSER
SP101 1-504-970-11 SPEAKER (6. 6CM)
