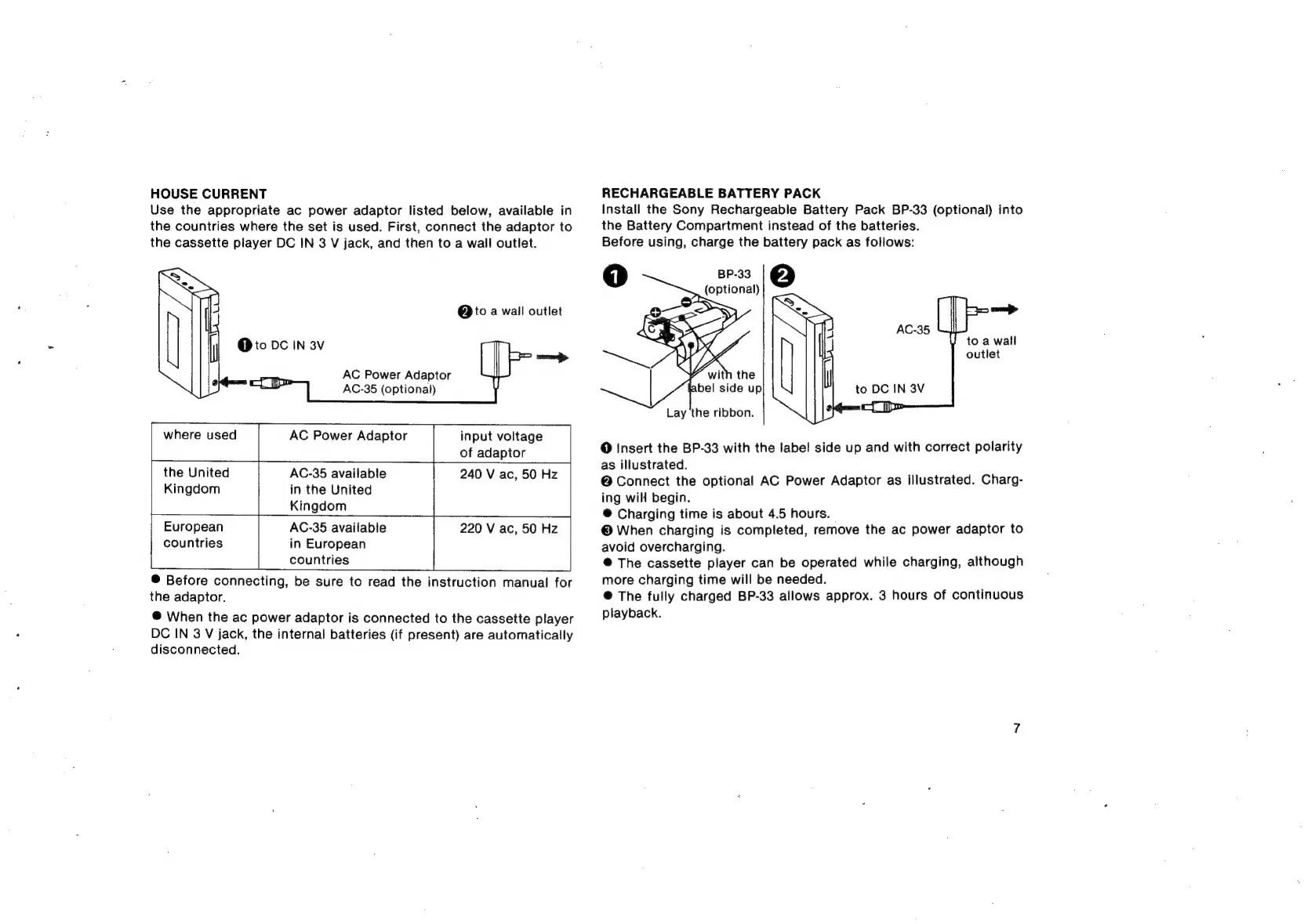

Sony TPS-L2 - Page 7

HOUSE CURRENT
Use the appropriate ac power adaptor listed below, available in
the countries where the set is used. First, connect the adaptor to
the cassette player DC IN 3 V jack, and then to a wall outlet.
os) @ to a wall outlet
fl @to DC IN 3v
AC Power Adaptor
AC-35 (optional)
where used AC Power Adaptor input voltage
of adaptor
the United 240 V ac, 50 Hz
Kingdom
AC-35 available
in the United
Kingdom
AC-35 available
in European
countries
® Before connecting, be sure to read the instruction manual for
the adaptor.
@ When the ac power adaptor is connected to the cassette player
DC IN 3 V jack, the internal batteries (if present) are automatically
disconnected.
European
countries
220 V ac, 50 Hz
RECHARGEABLE BATTERY PACK
Install the Sony Rechargeable Battery Pack BP-33 (optional) into
the Battery Compartment instead of the batteries.
Before using, charge the battery pack as follows:
BP-33 @
(optional)
4 AC-35
to a wall
outlet
to DC IN 3V
Lay the ribbon.
@ Insert the BP-33 with the label side up and with correct polarity
as illustrated.
@ Connect the optional AC Power Adaptor as illustrated. Charg-
ing will begin.
® Charging time is about 4.5 hours.
© When charging is completed, remove the ac power adaptor to
avoid overcharging.
@ The cassette player can be operated while charging, although
more charging time will be needed.
@ The fully charged BP-33 allows approx. 3 hours of continuous
playback.
