— 65 —
KV-27FV16/29FV16/29FV16C/32FS12/32FS16
38
32
31
35
29
33
27
34
40
37
26
22
23
28
21
30
39
24
36
25

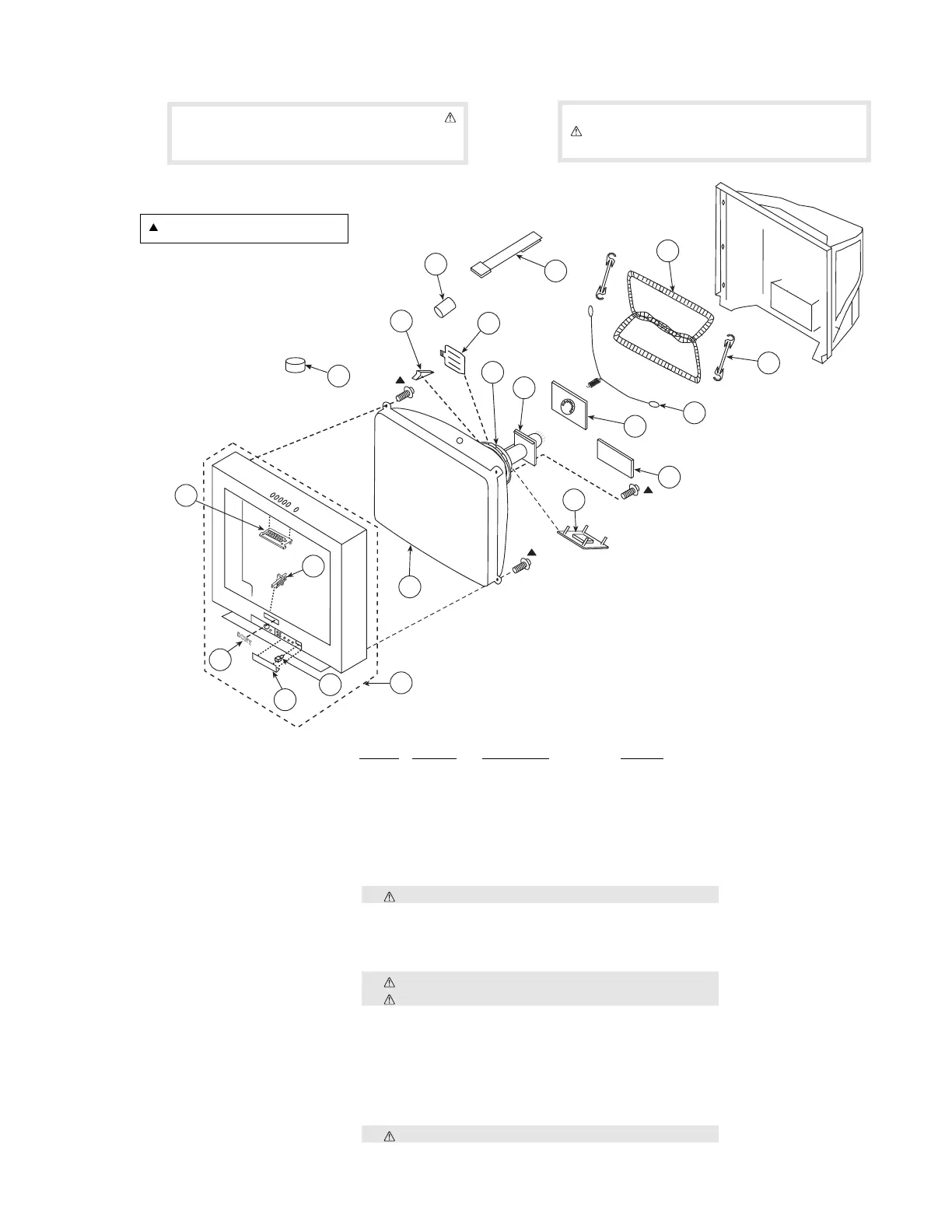

7-4. PICTURE TUBE (KV-32FS12/32FS16 ONLY)
Note: Note:
Les composants identifies per un trame et une marque
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifie.
The components identified by shading and mark
are critical for safety. Replace only with part number
specified.
REF. NO. PART NO. DESCRIPTION REMARK
21 X-4037-664-1 BEZNET ASSY 22-25
22 3-704-179-31 EMBLEM (NO.9), SONY
23 4-075-658-01 DOOR
24 4-047-464-01 CATCHER, PUSH
25 4-075-657-01 GUIDE, LED
26 4-068-982-02 MULTI-BUTTON (TOP)
27 8-735-066-05 CRT 34RSN(SDP)
28 1-452-032-00 MAGNET,DISC
29 4-053-005-01 SPACER, DY
30 2-163-920-01 PLATE, TLH CORRECTION
31 8-451-499-21 DY Y34RSA-X
32 8-453-007-41 NA324-M4
33 1-452-896-11 COIL, NA ROTATION (RT200)
34 * A-1342-549-A VA (VAR) MOUNTED PC BOARD
35 * A-1332-061-A CA (VAR) MOUNTED PC BOARD
36 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
37 4-062-047-01 PIECE A(110), CONV CORRECT
38 4-036-329-01 SPRING (B), TENSION
39 1-416-827-21 COIL, DEGAUSSING
40 4-065-895-03 HOLDER, DGC
4-046-765-12 SCREW (7) TAPPING
