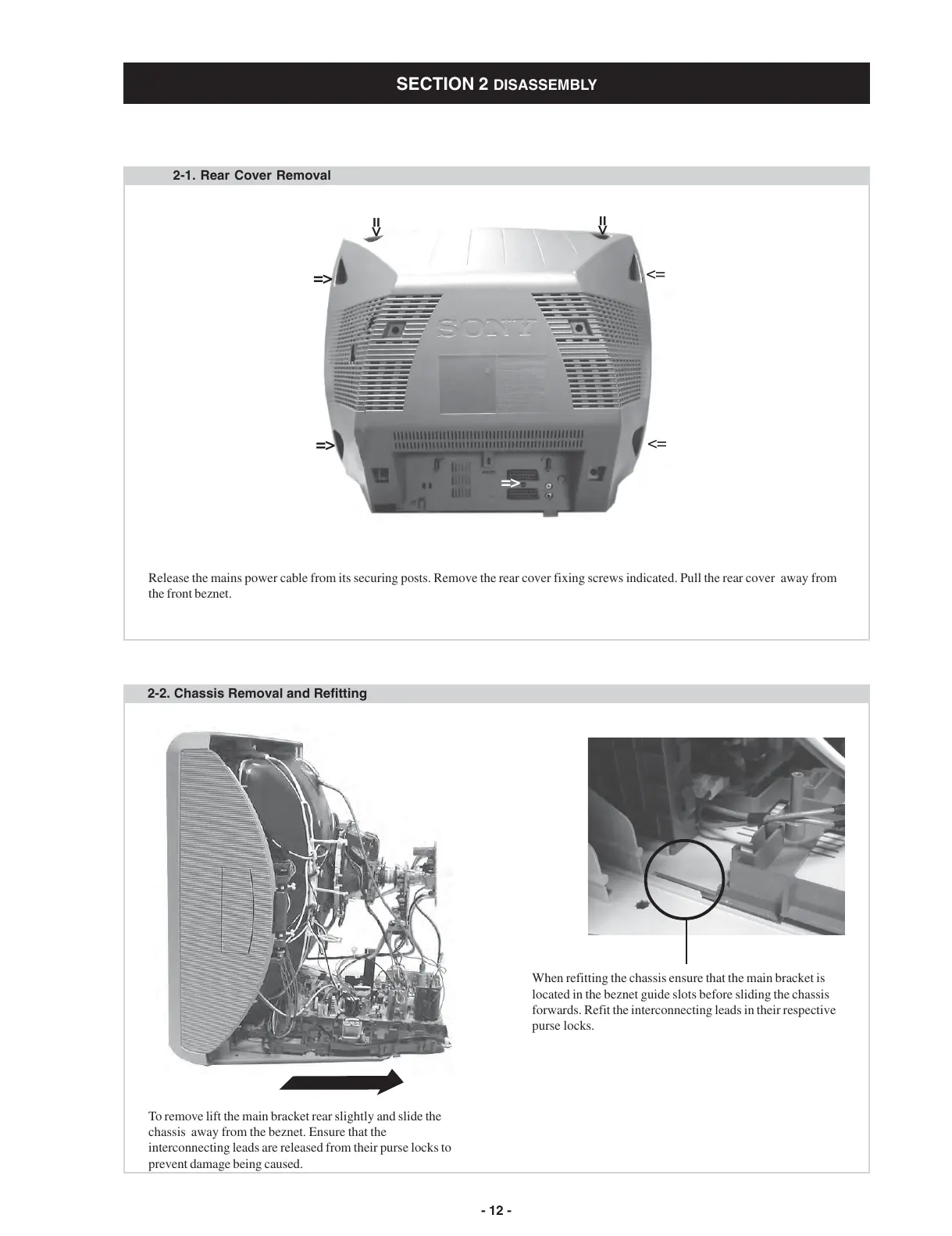

SECTION 2 DISASSEMBLY
2-1. Rear Cover Removal
Release the mains power cable from its securing posts. Remove the rear cover fixing screws indicated. Pull the rear cover away from
the front beznet.
2-2. Chassis Removal and Refitting
To remove lift the main bracket rear slightly and slide the
chassis away from the beznet. Ensure that the
interconnecting leads are released from their purse locks to
prevent damage being caused.
When refitting the chassis ensure that the main bracket is
located in the beznet guide slots before sliding the chassis
forwards. Refit the interconnecting leads in their respective
purse locks.
