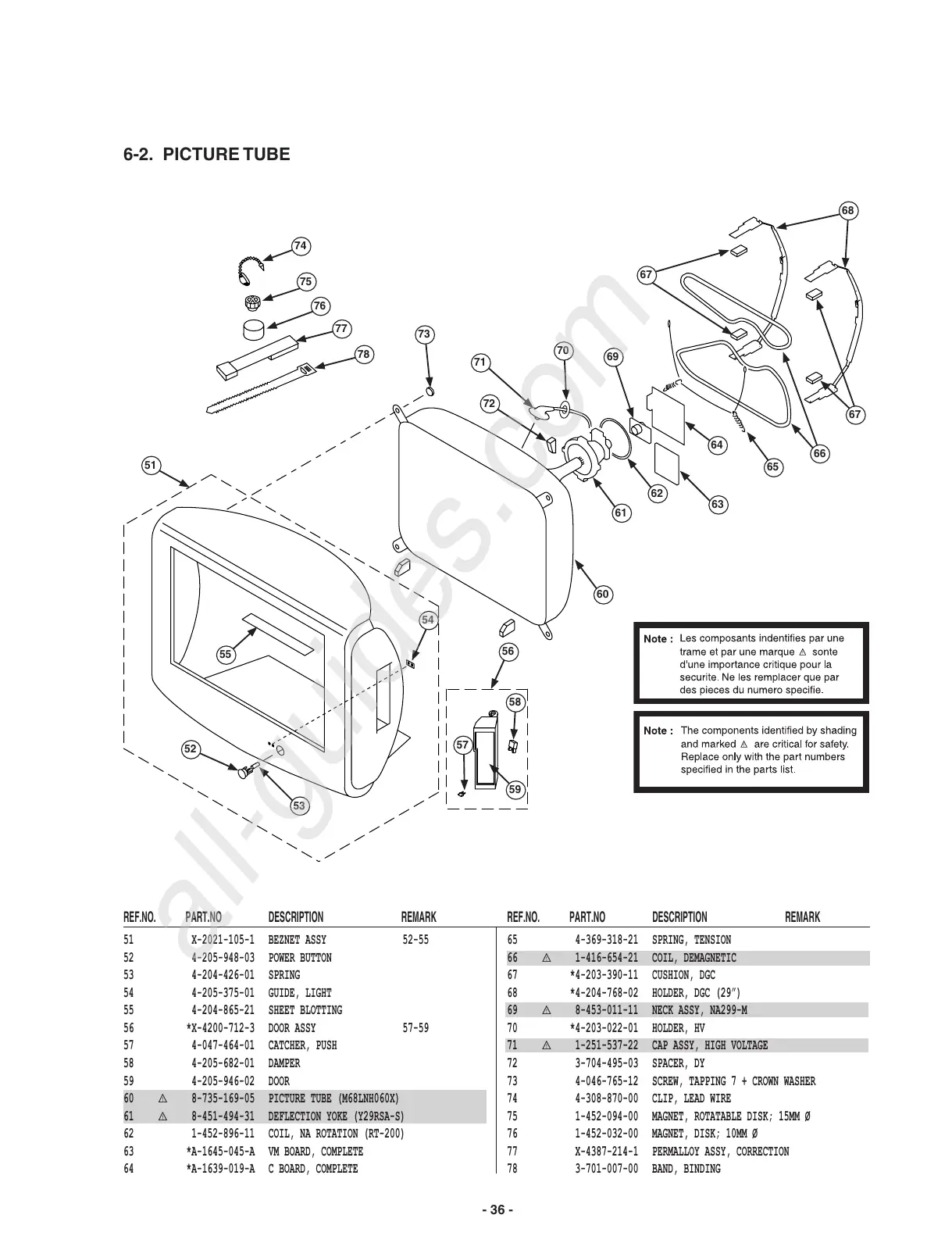

6-2. PICTURE TUBE
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 36 -
51
X-2021-105-1
BEZNET ASSY
52-55
52
4-205-948-03
POWER BUTTON
53
4-204-426-01
SPRING
54
4-205-375-01
GUIDE, LIGHT
55
4-204-865-21
SHEET BLOTTING
56
*X-4200-712-3
DOOR ASSY
57-59
57
4-047-464-01
CATCHER, PUSH
58
4-205-682-01
DAMPER
59
4-205-946-02
DOOR
60 £
8-735-169-05
PICTURE TUBE (M68LNH060X)
61 £
8-451-494-31
DEFLECTION YOKE (Y29RSA-S)
62
1-452-896-11
COIL, NA ROTATION (RT-200)
63
*A-1645-045-A
VM
BOARD, COMPLETE
64
*A-1639-019-A
C BOARD, COMPLETE
65
4-369-318-21
SPRING, TENSION
66 £
1-416-654-21
COIL, DEMAGNETIC
67
*4-203-390-11
CUSHION, DGC
68
*4-204-768-02
HOLDER, DGC (29”)
69 £
8-453-011-11
NECK ASSY, NA299-M
70
*4-203-022-01
HOLDER, HV
71 £
1-251-537-22
CAP ASSY, HIGH VOLTAGE
72
3-704-495-03
SPACER, DY
73
4-046-765-12
SCREW, TAPPING 7 + CROWN WASHER
74
4-308-870-00
CLIP, LEAD WIRE
75
1-452-094-00
MAGNET, ROTATABLE DISK; 15MM Ø
76
1-452-032-00
MAGNET, DISK; 10MM Ø
77
X-4387-214-1
PERMALLOY ASSY, CORRECTION
78
3-701-007-00
BAND, BINDING
67
66
65
64
63
62
61
68
67
51
53
78
77
76
75
74
69
71
72
70
73
56
57
58
59
54
55
52
60
