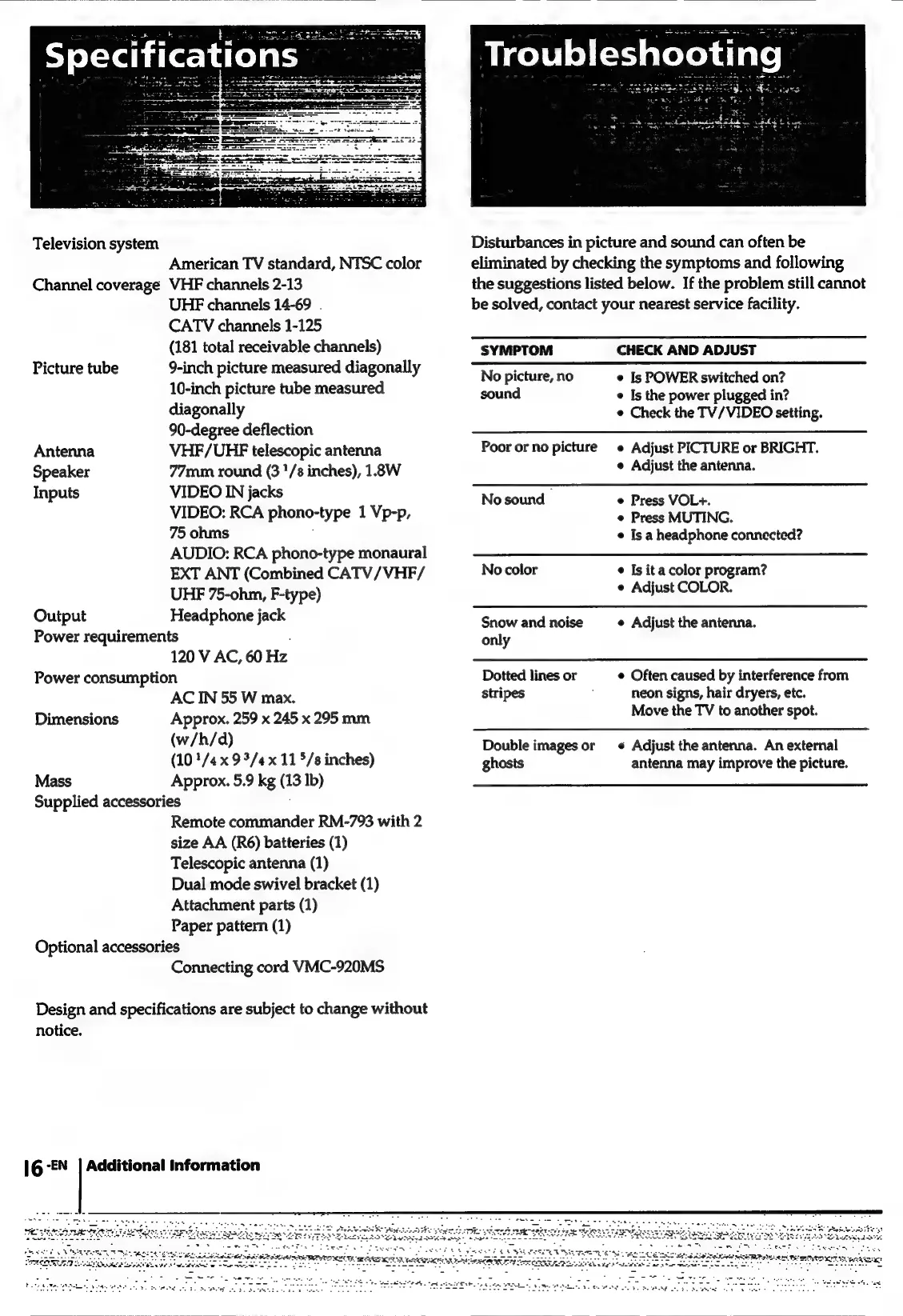

Sony Trinitron KV-9PT40 - TV Specifications; Troubleshooting TV Issues

Television system
American TV standard, NTSC color
Channel coverage VHF channels 2-13
UHF channels 14-69 .
CATV channels 1-125
(181 total receivable channels)
9-inch picture measured diagonally
10-inch picture tube measured
diagonally
90-degree deflection
VHF/UHF telescopic antenna
77mm round (3 1/8 inches), 1.8W
VIDEO IN jacks
VIDEO: RCA phono-type 1 Vp-p,
75 ohms
AUDIO: RCA phono-type monaural
EXT ANT (Combined CATV/VHF/
UHF 75-ohm, F-type)
Output Headphone jack
Power requirements :
120 V AC, 60 Hz
Power consumption
AC IN 55 W max.
Approx. 259 x 245 x 295 mm
(w/h/d)
(10 '/4x 93/4 x 11 5/8 inches)
Mass Approx. 5.9 kg (13 Ib)
Supplied accessories
Remote commander RM-793 with 2
size AA (R6) batteries (1)
Telescopic antenna (1)
Dual mode swivel bracket (1)
Attachment parts (1)
Paper pattern (1)
Optional accessories
Connecting cord VMC-920MS
Picture tube
Antenna
Speaker
Inputs
Dimensions
Design and specifications are subject to change without
notice.
16 -EN Additional Information
Disturbances in picture and sound can often be
eliminated by checking the symptoms and following
the suggestions listed below. If the problem still cannot
be solved, contact your nearest service facility.
SYMPTOM
No picture, no
sound
Poor or no picture
No sound
No color
Snow and noise
only
Dotted lines or
stripes
Double images or
ghosts
CHECK AND ADJUST
e Is POWER switched on?
e Is the power plugged in?
e Check the TV/VIDEO setting.
e Adjust PICTURE or BRIGHT.
e Adjust the antenna.
e Press VOL+.
e Press MUTING.
e Isa headphone connected?
¢ Is it a color program?
e Adjust COLOR.
e Adjust the antenna.
e Often caused by interference from
neon signs, hair dryers, etc.
Move the TV to another spot.
¢ Adjust the antenna. An external
antenna may improve the picture.
