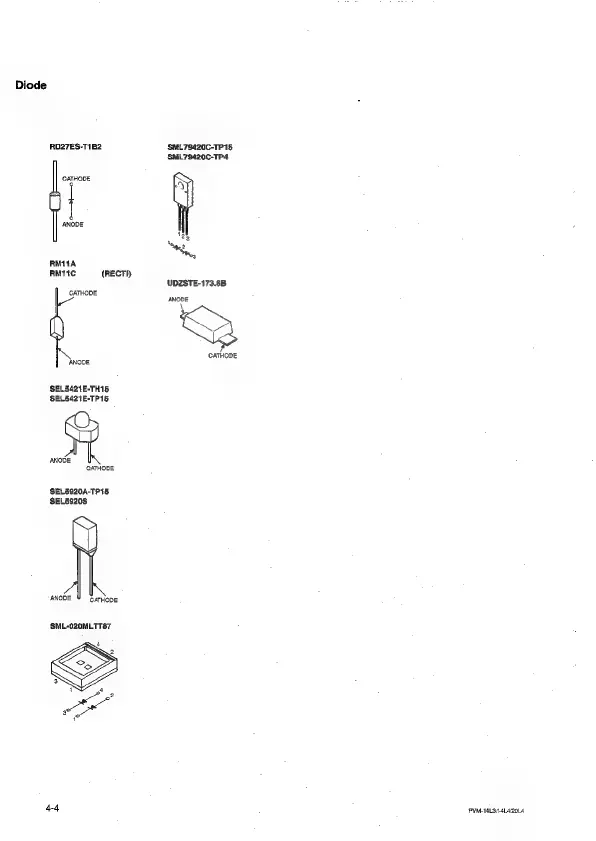

Diode
RD27ES-T1B2
CATHODE
ANODE
RAMI1A
RM1tC
(RECTI)
CATHODE
ANODE
SEL5421E-TH15
SEL5421E-TP1S
ANODE
!
CATHODE,
SELS920A-TP15
SEL5920S
ANODE
|
:
CATHODE
SML-O20MLTT87
SML79420C-TP15
‘SML79420C-TP4
SS
D
rs
UDZSTE-173.6B
ANODE
CATHODE
PVB-14L3/14L4/2014
