Sony Trinitron PVM-14L4 Service Manual

No. Part No. SP Description
101 B-1300-124-A s MOUNTED CIRCUIT BOARD, B (PVA-14L4)
11 A-1300-132-A s MOUNTED CIRCUIT BOARD, B (PVM-14L3)
102 A-1300-125-A s MOUNTED CIRCUIT BOARD, B1
103 A-1300-103-A 3 MOUNTED CIRCUIT BOARD, M
104 A-1300-126-A 3 MOUNTED CIRCUIT BOARD, K
105 A-1391-157-A s MOUNTED CIRCUIT BOARD, T
106 A-1601-921-A s Q BLOCK ASsY
107 X-4033-117-1 s FOOT ASSY {PP}
108 X-4037-166-1 o PANEL ASSY, BLANK
109 ‘4-4836-202-9 s FOOT ASSY,MF (A)
110 A 1-251-382-11 s INLET,AC 3P (WITH NOISE FILTER)
111 1-544-063-12 s SPEAKER (7X5CM)
112 2-990-241-02 5 HOLDER (A}, PLUG
113 3-668-845-01 0 CUSHION, LEG
14 3-701-903-11 o HOLDER, PCB
PYMiaLartaLa20L4
No. Part No.
115 4-047-349-01
116 4-070-730-01
117 4-086-472-01
118° 4-086-488-01
hg 4-087-439-01
120 4-379-189-01
121 4-382-848-01
122 4-385-948-01
123 4-812-134-11
Screws/Washers
7-682-664-09
7-682-950-09
7-682-961-01
7-685-646-79
7-685-648-79
7-685-650-79
7-685-872-09
7-685-881-09

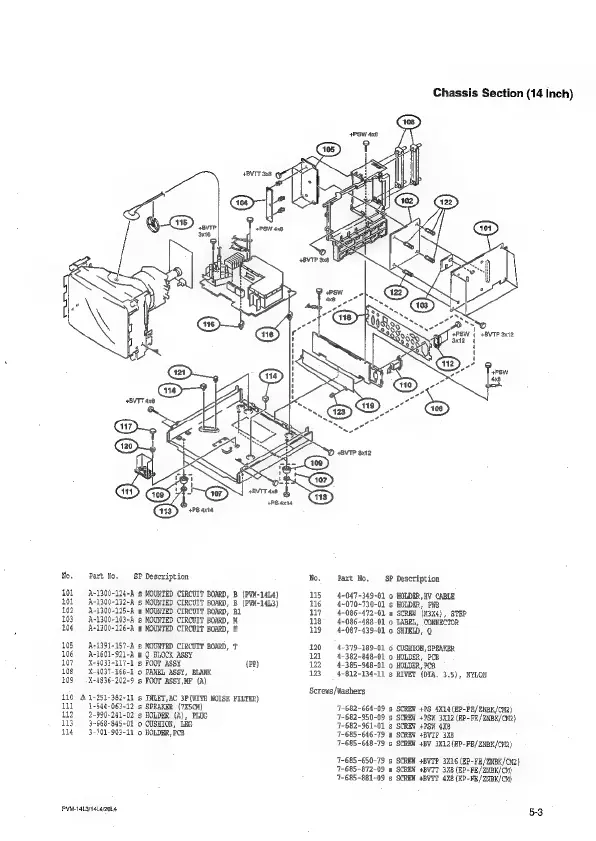

Chassis Section (14 Inch)
1
+PSW 4 4BVTP 3x12
oxi2
SP Description
© HOLDER, HV CABLE
8 HOLDER, PWB
s SCREW (N3X4), STEP
© LABEL, CONNECTOR
© SHIELD, Q
© CUSHION, SPEAKER
© HOLDER, PCB
© HOLDER, PCB
8 RIVET (DIA. 3.5), NYLON
8 SCREW +PS 4X14 (EP-FE/2NBK/CM2)
8 SCREW +PSW 3X12 (EP-FE/ZNBK/CM2)
8 SCREW +PSHW 4X8
S$ SCREW +BVIP 3X8
8 SCREW 4BV 3X12 {EP-FE/ZNBK/CM2)
s SCREW +BVIP 3X16 (BP-FE/ZNBK/CN2}
s SCREW 4+BVTT 3X8 (EP-FE/ZNBK/CM)
s SCREW +BVIT 4X8 (EP-FE/ZNBK/CH)
5-3
