Sony Trinitron PVM-14L4 Service Manual

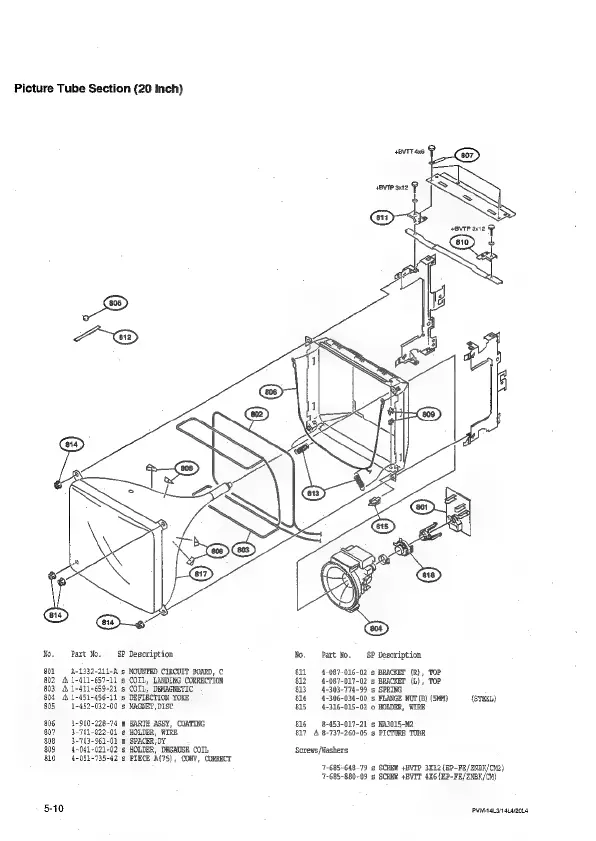

Picture Tube Section (20 Inch)
No.
801
Part No.
4-1332-211-A
802 A 1-411-657-11
803 A 1-411-659-23
804 Ay 1-451-456-11
805
806
807
808
809
810
5-10
1-452-032-00
1-900-228-74
3-701-822-01
3-703-961-01
4-041-021-02
4-051-735-42
SP Description
8 MOUNTED CIRCUIT BOARD, C
8 COIL, LANDING CORRECTION
8 COIL, DEMAGNETIC
8 DEFLECTION YOKE
s MAGNET, DISC
s EARTH ASSY, COATING
s HOLDER, WIRE
s SPACER, DY
HOLDER, DEGAUSE COIL
s PIECE A{75), CONV, CORRECT
Yo. Part No.
811 4-087-016-02
$12 4-087-017-02
813 4-303-774-99
$14 4-306-034-0060
$15 4-316-015-02
$16 8-453-017-21
817 A 8-737-260-05
Screws/Washers
7-685-648-79
7-685-880-09
sevte ste F
oe
SP Description
8 BRACKET (R), TOP
s BRACKET (L}, TOP
8 SPRING
s FLANGE NUT(B) (5M) (STEEL}
© HOLDER, WIRE
s NA3015-M2
s PICTURE TURE
8 SCREW +BVIP 3X12 (EP-FE/2ZNBK/CN2)
ss SCREW +BVIT 4X6 (EP-FE/ZNEK/CM)
PvM-14La/aLar2oLd
