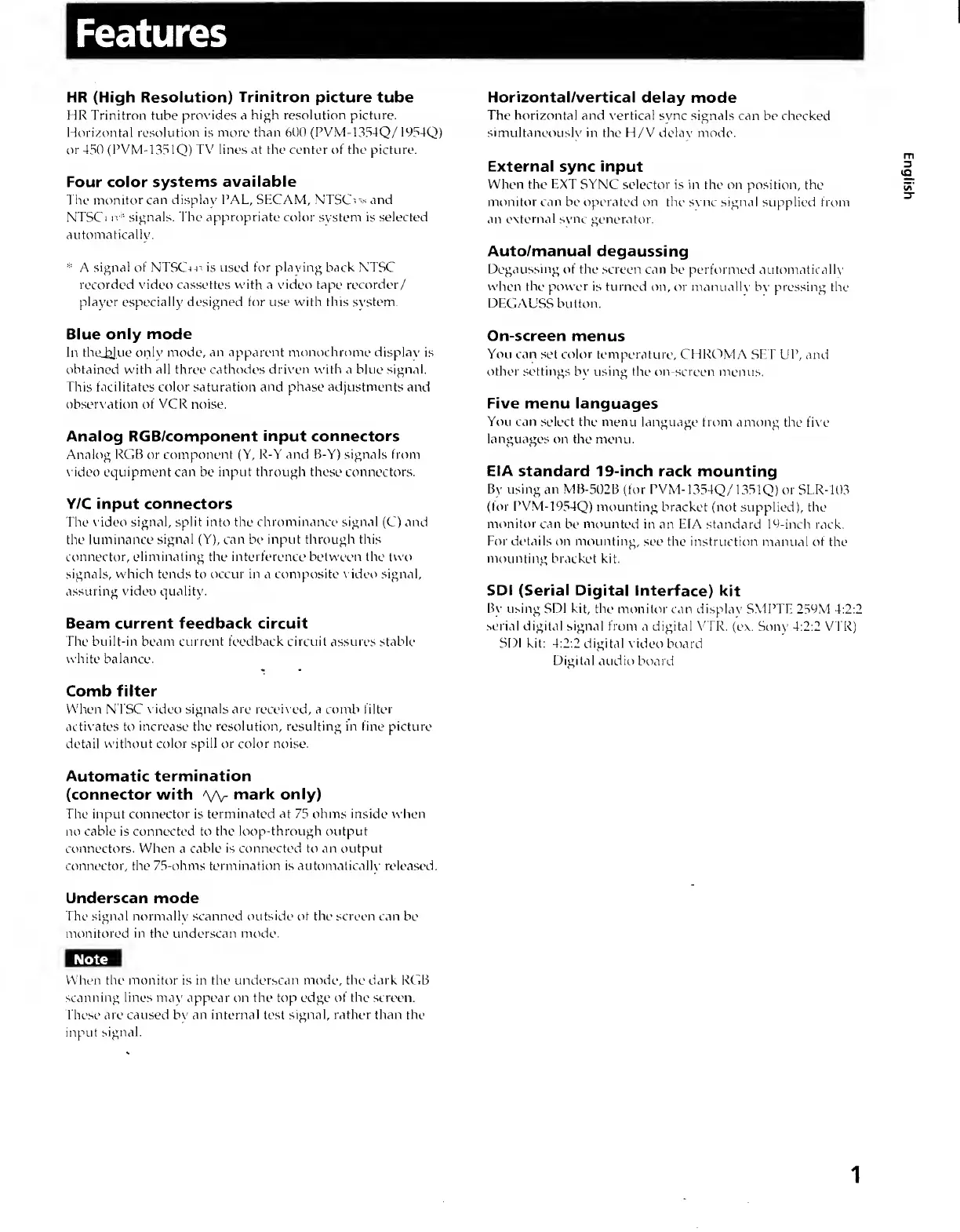

Features
HR (High Resolution)
Trinitron picture
tube
HR Trinitron tube
provides
a
high resolution picture.
Horizontal
resolution is more than
600
(PVM-1354Q/
1954Q)
or
430
(PVM-1351Q) TV lines at the center of the picture.
Four color
systems available
4 he
monitor can display PAL, SECAM,
NTSC'os
and
NTSCi r:* signals. The appropriate color system is selected
automatically.
*
A
signal of NTSCTm is used for playing back NTSC
recorded yideo cassettes with a yideo tape recorder/
player especially designed for use with this system.
Blue
only mode
In
th e hj ue
only mode, an apparent monochrome display is
obtained with all three cathodes
dri\’en v\'ith
a blue signal.
This facilitates color saturation and
phase
adjustments and
obserx’ation of VCR noise.
Analog RGB/component
input connectors
Analog RGB
or
component (Y,
R-Y and B-Y)
signals
from
\
ideo equipment can be
input through
these connectors.
Y/C input
connectors
The \
ideo
signal, split into the chrominance signal
(C)
and
the
luminance signal (Y), can
be
input through this
connector, eliminating the interference between the
tw(>
signals, which tends to occur in a composite
\
ideo signal,
assuring video quality.
Beam current feedback circuit
The built-in beam current feedback circuit assures stable
white balance.
Comb filter
When N rSC
video signals are receis'ed,
a comb filter
actiwites
to
increase the resolution, resulting in fine picture
detail
without color spill or color noise.
Automatic termination
(connector with
VV
mark only)
The input connector is
terminated at 75 ohms inside when
no
cable
is connected to
the loop-through output
connectors. When
a
cable is connected to an output
connector, the 75-ohms termination is automaticalh released.
Underscan mode
The signal normally scanned
outside of the screen
can be
monitored in
the underscan mode.
Note
When
the
monitor is in the
underscan mode, the dark
KGB
scanning lines may
appear on the top
ecige of the screen.
These
are caused
by
an internal
test
signal, rather than the
input
signal.
Horizontal/vertical delay
mode
The horizontal and vertical sync
signals can be checkeci
simultaneously
in the H/V delay mode.
External sync input
When the EXT SYNC selector is in
the on position, the
monitor can be operated on the sync signal
supplied from
an
external s\’nc
generator.
Auto/manual degaussing
Degaussing
of the screen can
be performed automatically
when the power
is turned on, or juanuallv
b\'
pressing
the
DEGAUSS button.
On-screen menus
You can set color temperature,
CHROM.V SE I' UP, and
other
settings by using the on-screen
menus.
Five menu languages
You can select the menu
language from among
the fix'e
languages
on
the menu.
EIA
standard 19-inch rack mounting
By
using an MB-502B
(for PVN4-1354Q/
1351Q)
or SLR-103
(for
PVM-1954Q)
mounting
bracket (not
supplied), the
monitor can
be
iiKninted
in an EIA standard 19-inch rack.
For details on mounting,
see the instruction
manual
of
the
mounting
bracket kit.
SDI (Serial
Digital Interface)
kit
By using SDI kit, the
monitoi' can displa\' SMPTE
259M 4:2:2
serial digital signal from
a digital VTR.
(e\. Sony 4:2:2 VTR)
SDI
kit: 4:2:2 digital
v
ideo
board
Digital audit)
board
