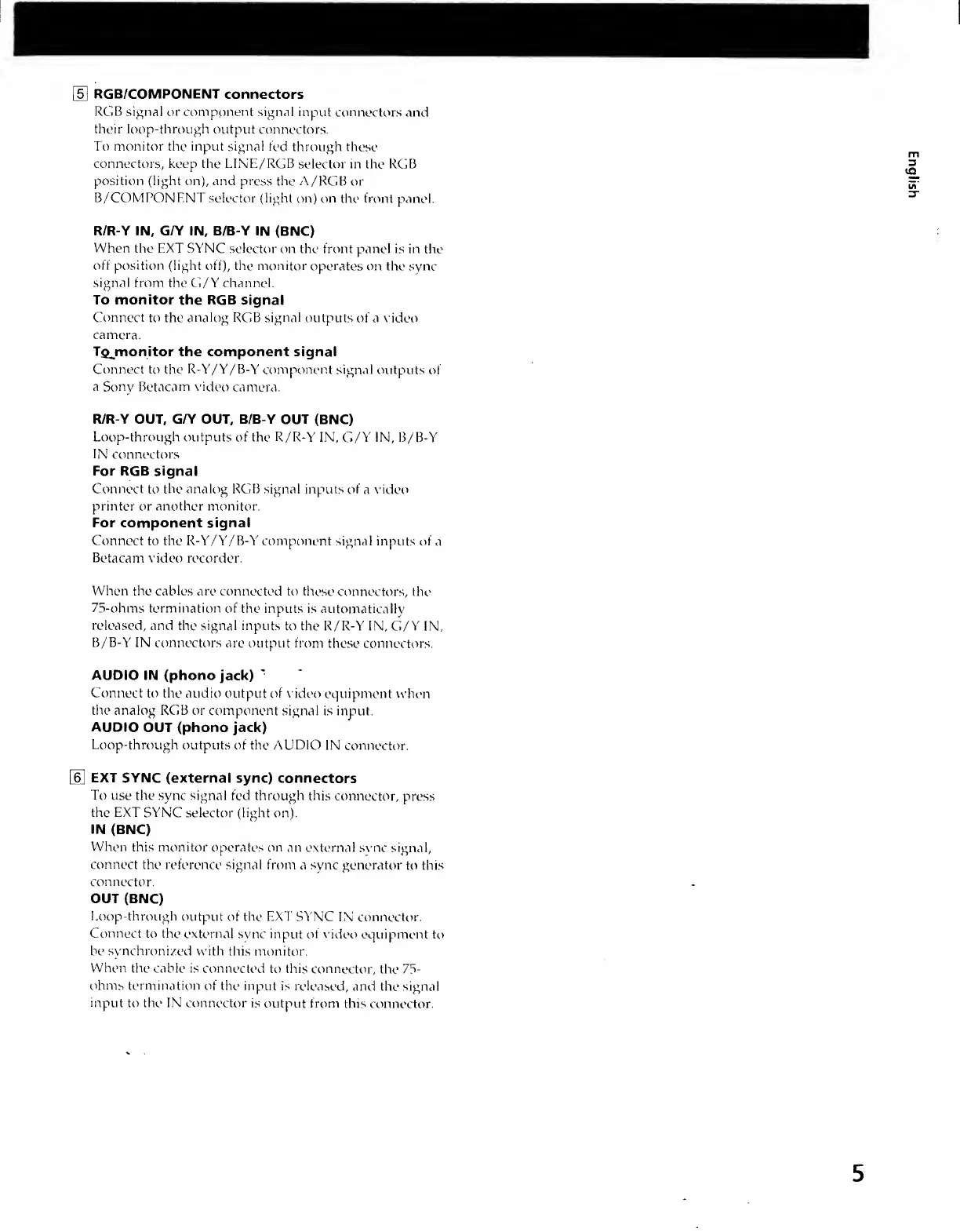

[5]
RGB/COMPONENT
connectors
RGB signal or component
signal input connectors
and
their loop-through
output connectors.
To monitor the input signal fed
through these
connectors, keep the LINE/RCB
selector in the RGB
position (light on), and press the A/RGB (rr
B/COMPONENT
selector (light r)n) on
the
front
panel.
R/R-Y IN, G/Y IN, B/B-Y IN
(BNC)
When
the EXT SYNC selector on
the front panel is in
the
off position
(light off), the monitor operates
on the sync
signal from the
G/Y channel.
To monitor the RGB
signal
Connect
to
the analog
RGB
signal
outputs of
a
x'ideo
camera.
Ta_monitor the component signal
Connect to the R-Y/Y/B-Y component
signal (Hitputs
of
a Sony Betacam \'ideo
camera.
R/R-Y OUT, G/Y OUT, B/B-Y OUT
(BNC)
Loop-through outputs
of
the R/R-Y
IN, G/Y IN,
B/B-Y
IN
connectors
For RGB signal
Connect
to
the anak>g RGB
signal inputs of
a
video
printer
or another monitor.
For component signal
Connect to the R-Y/Y/B-Y component
signal inputs of
a
Betacam
x’ideo recorder.
When the cables are
connected to these
connectors, the
75-ohms termination of
the inputs is automatically
released,
and the signal inputs
to the R/R-Y IN, G/Y
IN,
B/B-Y IN connectors
are output from
these connectors.
AUDIO IN (phono jack)
'
Connect to the audio
output
of \
ideo equipment when
the
analog RGB or component
signal is input.
AUDIO
OUT (phono jack)
Loop-through
outputs of the AUDIO
IN connector.
[U
EXT SYNC
(external sync) connectors
To
use the sync signal fed through this
connector,
press
the EXT SYNC
selector (light on).
IN
(BNC)
When
this monitor operates on
an external svnc signal,
connect
the reference signal from
a sync generator
to this
connector.
OUT (BNC)
Loop-through
output of the EX E SYNC
IN connector.
Connect
to the external
svnc input of video
equipment
U)
be synchronized with
this monitor.
When
the cable is connected
to this connector,
the
75-
ohms
termination of the input
is released,
and the signal
input
to the IN connector is
output from
this connector.
5
