Sony Trinitron PVM-1954Q User Manual

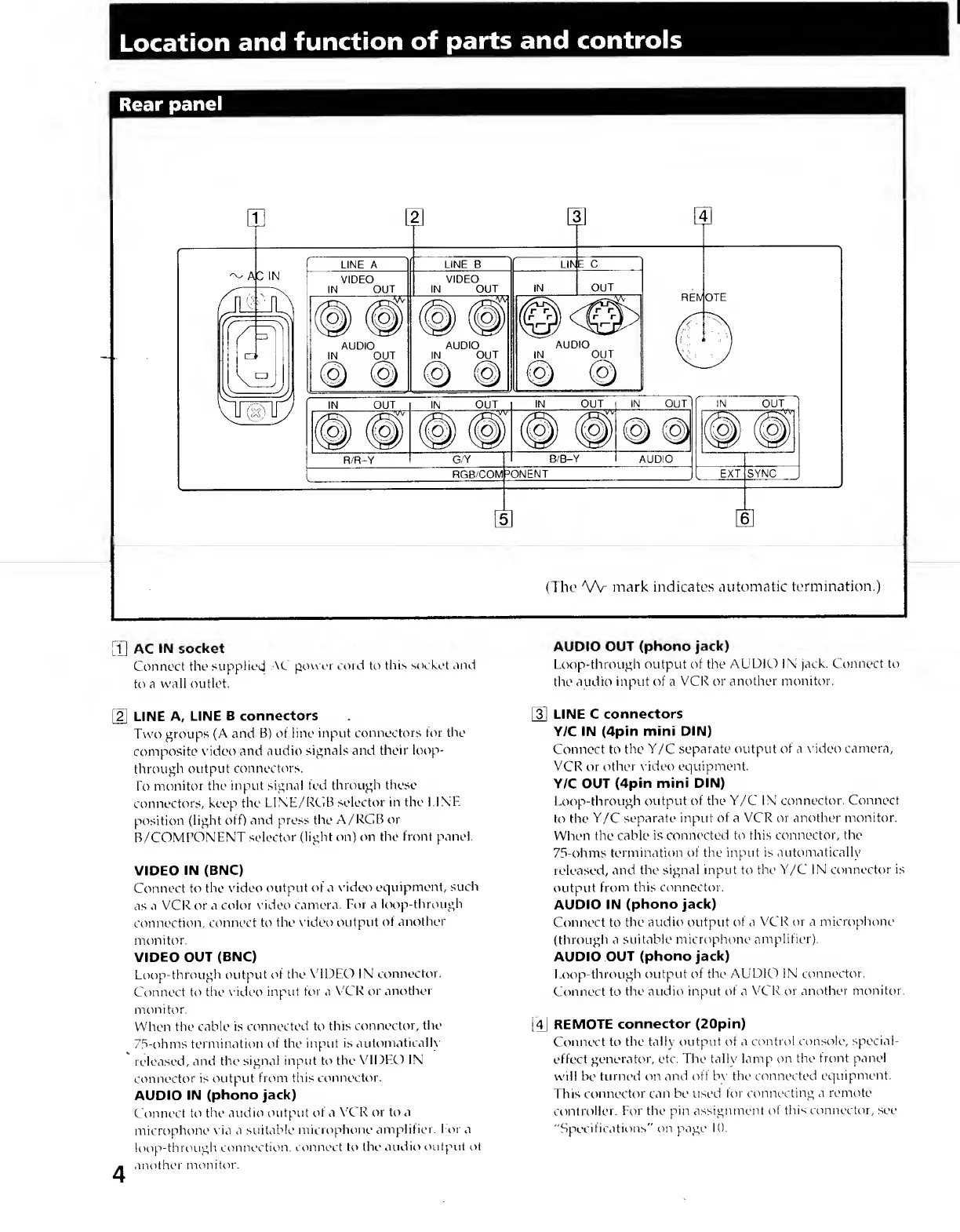

Location
and
function
of
parts
and controls
Rear
panel
LINE A
VIDEO
IN
OUT
LINE B
VIDEO
IN
OUT
t-y»i
LINE C
OUT
REMOTE
IN
OUT
1
IN
OUT
1
IN
OUT
1
IN
OUTII
®
@)
R/R-Y
1
G/Y
1
B/B-Y
AUDIO
'ONENT )l
OUT
EXT SYNC
(The
Vv
mark indicates
aLitomatic termination.)
[f] AC
IN socket
Connect the supplied
.AC power
cord
to
this
socket and
to a
wall
outlet.
[2]
LINE
A, LINE B
connectors
Two
groups (A
and B) of line
input connectors
tor
the
composite
video
and audio
signals and
their loop-
through
output
connectors.
To
monitor the
input signal
fed through
these
connectors,
keep
the
LIXE/RCB
selector in the
I.IXF,
position (light
off) and press
the A
/RGB or
B/COMPONENT
selector (light on)
on the
front panel.
VIDEO
IN (BNC)
Connect to
the video
output of a
\ ideo
equipment,
such
as
a VCR
or a color
\ ideo camera.
For a
loop-through
connection, connect
to the
\'ideo output
ot
another
monitor.
VIDEO OUT
(BNC)
Loop-through
output of
the \TDEO IN
connector.
Crrnnect to
the v ideo input
for a V'CR
or another
monitor.
When the
cable is connected
to this
connector,
the
7h-ohms
termination
of the input
is
automatically
released,
and the
signal input to
the
VIITFC) IN'
connector
is output
from this
ccmnector.
AUDIO IN
(phono jack)
Connect to
the audio output
of a
VCR or to a
microphone
via a
suitable microphone
amplilier. For
a
loop-through
connection, connect to
the
audio output ot
M another
numitor.
AUDIO
OUT (phono
Jack)
Loop-thrcnigh output of the
AUDIO IN
jack. Connect to
the
audio input of a
VCR or another
monitor.
[3]
LINE C
connectors
Y/C IN
(4pin mini DIN)
Connect to
the Y/C separate output
of
a
video
camera,
VCR or
other video
equipment.
Y/C OUT
(4pin
mini DIN)
Loop-through
output of the Y/C
IN connector.
Connect
to the
Y/C separate input
of a VCR or another
monitor.
When the cable
is connected to this
connector, the
7b-ohms
termination ot the input
is automaticallv
releasecT
and
the signal input to the
Y/C IN connector
is
output
from this connector.
AUDIO IN
(phono
Jack)
Connect to
the audio output of a
V'CR or a
microphone
(through a
suitable
micrrrphrrne amplifier).
AUDIO
OUT
(phono
Jack)
l.oop-through
output of
the AUDIO IN connector.
Connect to
the audio input
of
a
V'CR or
another monitor.
[4j
REMOTE
connector (20pin)
Connect to
the tally output of a
control console,
special-
effect
generator, etc. The tallv lamp
on the
front panel
will be
turned on and off bv
the connected
equipment.
This
connector can be used
for connecting
a remote
controller. For the
pin assignment
ot this connector, see
"Specifications" on page
10.
