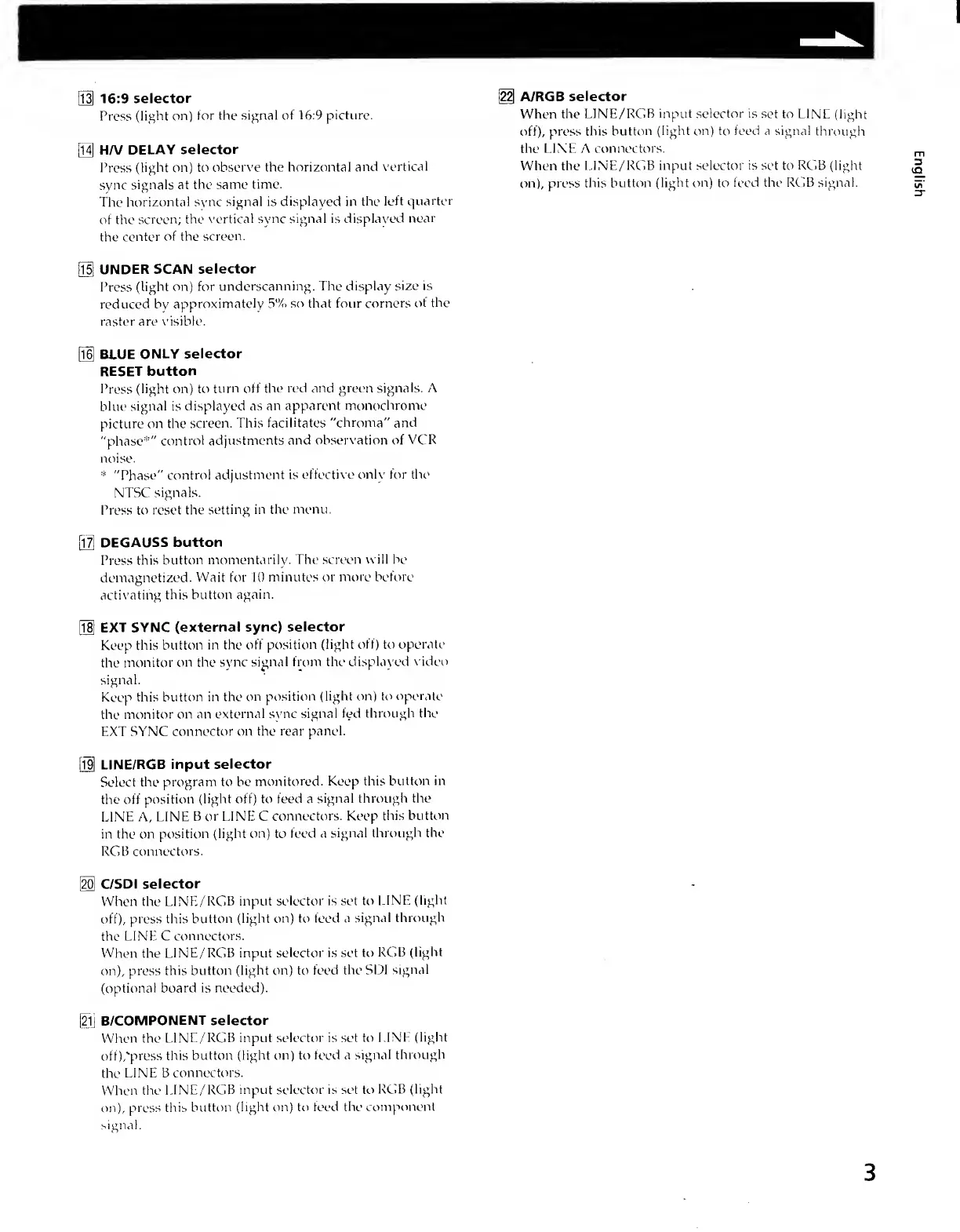

Sony Trinitron PVM-1954Q User Manual

16:9
selector
Press
(light on)
for the signal of
16:9
picfiire.
HA/
DELAY
selector
Press
(light on) to
observe the horizontal
and
vertical
sync
signals at
the same time.
The
horizontal svnc
signal is
displayed
in
the
left
quarter
of the
screen;
the
x'ertical sync signal is displayed
near
the
center
of fhe screen.
A/RGB
selector
When
the
LINE/RCB input selector is
set to LINE
(light
off), press
this
button (light on) to feed a signal
through
the LI.XE A
connectors.
When the
I.IN'E/RCIB input selector
is
set to
RGB
(light
on), press
this button
(light on)
to
feed the RGB signal.
m
UNDER SCAN
selector
Press
(light
on) for
underscanning. The display
size is
reduced by
approximately
5% so that four corners
of the
raster are
x'isible.
Ill
BLUE
ONLY
selector
RESET
button
Press (light
on) to
turn off the red
and
green
signals. A
blue
signal is displayed as
an
apparent monochrome
picture on
the screen.
This
facilitates "chroma" and
"phase*"
control
adjustments
and observation of
VCR
noise.
*
"Phase"
control
adjustment is
effectix
e
onh’ for the
NTSC
signals.
Press to
reset the
setting in
the menu,
[17]
DEGAUSS button
Press
this
button
momentarily. The
.screen will he
demagnetized.
Wait for
10 minutes or
more before
activating
this
button again.
O
EXT SYNC
(external sync)
selector
Keep
this button
in the off
pcisition (light
off)
U)
operate
the
monitor
on the sync
signal from the
displayed
\
ideo
signal.
Keep this
button in the
on position
(light on) to
operate
the monitor
on an
external sync signal
fed
through the
EXT SYNC
connector
on the rear
panel.
[il
LINE/RGB input
selector
Select
the program to be
monitored. Keep this
buttern in
the off
position
(light off) to feed a
signal
through the
LINE A, LINE
B or LINE C
connectors.
Keep this
button
in the on
position (light
on)
to
feed a
signal
through the
RGB connectors.
C/SDI selector
When the
LINE/RGB input
selector is set to
LINE
(light
off), press this
button (light
on) to feed a
signal
through
the LINE C
connectors.
When the
LINE/RGB input
selector is set to
RGB
(light
on), press
this button
(light on) to feed
the SDl
signal
(optional
board is needed).
B/COMPONENT
selector
When the
LINE/RGB input
selector is set to
LINE (light
off),'pres.s
this button (light on) to
feed a
signal through
the
LINE B
connectors.
When the
LINE/RGB
input selector is set to
RGB (light
on),
press
this button
(light on) to feed
the component
signal.
3
English
