Important safeguards/notices for use in the
medical environments
1. All the equipments connected to this unit shall be
certified according to Standard IEC601-1, IEC950,
IEC65 or other IEC/ISO Standards applicable to the
equipments.
2. When this unit is used together with other equipment in
the patient area*, the equipment shall be either powered
by an isolation transformer or connected via an
additional protective earth terminal to system ground
unless it is certified according to Standard IEC601-1
and IEC601-1-1.
* Patient Area
3. The leakage current could increase when connected to
other equipment.
4. The operator should take precautions to avoid touching
the rear panel input and output circuitry and the patient
at the same time.
5. Model PVM-14M2MDU/14M2MDE/14M2MDA/
20M2MDU/20M2MDE/20M2MDA is a video monitor
intended for use in a medical environment to display
video pictures from cameras or other video system.
Warning

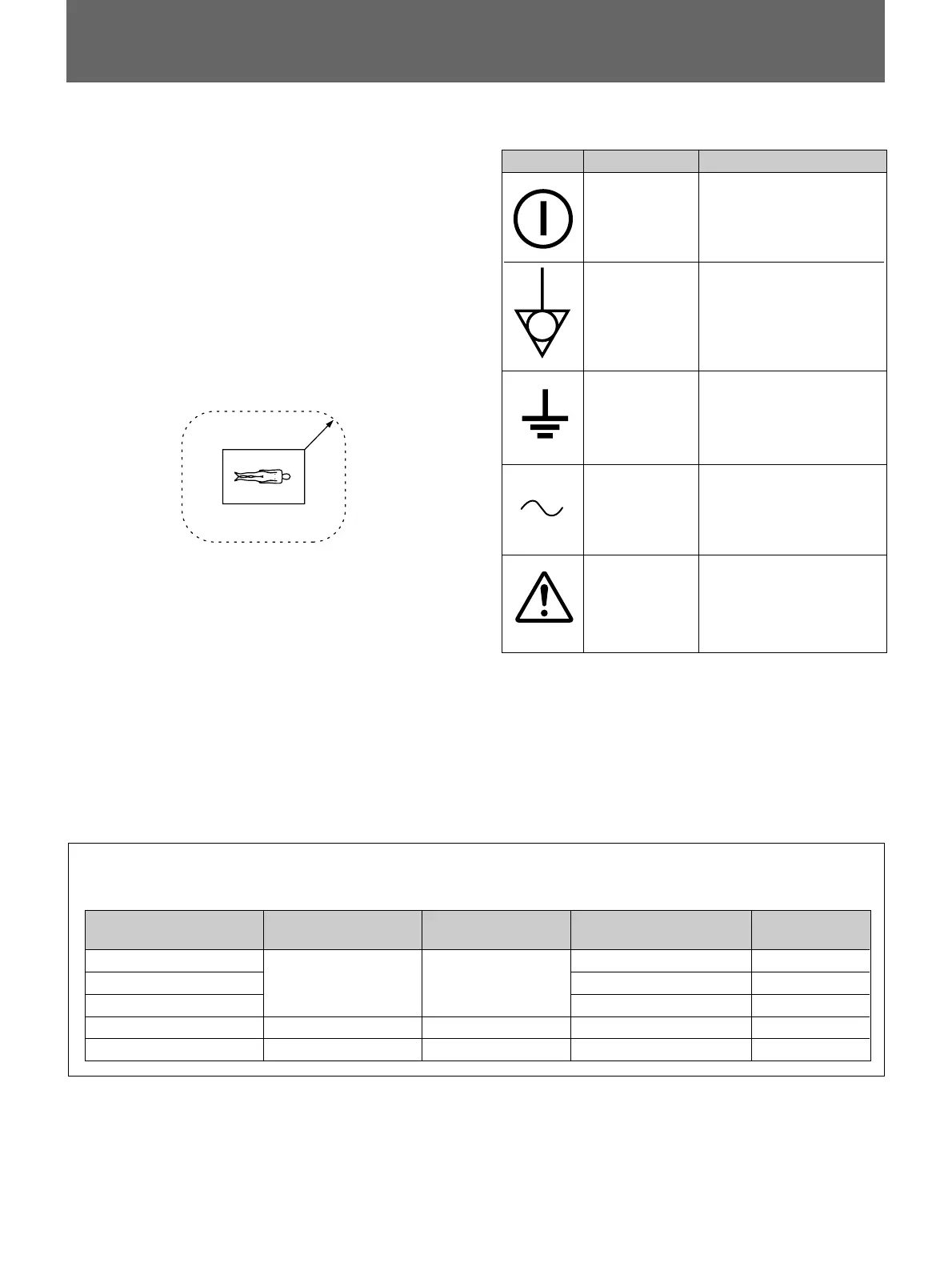

Symbols on the unit
Symbol This symbol indicates
Main power switch.
Press to turn the monitor
on or off.
The equipotential terminal
which brings the various
parts of a system to the
same potential.
Functional earth terminal
Alternating current
Attention, consult
ACCOMPANYING
DOCUMENTS
R
1.5m
Warning on power connection
Use a proper power cord for your local power supply.
Location
Front panel
Rear panel
Rear panel
Rear panel
Rear panel
United State Canada Continental Europe Japan
Plug type HOSPITAL GRADE HOSPITAL GRADE LP-34A VM1050
Female end E41395 LL33182 LS-60 VM1010
Cord type E41395-A LL76662 H05VV-F PVCTF
Minimum cord set rating 10A/125V 10A/125V 10A/250V 12A/125V
Safety approval UL CSA VDE DENTORI
