Sony TRV510 - VC-213 Board Schematics (7;13); TRX, TRF, and TRW Blocks; VC-213 TRX;TRF;TRW Signal Paths

DCR-TRV410/TRV410E/TRV510/TRV510E
4-38
For schematic diagram
• Refer to page 4-65 for printed wiring board.
4-35 4-36 4-37
TRX, TRF, TRW
VC-213 (7/13)

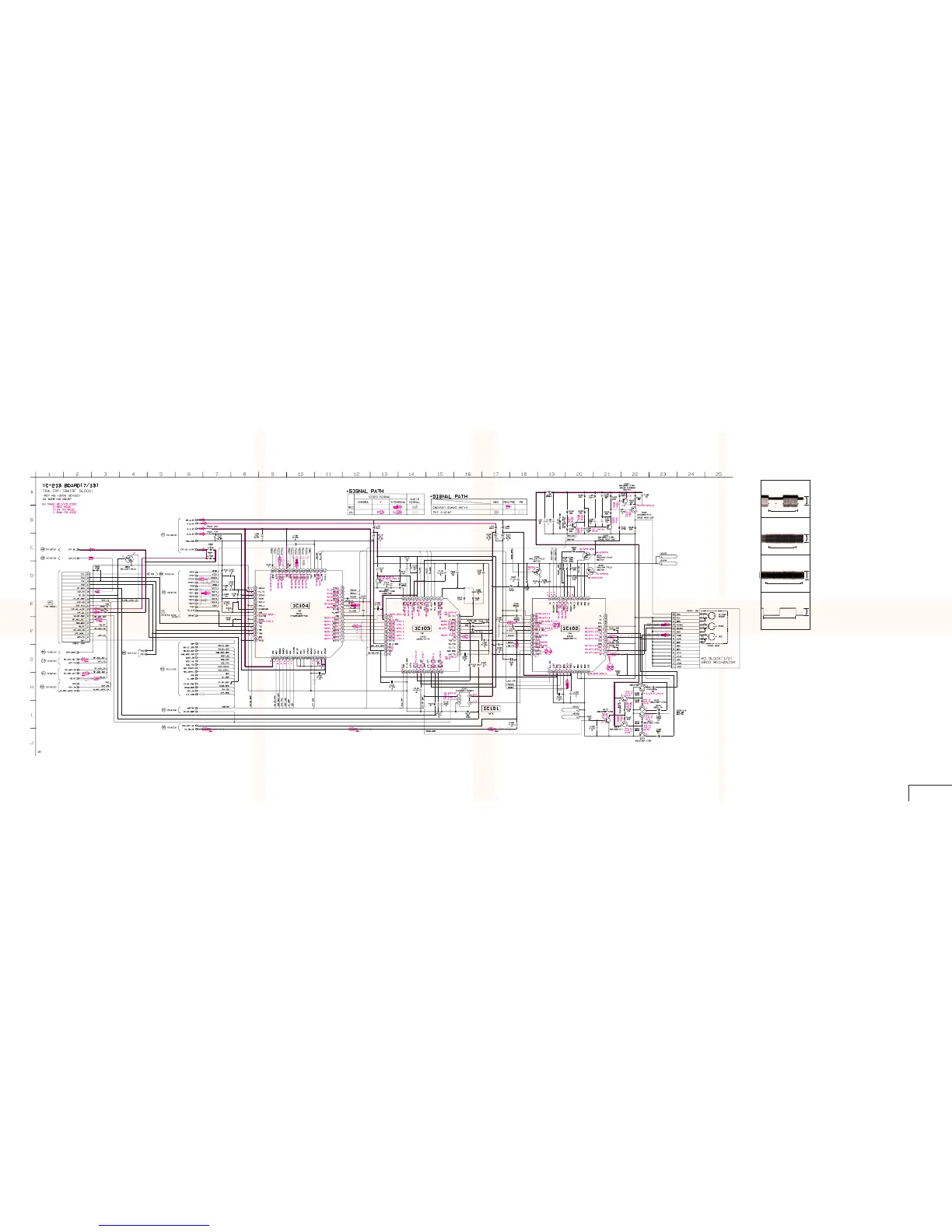

VC-213 BOARD (7/13)
@£ IC102 @¶,@ª
PB (8mm)

@™ IC102 1,2,5,6
CAMERA REC
3.6Vp-p
13.3 msec
0.15Vp-p
NTSC : 33.3 msec
PAL : 40.0 msec
@£ IC102 @¶,@ª
PB (DV)

0.3Vp-p
13.3 msec
@¢ IC102 #∞
CAMERA REC/PB

2.6Vp-p
NTSC : 33.3 msec
PAL : 40 msec
DV : 13.3 msec
