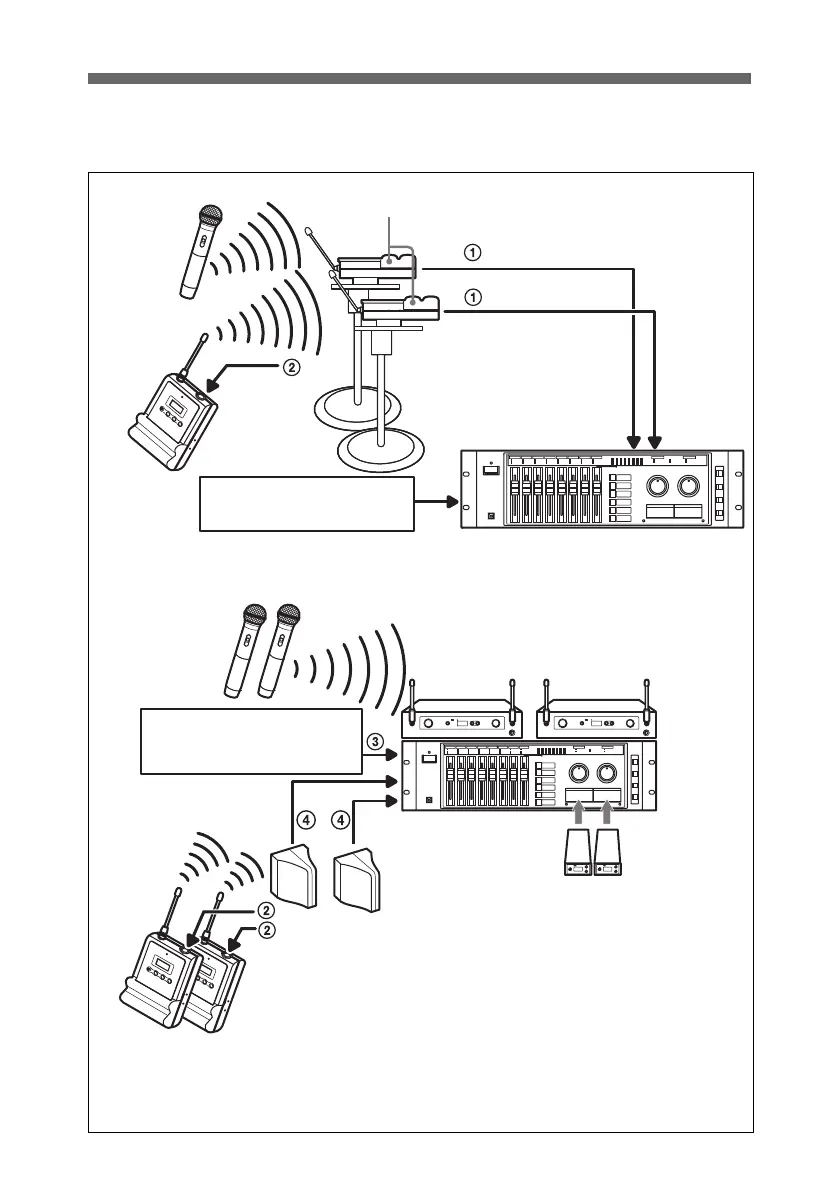

Sample configurations for AV presentations
or
Body-pack
transmitter
(UTX-B1)
Portable diversity tuner (URX-P1) (with
the shoe mount adapter attached)
Hand-held
microphone
(UTX-H1)
To DVD player,
PC, or VTR, etc.
SRP-X700P Powered Mixer
Hand-held
microphone
(UTX-H1)
Half-rack size diversity
tuner (URX-R1)
To DVD player,
PC, or VTR, etc.
Body-pack transmitter
(UTX-B1)
AN-820 UHF
antenna
SRP-X700P
Powered Mixer
Diversity tuner
module (URX-M1)
1 XLR cable with the XLR-BMP conversion cable (supplied)
2 Lavalier microphone (supplied)
3 BNC cable
4 XLR cable or pin cable
