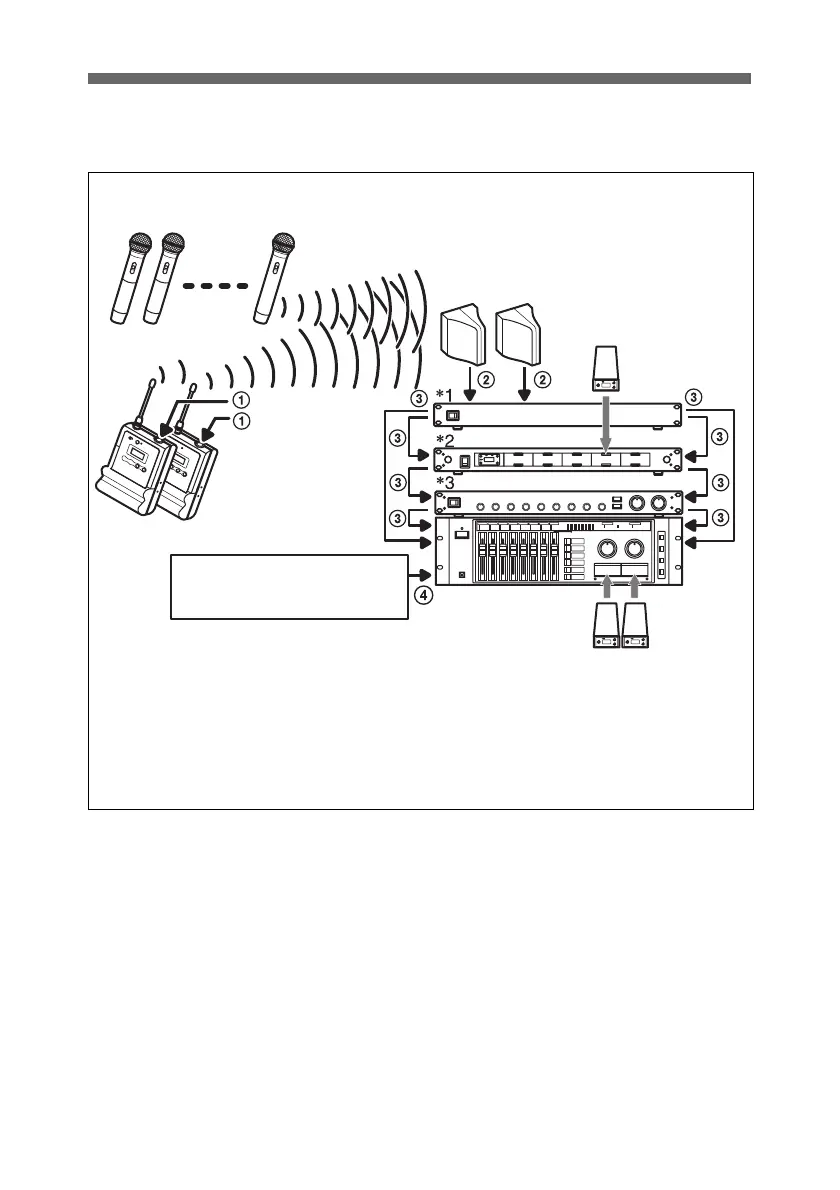

Sample configuration of a PA system
Hand-held microphone (UTX-H1)
AN-820 UHF antenna
Diversity
tuner module
(URX-M1)
Body-pack transmitter
(UTX-B1)
To DVD player, PC,
or VTR, etc.
SRP-X700P
Powered Mixer
Diversity tuner
module (URX-M1)
1 Lavalier microphone (supplied)
2 BNC cable
3 XLR cable
4 XLR cable or pin cable
*1 WD-820A Antenna Divider
*2 MB-806A Tuner Base Unit
*3 SRP-X100 Audio Mixer
