Sony VPCSA - 0; M-1. Main Board

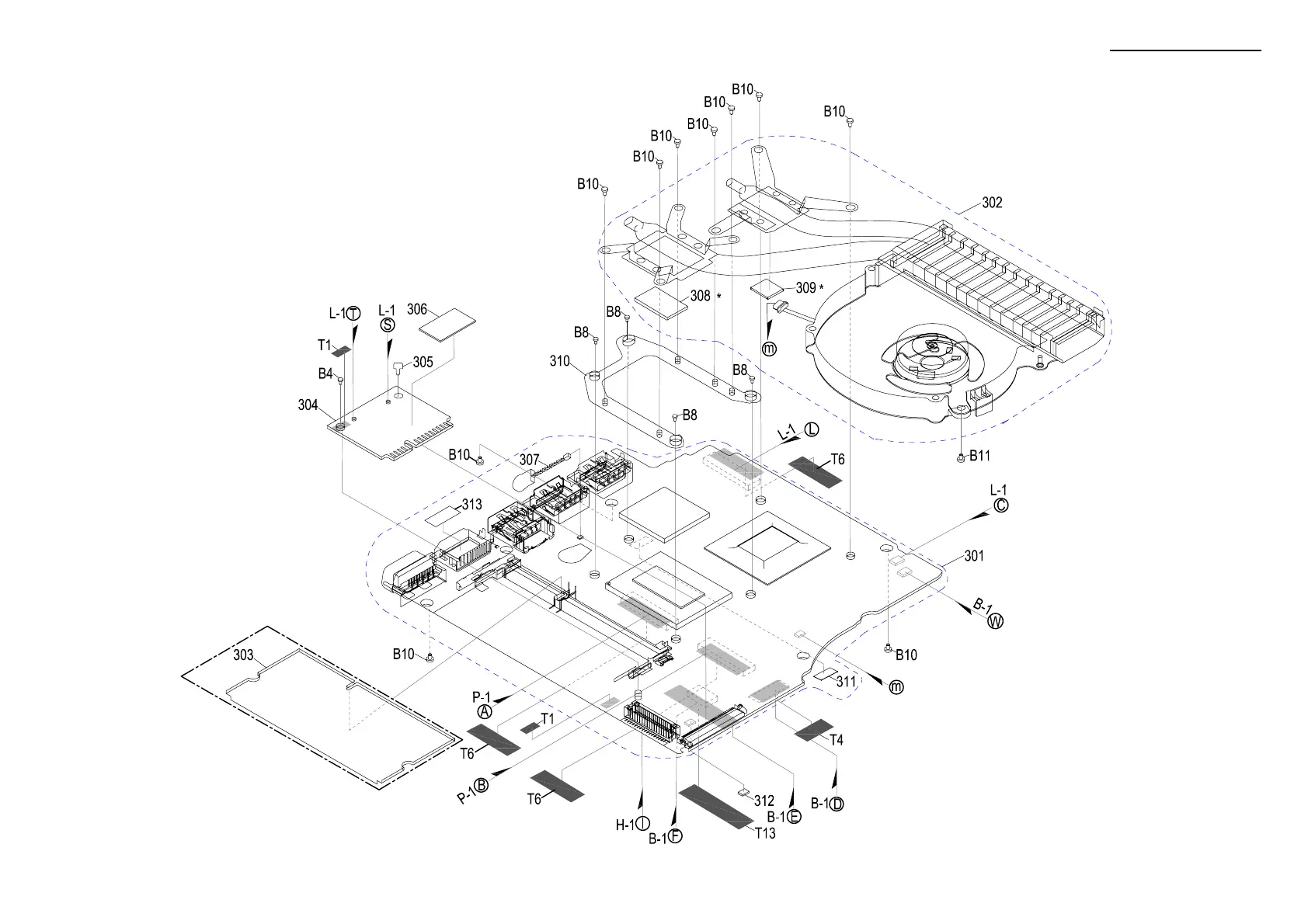

M-1. Main Board
* When thermal module is removed,
clean off the CPU PAD and VGA PAD.
Put the Ref. No. 308 and Ref. No. 309
to the place shown in the figure.
3
-
Parts List
x Double-click on the paper clip mark to open the parts list.
x To open the parts list, Microsoft office Excel or Excel viewer is required.
-
5
[Sony Confidential]
VPCSA/SB/SC/SD Series (9-890-859-XX)
