63
Specifications
Others
*1: For details, refer to “Acceptable Input Signals” on page 65.
*2: Information on accessories in this manual is current as of August 2014.
*3: Not all optional accessories are available in all countries and area. Please check with your local
Sony Authorized Dealer.
Design and specifications of the unit, including the optional accessories, are subject to change
without notice.

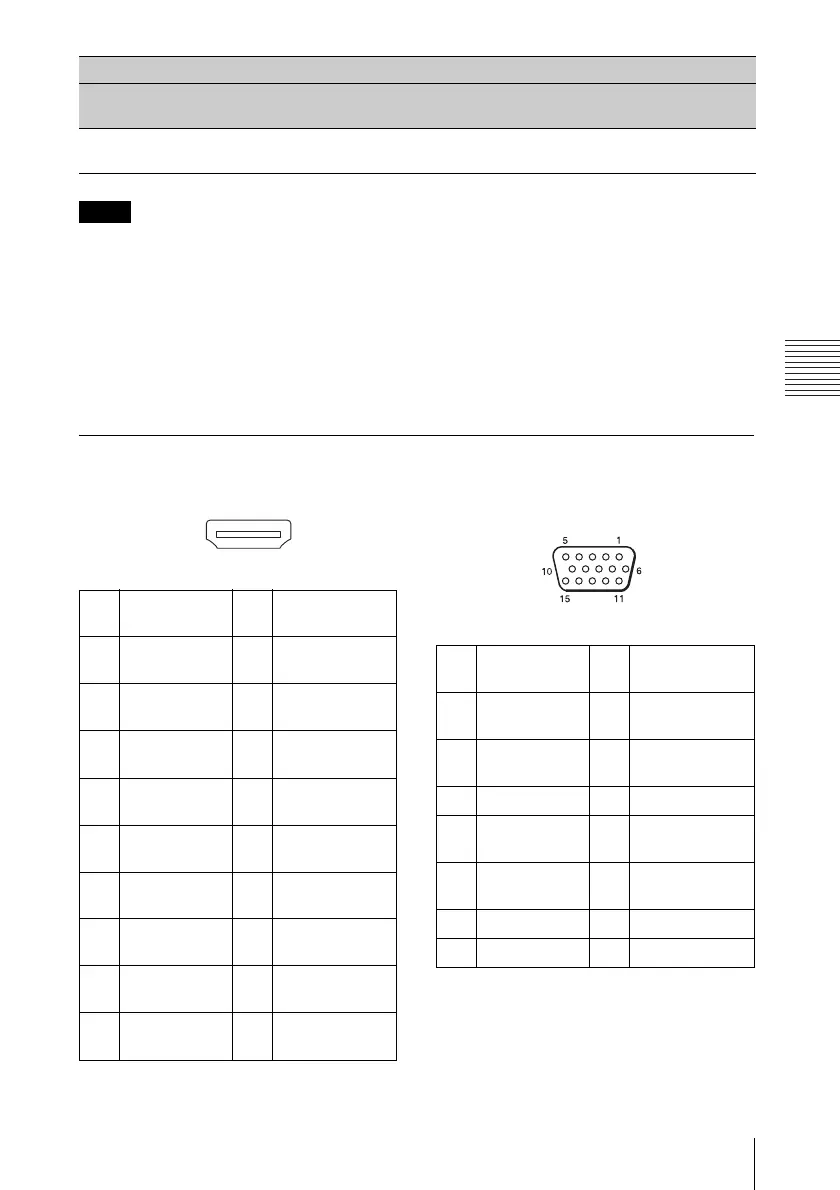

Pin assignment
HDMI connector (HDMI, female) RGB input connector (Mini D-sub
15-pin, female)
Optional
accessories
*2 *3
Projector Lamp LMP-E212 (for replacement)
USB wireless LAN module IFU-WLM3
Items Descriptions
Model VPL-EW295/EW255/EW235/EX295/EX290/EX255/EX250/
EX235/EX230
Notes
1 T.M.D.S.
Data2+
11 T.M.D.S.
Clock Shield
2 T.M.D.S.
Data2 Shield
12 T.M.D.S.
Clock –
3 T.M.D.S.
Data2 –
13 N.C.
4 T.M.D.S.
Data1+
14 RESERVED
(N.C.)
5 T.M.D.S.
Data1 Shield
15 SCL
6 T.M.D.S.
Data1 –
16 SDA
7 T.M.D.S.
Data0+
17 DDC GND
8 T.M.D.S.
Data0 Shield
18 +5V Power
9 T.M.D.S.
Data0 –
19 Hot Plug
Detect
10 T.M.D.S.
Clock+
1
2
19
18
1 Video input
(red) R
9 Power supply
input for DDC
2 Video input
(green) G
10 GND
3 Video input
(blue) B
11 GND
4 GND 12 DDC/SDA
5 RESERVE 13 Horizontal sync
signal
6 GND (R) 14 Vertical sync
signal
7 GND (G) 15 DDC/SCL
8 GND (B)
To Next Page
