Sony WALKMAN WM-702 User Manual

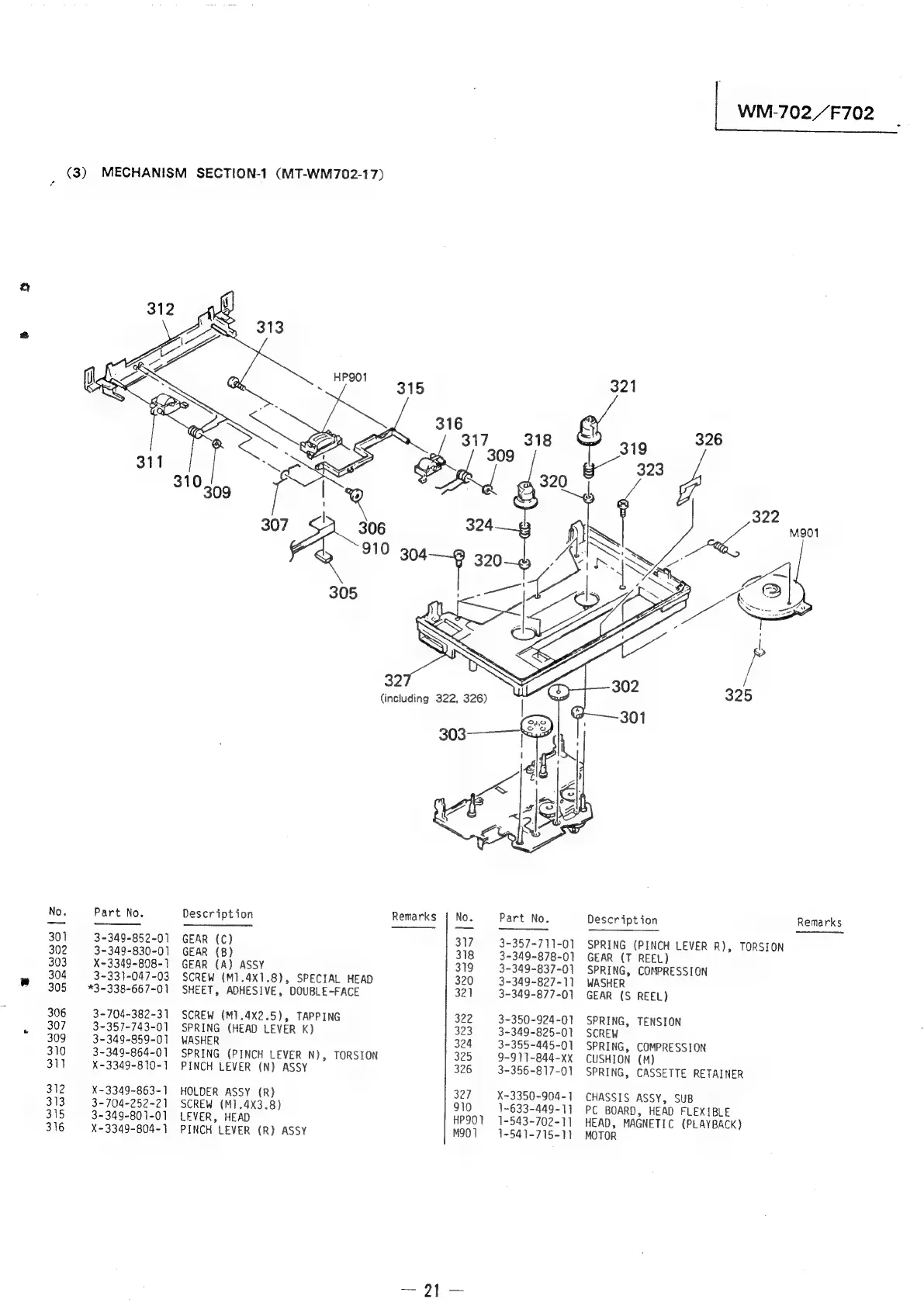

(3) MECHANISM SECTION-1 (MT-WM702-17)
No
301
302
303
304
305
306
307
309
310
311
312
313
315
316
Part No.
3-349-852-01
3-349-830-01
X-3349-808-1
3-331-047-03
*3-338-667-01
3-704-382-31
3-357-743-01
3-349-859-01
3-349-864-01
X-3349-810-1
X-3349-863-1
3-704-252-21
3-349-801-01
X-3349-804-}
Remarks
Description
GEAR (C)
GEAR (8)
GEAR (A) ASSY
SCREW (M1.4X1.8), SPECIAL HEAD
SHEET, ADHESIVE, DOUBLE-FACE
SCREW (M1.4X2.5), TAPPING
SPRING (HEAD LEVER K)
WASHER
SPRING (PINCH LEVER N), TORSION
PINCH LEVER (N) ASSY
HOLDER ASSY (R)
SCREW (M1.4X3.8)
LEVER, HEAD
PINCH LEVER (R) ASSY
No.
317
318
319
320
321
322
323
324
325
326
327
910
HP901
M901
Part No.
3-357-711-01
3-349-878-01
3-349-837-01
3-349-827-11
3-349-877-0)
3-350-924-01
3-349-825-01
3-355-445-01
9-911-844-xx
3-356-817-01
X-3350-904-]
1-633-449-1]
1-543-702-11
\-541-715-11
WM-702,/“F702
Description Remarks
SPRING
(PINCH
LEVER
R),
TORSION
GEAR (T REEL)
SPRING, COMPRESSION
WASHER
GEAR (S REEL)
SPRING, TENSION
SCREW
SPRING, COMPRESSION
CUSHION (M)
SPRING, CASSETTE RETAINER
CHASSIS ASSY, SUB
PC BOARD, HEAD FLEXIBLE
HEAD, MAGNETIC (PLAYBACK)
MOTOR
