– 25 –

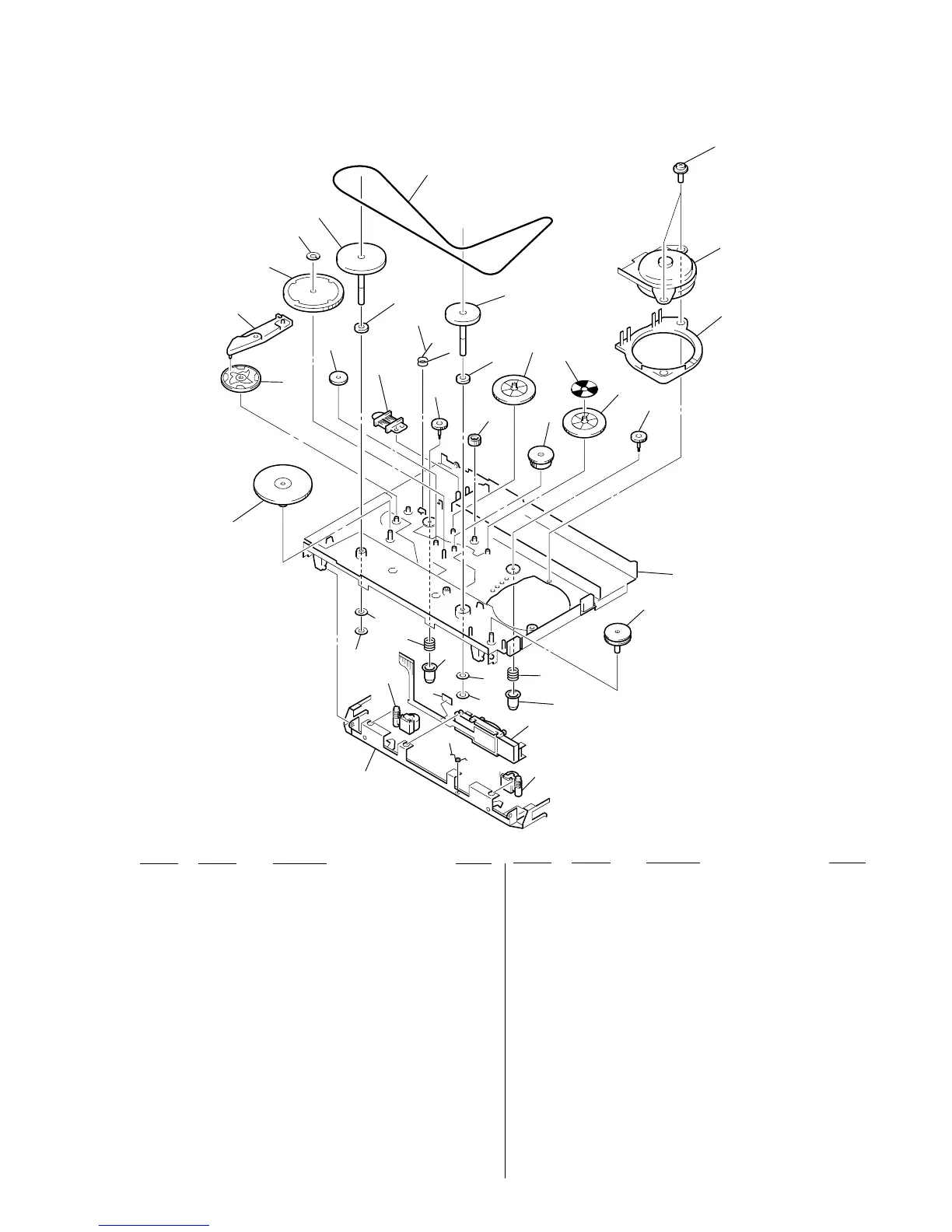

(2) MECHANISM DECK SECITON
(MT-WMEX505-162)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-3378-354-1 HOLDER (FS) ASSY
52 X-3377-363-1 LEVER (R) ASSY, PINCH
53 3-046-789-01 SPRING (HDA)
54 X-3377-362-1 LEVER (N) ASSY, PINCH
55 3-029-275-01 WASHER (STOPPER N)
56 3-029-278-01 WASHER
57 3-029-276-01 WASHER (STOPPER R)
58 3-029-289-01 WASHER
59 X-3376-813-1 CLUTCH ASSY (F)
60 3-932-724-21 WASHER
61 3-040-897-01 SPRING (TGA), TORSION
62 3-386-694-01 WASHER
63 3-029-306-11 FLYWHEEL (N), INSERT
64 3-029-280-01 BELT (F2)
65 3-029-268-11 FLYWHEEL (R), INSERT
66 3-007-428-01 WASHER (R)
67 3-029-765-01 SCREW (M1.4), TOOTHED LOCK
68 3-029-274-11 RETAINER (F2), MOTOR
69 3-007-433-01 SHEET (N), REFLECTION
70 X-3378-107-1 CHASSIS (FB) ASSY
71 3-010-274-02 TABLE, REEL
72 3-010-954-01 SPRING (BT), COMPRESSION
73 3-029-282-01 GEAR (Y)
74 3-029-285-01 GEAR, CAM
75 3-029-284-01 LEVER, TRIGGER
76 3-029-281-01 GEAR, IDLER (B)
77 3-010-273-02 GEAR (REEL)
78 3-029-273-01 GEAR (FR)
79 3-029-283-01 GEAR, IDLER (A)
80 3-029-286-01 GEAR (NR)
81 3-029-288-01 PULLEY, REVERSE
82 3-033-757-01 SHEET (H)
HP901 1-500-576-11 HEAD, MAGNETIC (PLAYBACK)
M901 1-763-166-11 MOTOR (CAPSTAN/REEL) (WITH PULLEY)
PM901 1-454-674-41 SOLENOID, PLUNGER
63
PM901
HP901
M901
60
59
62
61
66
65
67
68
69
56
70
55
58
57
54
51
53
52
64
71
71
82
72
72
73
74
75
76
77
77
78
79
79
80
81
To Next Page
