Sony Walkman WM-EX500 Service Manual

– 24 –
14
10
9
6
2
8
13
12
9
18
20
21
19
24
17
S901
not
supplied
MT-WMEX505-162
26
25
22
2
2
16
1
3
7
23
11
5
4
15
15

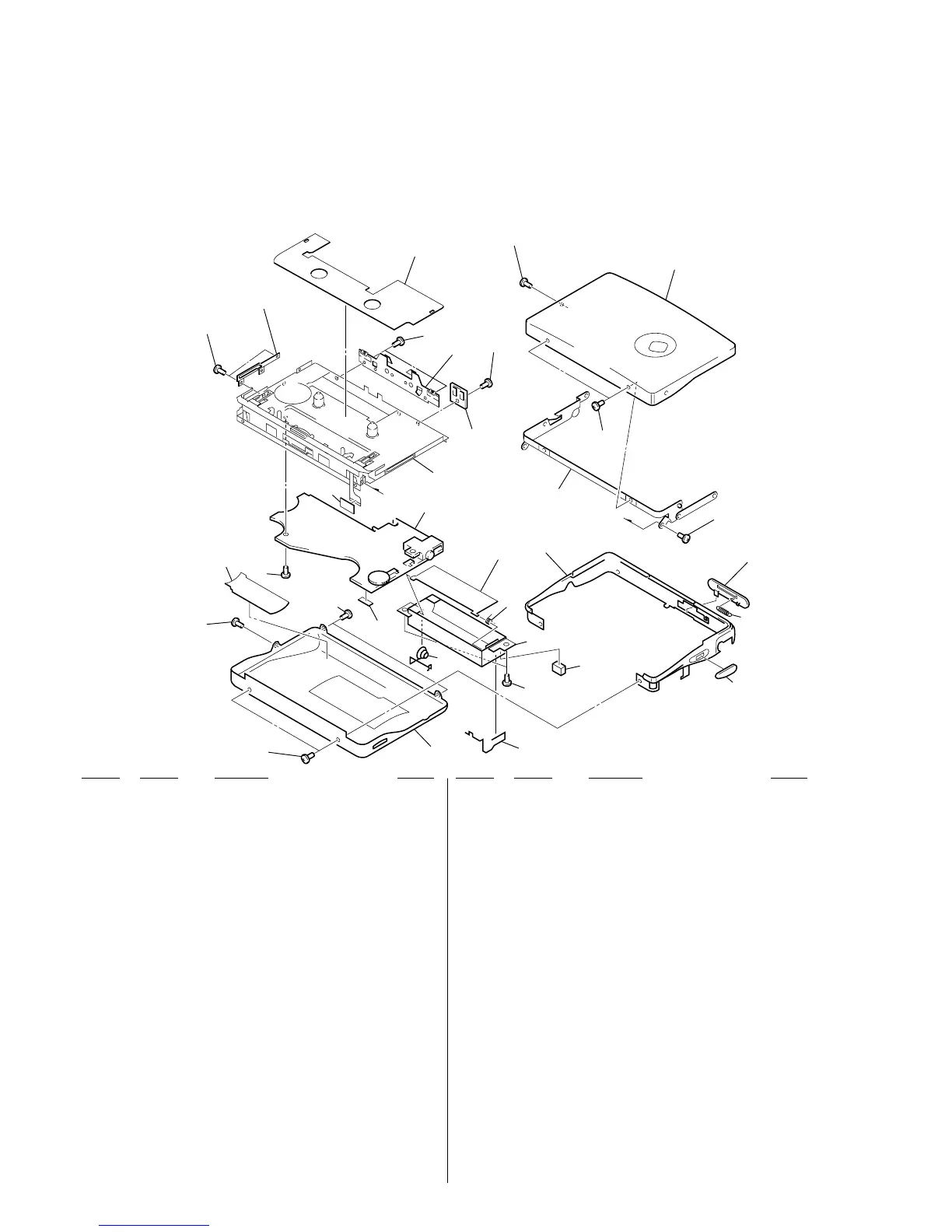

(1) CASE SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-3378-883-1 LID ASSY (SV-S-C), CASSETTE
(SILVER) (EX500)
1 X-3378-884-1 LID ASSY (SV-L-C), CASSETTE
(BLUE) (EX500)
1 X-3378-885-1 LID ASSY (SV-N-C), CASSETTE
(GOLD) (EX505)
2 3-704-197-31 SCREW (M1.4X3.0), LOCKING
(SILVER)...(SILVER, GOLD)
2 3-704-197-33 SCREW (M1.4X3.0), LOCKING
(BLACK)...(BLUE)
3 3-042-001-01 HOLDER, BATTERY
4 3-042-003-01 SPRING
5 3-042-002-01 LID, BATTERY CASE
6 3-345-648-95 SCREW (M1.4), TOOTHED LOCK
7 3-047-460-01 CUSHION (C)
8 A-3021-284-A MAIN BOARD, COMPLETE
(EX505: EXCEPT FRENCH)
8 A-3021-286-A MAIN BOARD, COMPLETE (EX505: FRENCH)
8 A-3021-287-A MAIN BOARD, COMPLETE
(EX500: EXCEPT FRENCH)
8 A-3021-288-A MAIN BOARD, COMPLETE (EX500: FRENCH)
9 3-939-590-05 SCREW (IB LOCK)
10 3-029-217-01 LEVER (B), LOCK
11 3-375-114-81 SCREW
12 X-3377-717-1 BRACKET ASSY (/M)
13 3-939-590-02 SCREW (IB LOCK)
14 3-042-015-01 COVER, MD (EX500)
14 3-042-015-11 COVER, MD (EX505)
15 3-704-197-11 SCREW (M1.4X2.0), LOCKING
(SILVER)...(SILVER, GOLD)
15 3-704-197-13 SCREW (M1.4X2.0), LOCKING
(BLACK)...(BLUE)
16 X-3378-898-1 CASE ASSY (SV-S) (SILVER) (EX500)
16 X-3378-899-1 CASE ASSY (SV-L) (BLUE) (EX500)
16 X-3378-900-1 CASE ASSY (SV-N) (GOLD) (EX505)
17 X-3376-279-1 BRACKET (CASSETTE) ASSY
18 3-365-630-41 SCREW (M1.4)
19 3-042-006-01 ORNAMENT, REEL
20 3-042-007-01 KNOB (OPEN)
21 3-042-008-01 SPRING, TENSION
22 3-042-009-01 KNOB (HOLD)
23 3-042-004-01 TERMINAL (+), BATTERY
24 3-042-005-01 TERMINAL (-), BATTERY
25 3-309-595-11 SHEET, INSULATING, PACK
26 3-044-951-01 SHEET (A)
S901 1-771-888-11 SWITCH, LEAF (TAPE DETECT)
