Sony Walkman WM-EX500 Service Manual

– 9 –

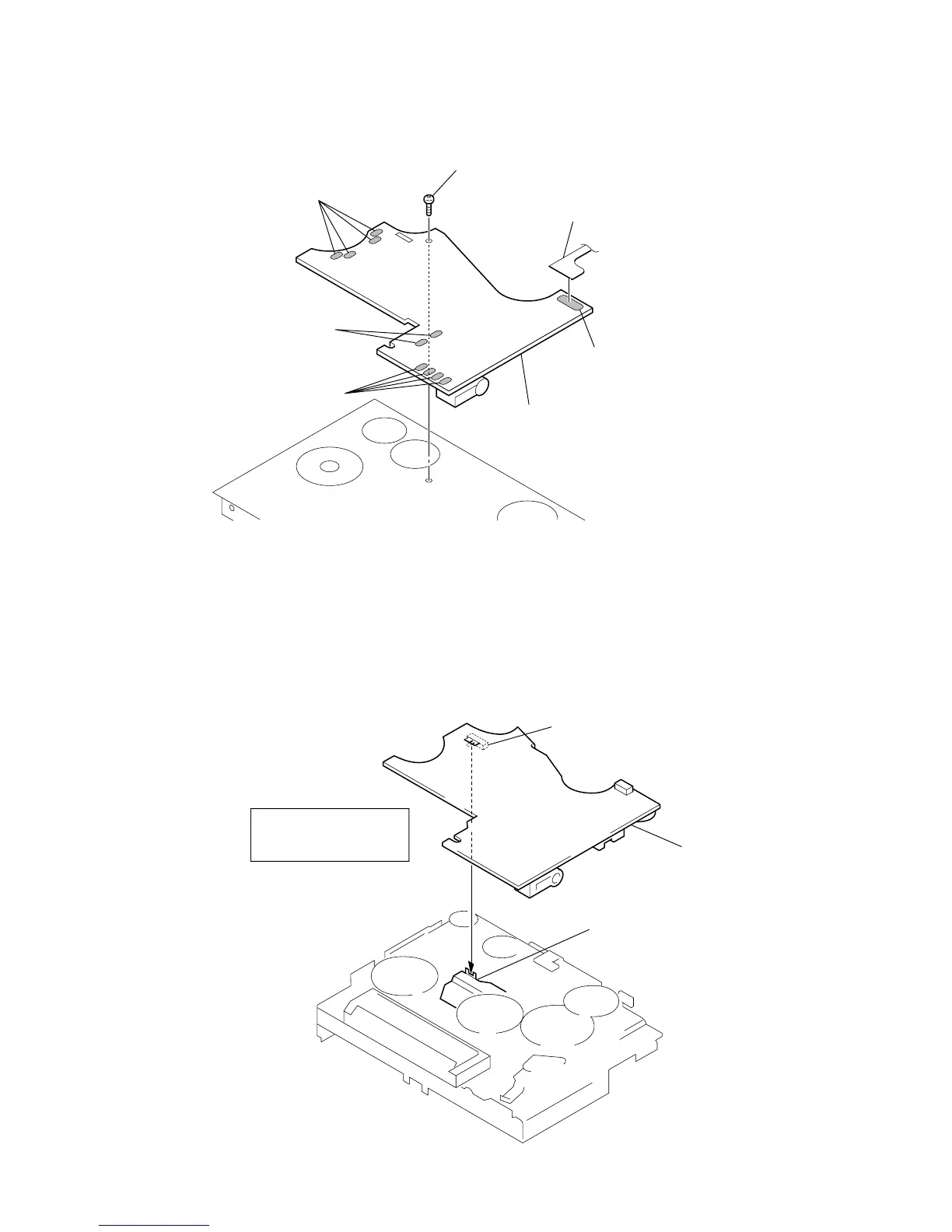

MAIN BOARD
NOTE FOR INSTALLATION
• MAIN BOARD
2 screw
(M1.4 × 2.0)
flexible board
1 Remove six solders
of flexible board.
1 Remove two solders
of plunger solenoid.
1 Remove four solders
of motor.
1 Remove four solders
of leaf switch.
3 MAIN board
slider (NRA)
S701
On installation MAIN board,
adjust the S701 and
slider (NRA).
MAIN board
