Sony Walkman WM-EX500 Service Manual

– 10 –

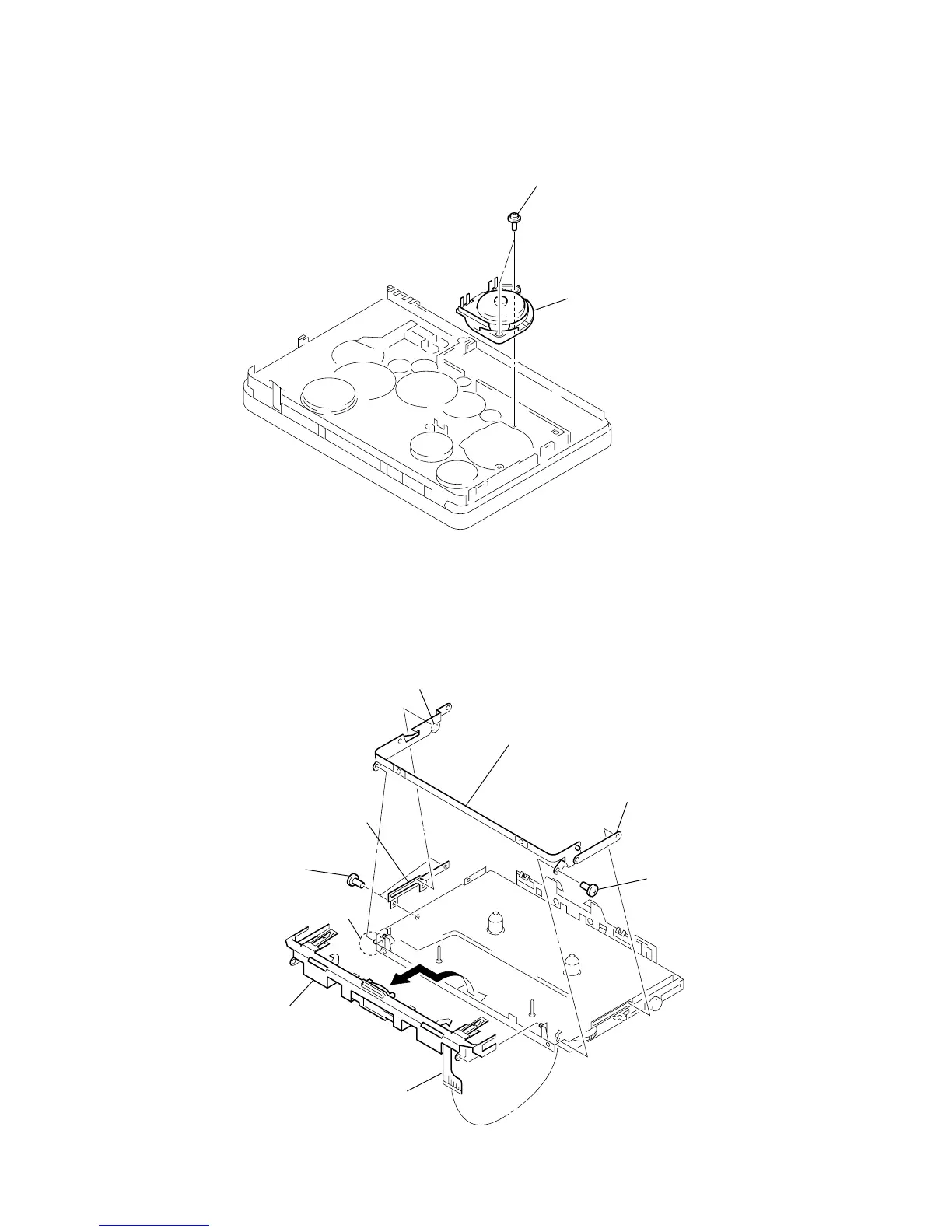

MOTOR (CAPSTAN/REEL) (M901)
HOLDER (FS) ASSY
1 two screws
(M1.4 × 1.4)
2 boss
3 lock lever (B)
7 bracket (cassette) assy
5 lock lever (S)
4 screw (M1.4
)
6 boss
9 Remove the holder (FS) assy
to direction of the arrow.
8 Remove six solders
of flexible board.
1 two screws
(M1.4)
2 motor (M901
)

Sony Walkman WM-EX500 Specifications

General

Brand	Sony
Model	Walkman WM-EX500
Category	Cassette Player
Language	English
