SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure as shown in the flow chart below.

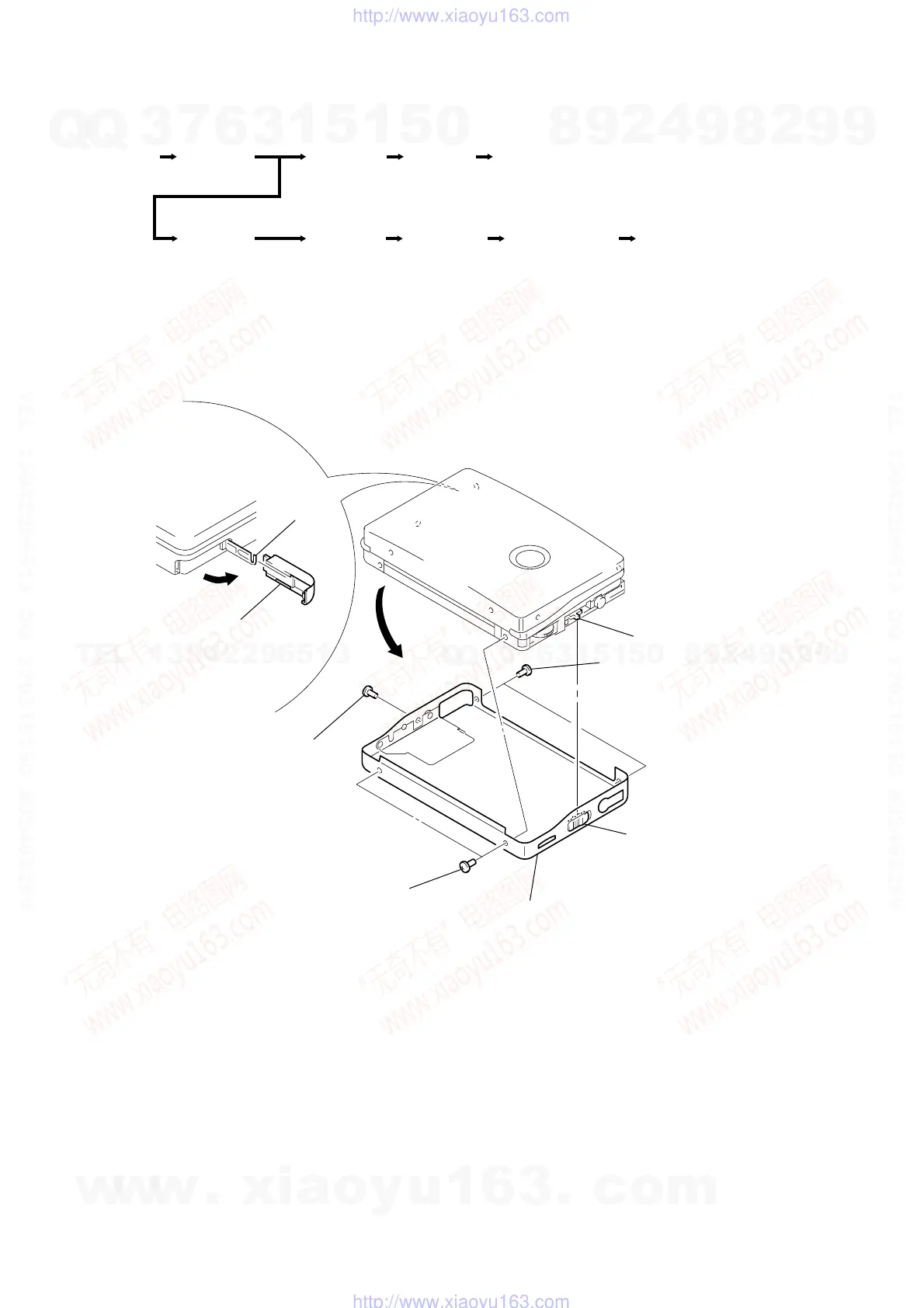

3-1. CASE SUB ASSY
Note : Follow the disassembly procedure in the numerical order given.
1
Claw
Lid, battery case
5
Remove the case sub assy
in the direction of the arrow.
4
Two screws
(M1.4
×
2.5)
2
Screw
(M1.4
×
2.5)
3
Two screws
(M1.4
×
2.5)
knob (HOLD)
S707
Note: When assembling the case su
assy, align the knob (HOLD)
with the position of S707.
Case sub
assy
Lid assy,
cassette
Ornament,
reel
Set
Belt (F4)
Holder (FS)
assy
