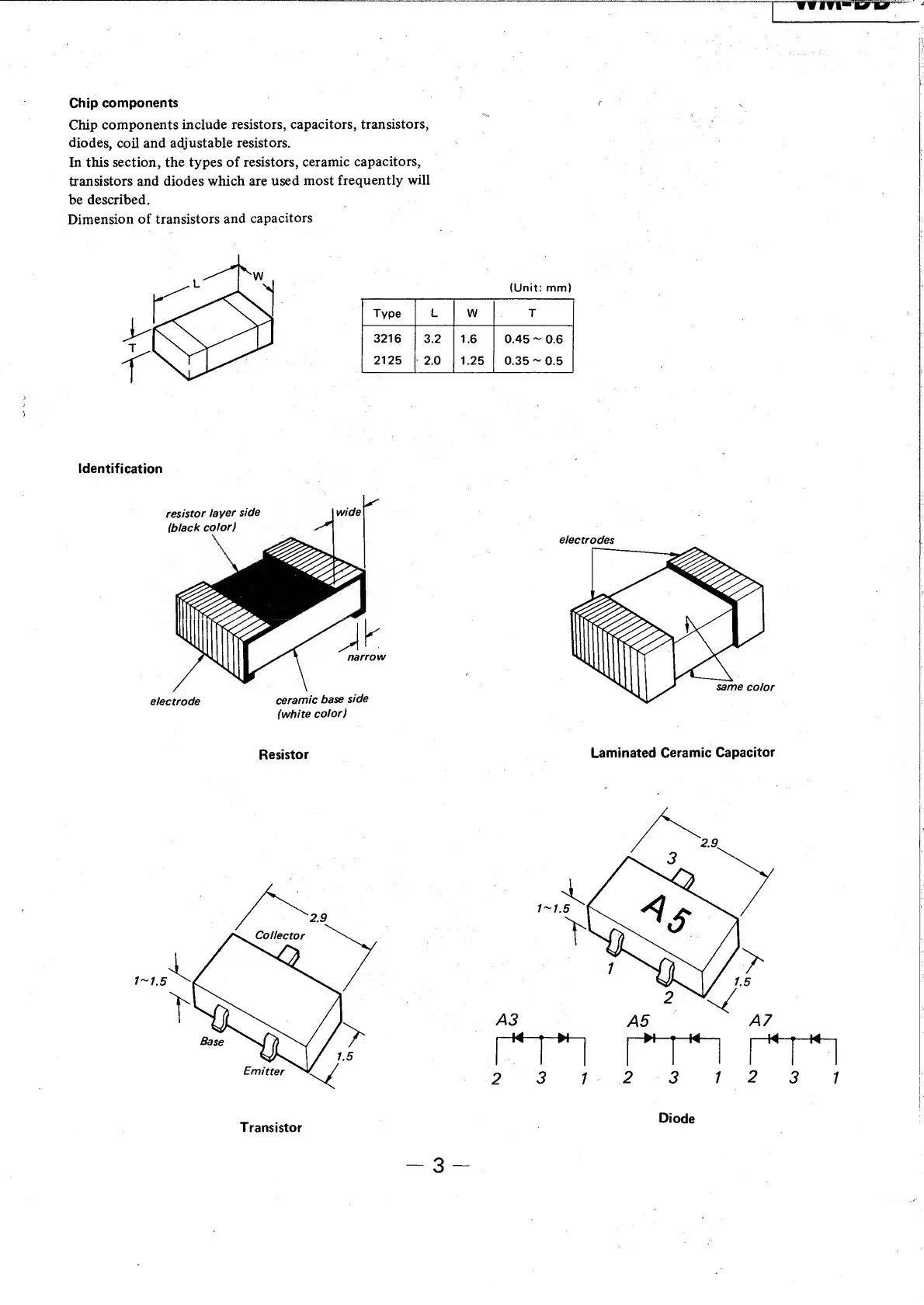

Chip
components
Chip
components
include
resistors,
capacitors,
transistors,
diodes,
coil
and
adjustable
resistors.
In
this
section,
the
types
of
resistors,
ceramic
capacitors,
transistors
and
diodes
which
are
used
most
frequently
will
be
described.
Dimension
of
transistors
and
capacitors
Type
L
W
T
3216
3.2
1.6
0.45
~
0.6
2125
2.0
1.25
0.35-0.5
Identification
electrode
ceramic
base
side
(white
color)
electrodes
Resistor
Laminated
Ceramic
Capacitor
Transistor
Diode
