Sony WM-EX651 - 3 Disassembly; Disassembly Flow; Case Assy

6
WM-EX651
SECTION 3
DISASSEMBLY

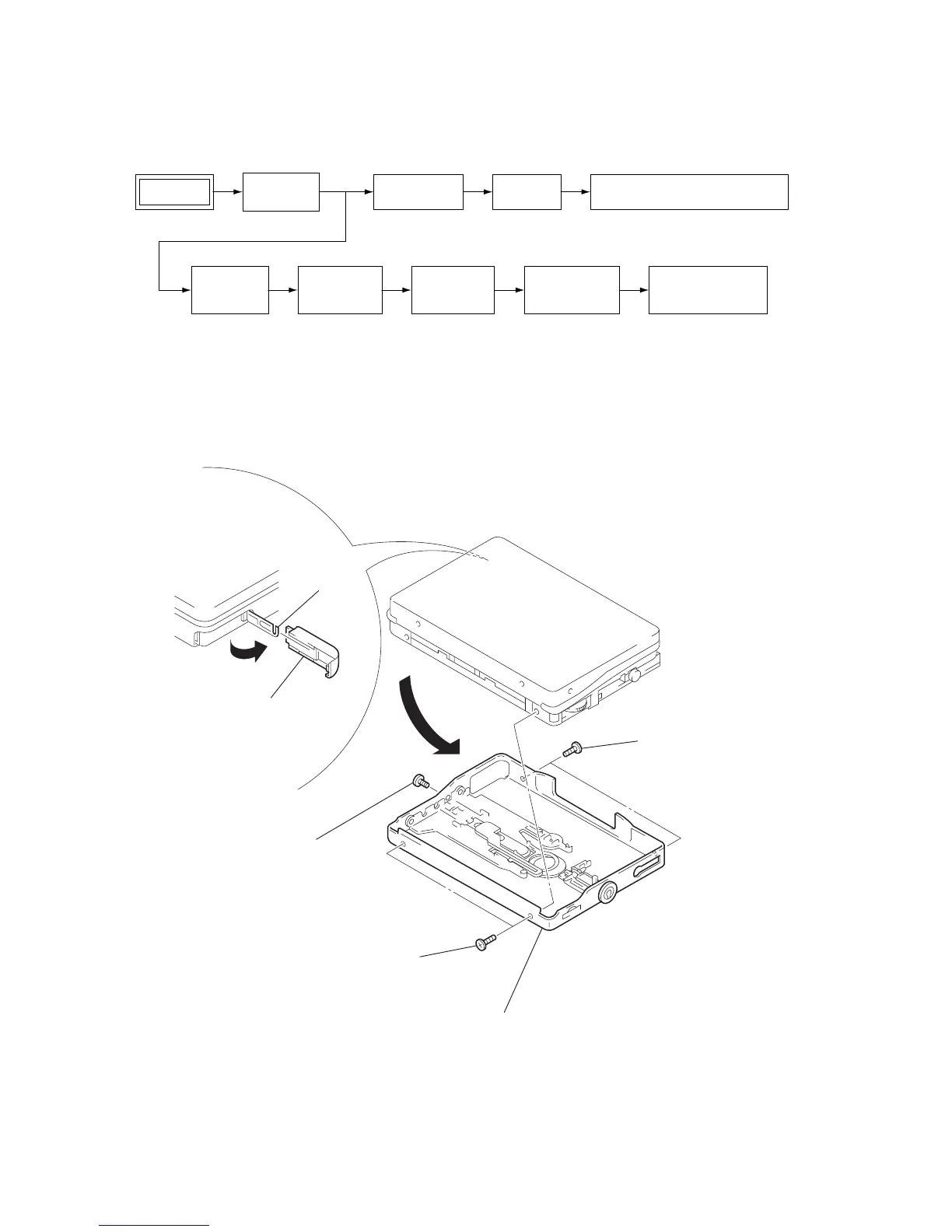

• This set can be disassembled in the order shown below.
3-2. CASE ASSY
CASE ASSY
(Page 6)
CASSETTE
LID ASSY
(Page 8)
ORNAMENT
(OPEN) ASSY
(Page 9)
BELT (F4)
(Page 7)
HOLDER (FS)
ASSY
(Page 9)
MAIN BOARD
(Page 7)
MAGNETIC, HEAD
(HP901)
(Page 10)
PINCH LEVER
(N)/(R) ASSY
(Page 10)
MOTOR (CAPSTAN/REEL) (M901)
(Page 8)
SET
1 lid,battery case
claw
2 screw
(M1.4
× 2.5)
3 two screws
(M1.4
× 2.5)
4 two screws
(M1.4
× 2.5)
5 Remove the case assy
in the direction of the arrow.
3-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
