SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

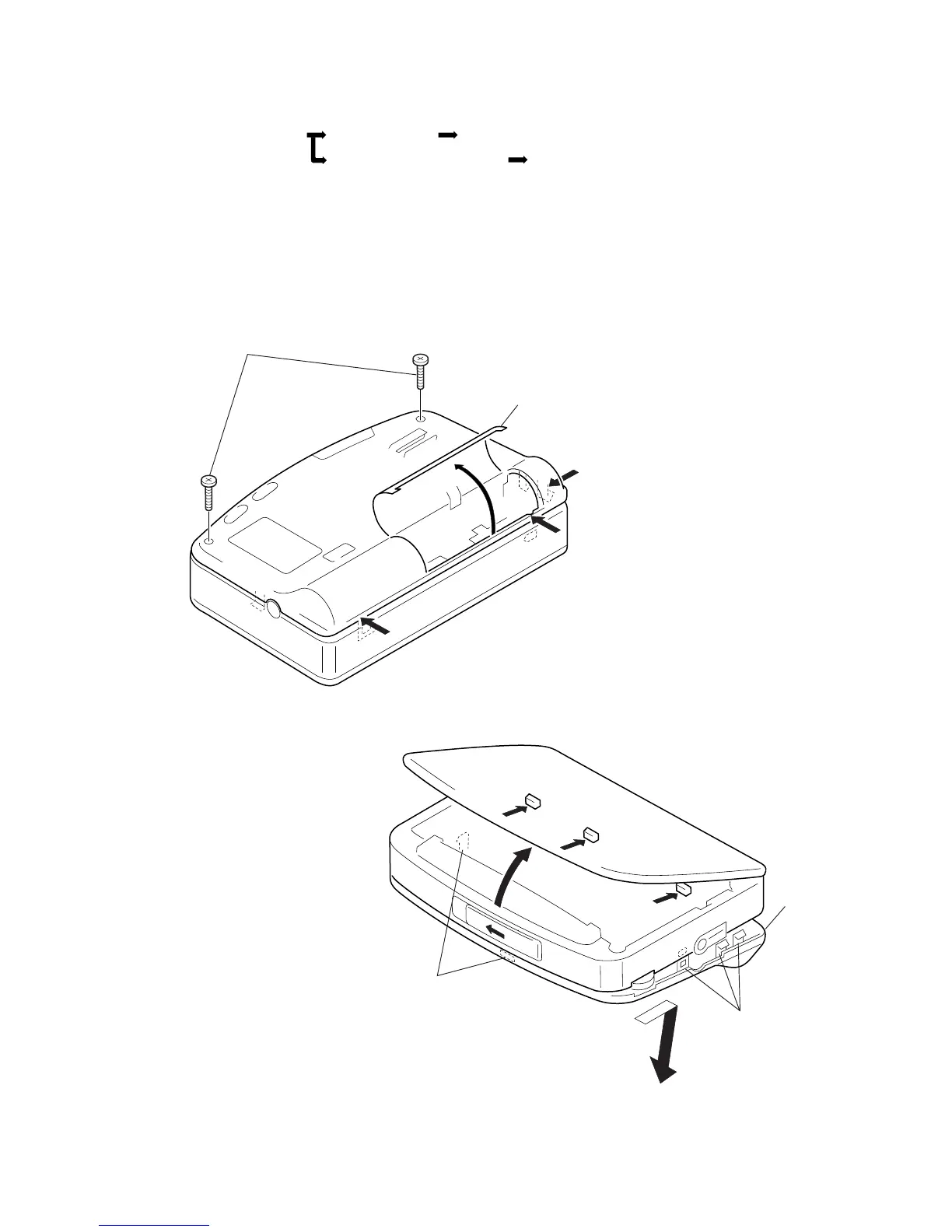

2-1. CABINET (REAR) ASSY
• This set can be disassembled in the order shown below.
2-1. CABINET (REAR) ASSY 2-2. MAIN BOARD
2-4. CASSETTE LID SUB ASSY
2-3. MECHANISM DECK
2-5. DISPLAY BOARD
1 Screw (B 1.7 × 12), tapping
2 Open the lid battery case.
3
3
3
Cabinet (rear) assy
Claws
Claws
6
5
5
5
4
