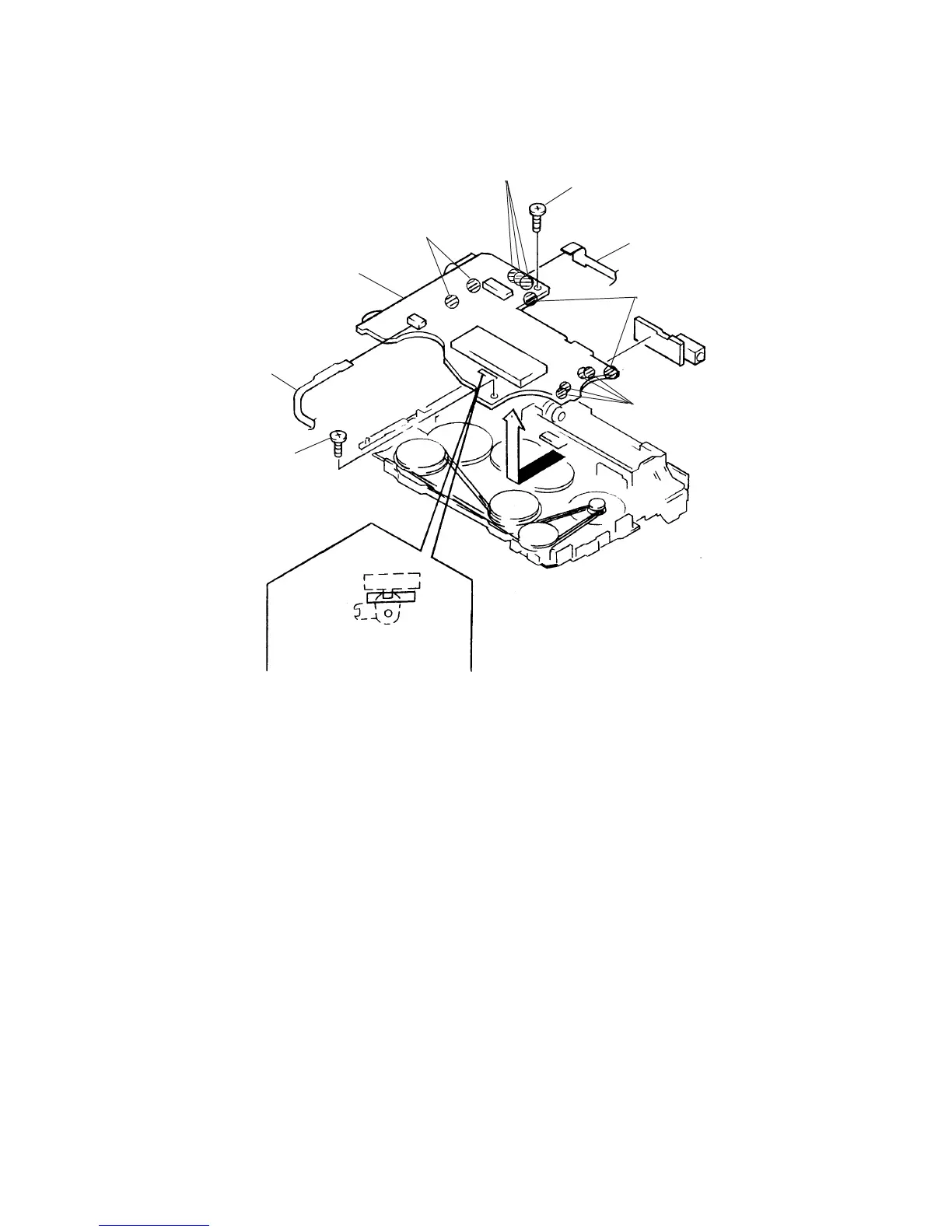

3-3. MAIN BOARD AND SUB BOARD
ATS flexible board
4 Battery terminal
8 Remove the Main board
direction of arrow.
1 Flexible board
(Head)
7 Screw (M1.4x2.0)
5 Remove the solder of the
motor.
Note : Confirm if the switch lever
installs it self in the groove
of a lever (NR switch) for
assembling.
Lever (NR switch)
S701
6 Tapping screw
2 Remove the solder of the
plunger solenoid.
3 Remove the solder of the
ATS flexible board.
