XC-ST70/ST70CE/ST50/ST50CE/ST51/ST51CE/ST30/ST30CE
Digital Video Camera
Intelligent
XCI XC (Non-TV Format)
XC (TV Format)
Accessories
XCG XCLXCD
Color Camera Module
Color PTZ Camera
FCB EVI
Analog Video Camera
1
Lens mount (C-mount)
Attach any C-mount lens or other optical equipment.
The lens must not project more than 10 mm from the lens mount.
2
Reference holes (at the top)
These precision screw holes are for locking the camera module.
Locking the camera module using these holes secures the optical
axis alignment.
3
Reference screw holes/Tripod screw holes (at the bottom)
These precision screw holes are for locking the camera module.
Locking the camera module using these holes secures the optical
axis alignment.
You can install the camera on a tripod. To install on a tripod,
you will need to install the VCT-ST70I tripod adaptor using the
reference holes on the bottom of the camera.

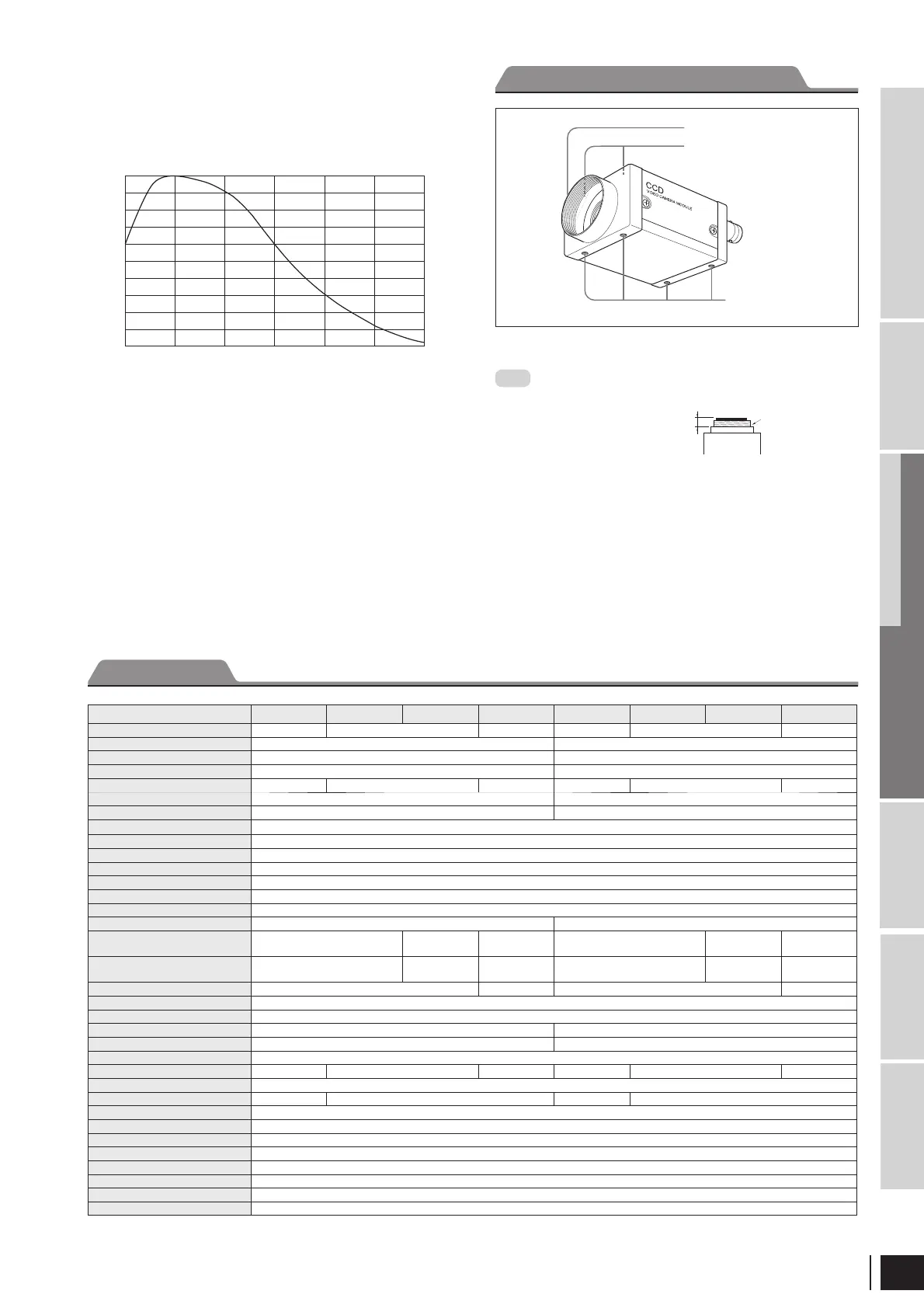

400 500 600 700 800 900 1000
0
0.2
0.6
0.4
0.8
1.0
XC-ST50/XC-ST51/XC-ST30•
Wavelength (nm)
(Lens characteristics and light source characteristics excluded.)
Relative sensitivity
(Typical Values)
Location and Function of Parts and Controls
1
Lens mount (C-mount)
2
Reference holes
3
Reference screw holes/
Tripod screw holes
XC-ST70 XC-ST50 XC-ST51 XC-ST30 XC-ST70CE XC-ST50CE XC-ST51CE XC-ST30CE
Image device 2/3-type IT CCD 1/2-type IT CCD 1/3-type IT CCD 2/3-type IT CCD 1/2-type IT CCD 1/3-type IT CCD
Signal system EIA CCIR
Effective picture elements (H) × (V) 768 × 494 752 × 582
Effective lines (H) × (V) 752 × 485 736 × 575
Cell size (H) × (V)
11.6
μ
m × 13.5
μ
m 8.4
μ
m × 9.8
μ
m 6.35
μ
m × 7.4
μ
m 11.6
μ
m × 11.2
μ
m 8.6
μ
m × 8.3
μ
m 6.5
μ
m × 6.25
μ
m
Horizontal frequency 15.734 kHz 15.625 kHz
Vertical frequency 59.94 Hz 50 Hz
Lens mount C mount
Sync system Internal/External
External Sync system input/output
*1
HD/VD (HD/VD level: 2 V to 5 Vp-p)
External Sync frequency
±
1% (in horizontal sync frequency), VS
Jitter less than
±
20 nsec (external horizontal frequency)
Scanning system 2:1 Interlaced
Video output 1.0 Vp-p, negative, 75 Ω unbalanced
Horizontal resolution 570 TV lines 560 TV lines
Sensitivity
400 lx, F8
(
γ
= ON, 0 dB)
400 lx, F11
(
γ
= ON, 0 dB)
400 lx, F5.6
(
γ
= ON, 0 dB)
400 lx, F8
(
γ
= ON, 0 dB)
400 lx, F11
(
γ
= ON, 0 dB)
400 lx, F5.6
(
γ
= ON, 0 dB)
Minimum illumination
0.3 lx
(F1.4, AGC ON)
0.2 lx
(F1.4, AGC ON)
0.3 lx
(F1.4, AGC ON)
0.3 lx
(F1.4, AGC ON)
0.2 lx
(F1.4, AGC ON)
0.3 lx
(F1.4, AGC ON)
S/N ratio 60 dB 56 dB 58 dB 54 dB
Gain AGC/Fixed/Manual (adjustable on the rear panel)
Gamma ON/OFF (adjustable on the rear panel)
Normal shutter 1/100 sec to 1/10,000 sec 1/120 sec to 1/10,000 sec
External trigger shutter 1/4 sec to 1/10,000 sec 1/4 sec to 1/8,000 sec
Power requirements DC 12 V (10.5 V to 15 V)
Power consumption 2.1 W 2.0 W 1.9 W 2.1 W 2.0 W 1.9 W
Dimensions 44 (W) × 29 (H) × 57.5 (D) mm (not including projecting parts)
Mass 105 g 110 g 105 g 110 g
Operating temperature/humidity −5˚C to +45˚C / 20% to 80% (no condensation)
Storage temperature/humidity −30˚C to +60˚C / 20% to 95% (no condensation)
Performance guarantee temperature 0˚C to 40˚C
Vibration resistance 10 G (20 Hz to 200 Hz 20 minutes for each direction–x, y, z)
Shock resistance 70 G
MTBF 70,600 hours (Approx. 8.1 years)
Regulatory compliance UL6500, FCC/ICES-003 : Class B, CE : EN61326, AS/NZ : EN61326
Supplied accessories Lens mount cap (1), Operating instructions (1)
Specifi cations
Lens mount shoulder
10 mm or less
Note
*1
Automatic switching in response to the presence of an input signal when the switch on the rear panel is set to EXT.
The values for mass and dimension are approximate.
