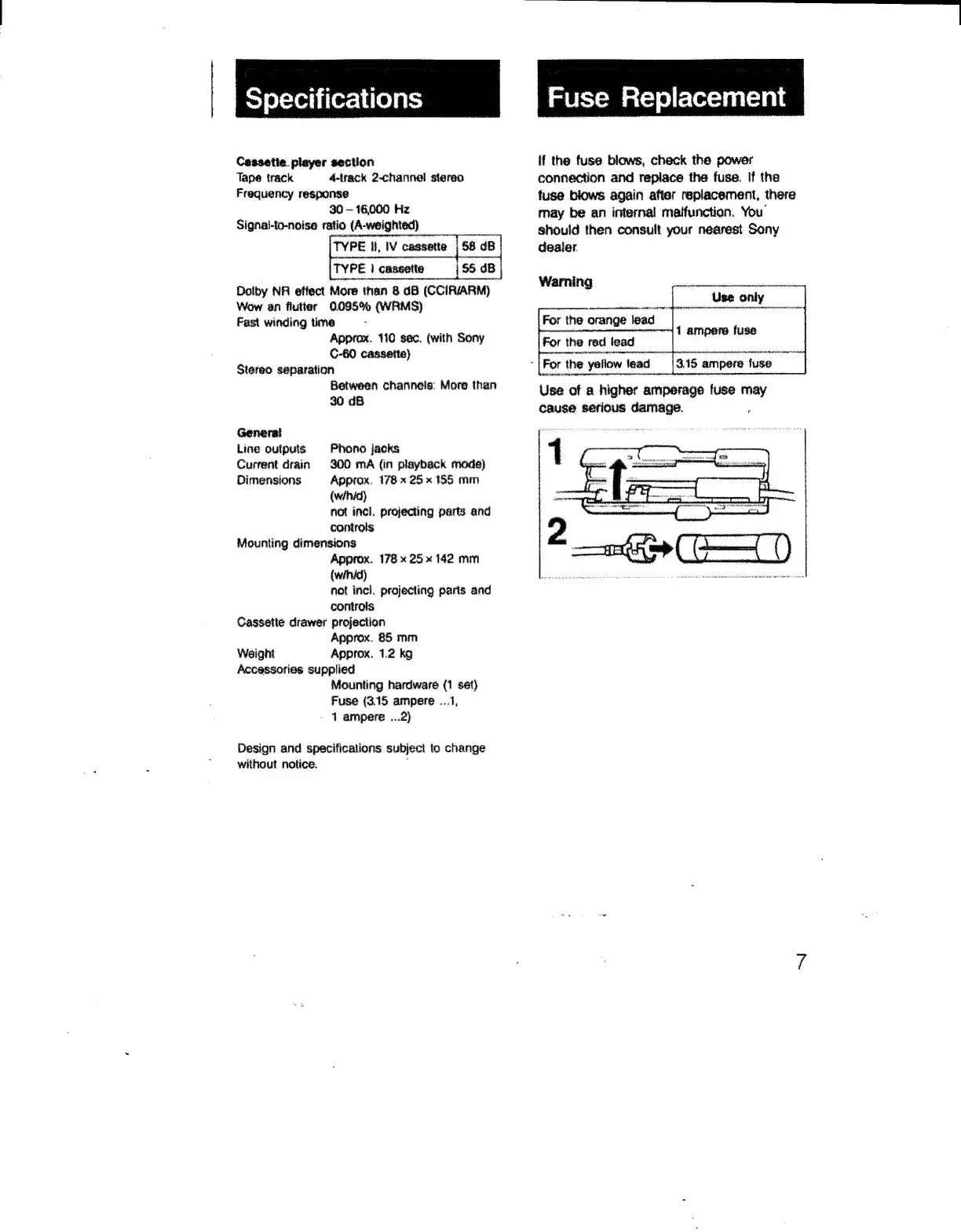

Specifications
Cassetie_player section
Tape track 4-lrack 2-channel stereo
Frequency response
30 ~- 16,000 Hz
Signal-to-noise ratio (A-weighted)
TYPE fl, IV cassette | 58 dB
TYPE | cassette {55 dB
Dolby NA effect More than 8 dB (CCIR/ARM)
Wow an flutter 0.095% (WRMS)
Fast winding time
Approx. 110 sac. (with Sony
C-60 cassette)
Stereo separation
Between channels: More than
30 dB
General
Line outputs Phono jacks
Current drain 300 mA (in playback mode)
Dimensions Approx. 178 x 25 x 185 mm
(wihid)
not incl. projecting parts and
controls
Mounting dimensions
Approx. 178 x 25 x 142 mm
(wihid)
not incl. projecting parts and
controls
Cassette drawer projection
Approx. 85 mm
Weight Approx. 1.2 kg
Accessories supplied
Mounting hardware (1 set)
Fuse (3.15 ampere ...1,
1 ampere ...2)
Design and specifications subject to change
without notice. ;
‘|For the yellow lead
Fuse Replacement
if the fuse blows, check the power
connection and replace the fuse. if the
fuse blows again after replacement, there
may be an internal malfunction. You’
should then consult your nearest Sony
dealer.
Warning
For the orange lead
For the red lead
3.15 ampere fuse
Use of a higher amperage fuse may
cause serious damage.
