If you do not want to assign a key to a key delegation
button, select [No Assign].
Inhibiting operation of the key fader
control block
You can set to inhibit operations for each module in the
key fader control block.
1
In the status area of the Engineering Setup >Panel
>Config >Key Fader Assign menu (7321.1), select the
module to set.
2
Press [Inhibit].
Setting fader lever operations
1
In the Engineering Setup >Panel >Config >Key Fader
Assign menu (7321.1), press [Fader Assign].
The Fader Assign menu (7321.30) appears.
2
Select the target fader lever to assign in the status area.
3
In the <Fader Assign> group, set the key to be
operated by the fader lever.
All: Operate the keys selected by the key delegation
buttons (1 to 4).
1st Key: Operate the key assigned to key delegation
button 1.
2nd Key: Operate the key assigned to key delegation
button 2.
3rd Key: Operate the key assigned to key delegation
button 3.
4th Key: Operate the key assigned to key delegation
button 4.
Disable: Disable operation of the fader lever.
Assigning a Region to the Region
Selection Buttons in the Numeric
Keypad Control Block
You can assign regions to the region selection buttons in
the numeric keypad control block. You can assign up to
four regions to a single button.
1
In the Engineering Setup >Panel >Config menu
(7321), press [10 Key Region Assign].

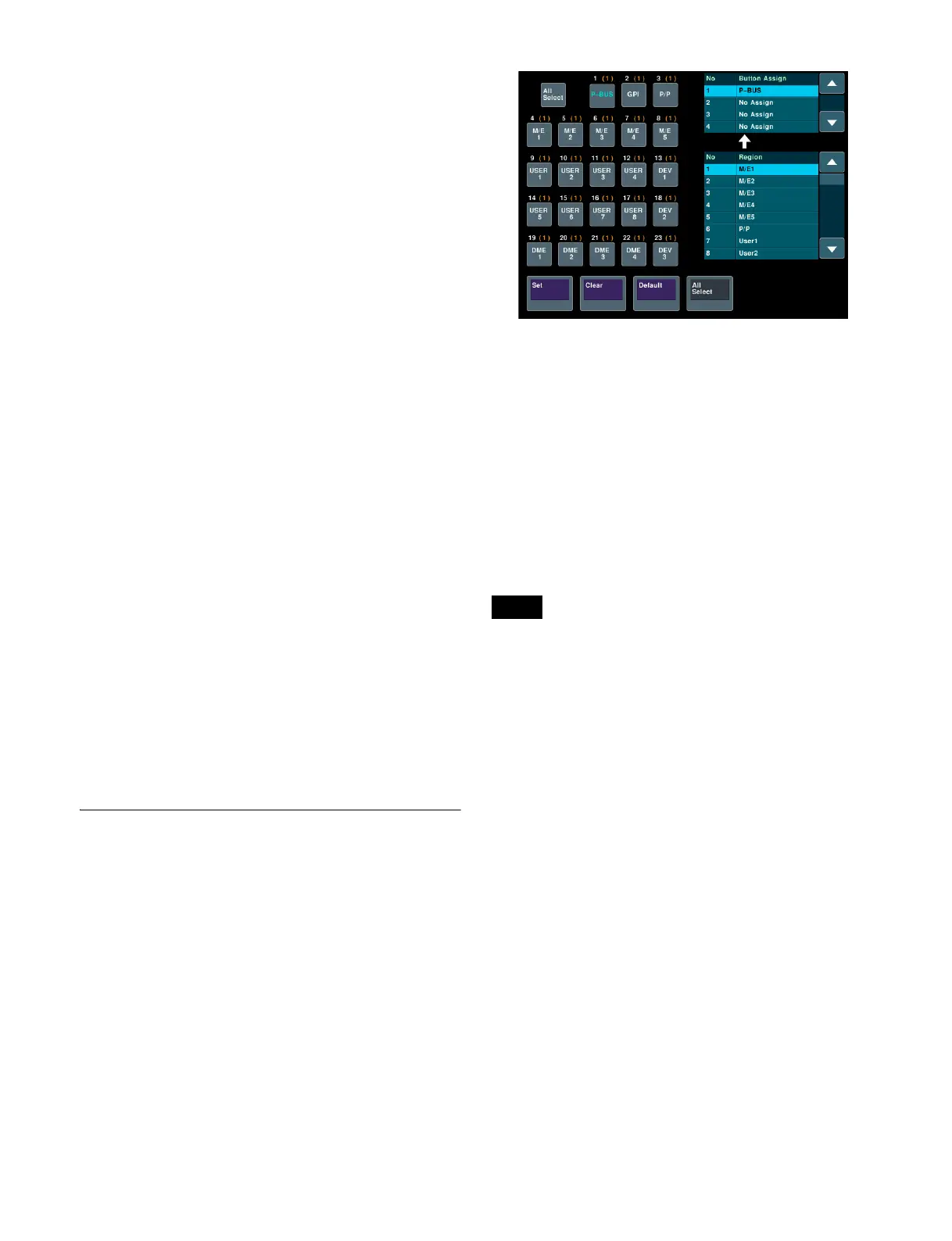

The 10 Key Region Assign menu (7321.7) appears.
The left side of the status area shows the region
selection buttons. The upper part of the right side
shows a list of four regions assigned to a region
selection button, and the lower part shows a list of
assignable regions.
2
Press the target button to make an assignment.
3
Select the target from the four regions.
4
Select the region to assign.
5
Press [Set].
Only regions assigned here can be used for keyframe or
snapshot recall.
If a switcher bank region is not assigned to a region
selection button in the numeric keypad control block, the
Flexi Pad control block cannot be used to recall a snapshot.
To release a region assignment
Press the target button display to release. Select the region
to release from the list of regions assigned to the button,
then press [Clear].
To return the region assignment to the default
Press [Default].
Setting the region selection buttons
selected when the [ALL] button is pressed
1
In the Engineering Setup >Panel >Config >10 Key
Region Assign menu (7321.7), press [All Select],
turning it on.
You can also press the [All Select] button in the status
area.
The [All Select] button indicator in the status area
changes to orange, and the system switches to a mode
for assigning region selection buttons to the [ALL]
button.
Note
