16
XM-2165GTX
SECTION 5
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of
this parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R
R

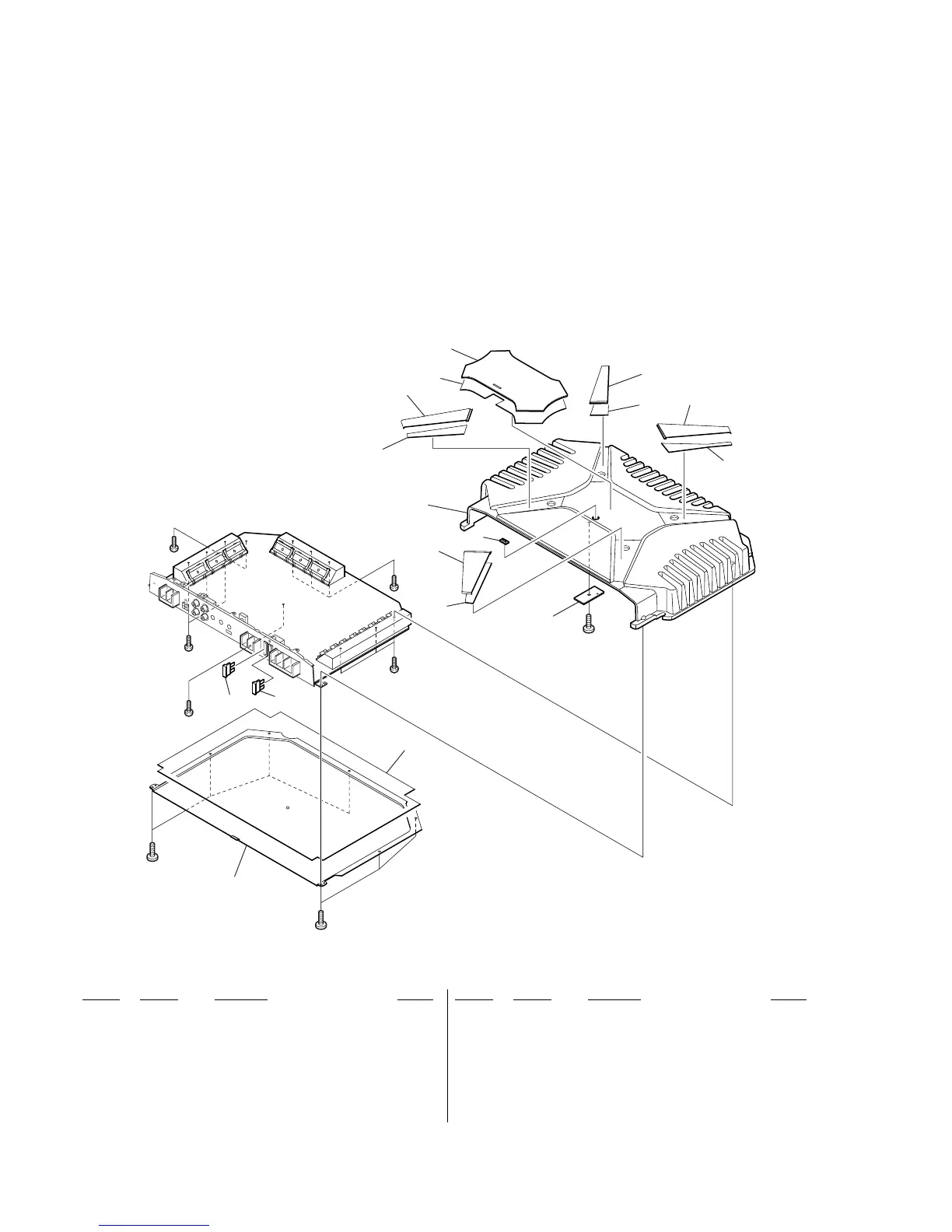

5-1. HEAT SINK (MAIN) SECTION
1 3-249-783-01 PLATE, BOTTOM
2 3-249-784-01 SHEET, INSULATING
3 3-249-778-01 HEAT SINK (MAIN)
4 3-249-780-01 PLATE (LOWER), ORNAMENTAL
5 3-249-781-01 PLATE, ORNAMENTAL
6 3-249-779-01 PLATE (UPPER), ORNAMENTAL
7 3-249-789-01 PLATE, LIGHT GUIDE
8 3-250-686-01 SHEET (LOWER), ADHESIVE
9 3-252-836-01 SHEET, DOUBLE-FACE ADHESIVE
10 3-250-685-01 SHEET (UPPER), ADHESIVE
F901 1-532-947-11 FUSE (BLADE TYPE) (AUTO FUSE) (30A)
F902 1-532-947-11 FUSE (BLADE TYPE) (AUTO FUSE) (30A)
#1 7-685-545-14 SCREW +BTP 3X6 TYPE2 N-S
#2 7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
1
2
4
8
8
5
9
4
#1
#1
not supplied
(LED boad)
#1
#2
#2
#2
#2
#2
F902
F901
6
10
10
6
3
7
To Next Page
