Sony XM-C6000 - Page 9

XM-C6000
NOTE:
—XX, —X mean standardized parts, so
they may have some differences from
the original one.
The construction parts of an assembled
part are indicated with a collation
number in the remark column.
Color indication of Appearance Parts

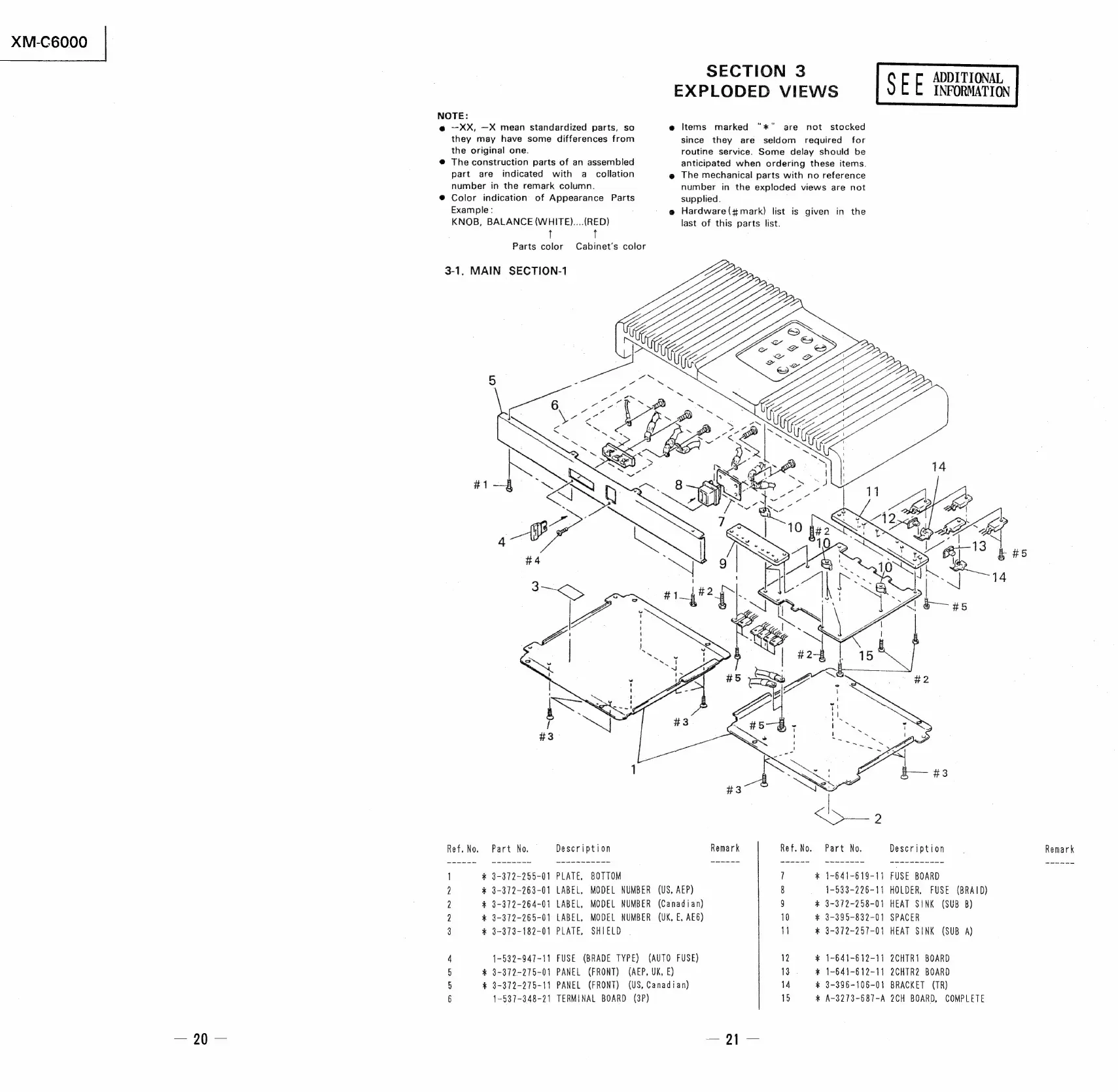

SECTION 3
EXPLODED VIEWS
e@ Items marked “*”" are not stocked
since they are seldom required for
routine service. Some delay should be
anticipated when ordering these items.
The mechanical parts with no reference
number in the exploded views are not
supplied.
SE
Example :
KNOB, BALANCE (WHITE)....(RED)
@ Hardware(#mark) list is given in the
last of this parts list.
t
Parts color Cabinet's color
3-1. MAIN SECTION-1
Ref. No. Part No.
Description Remark Ref. No. Part No.
1 * 3-372-255-01 PLATE, BOTTOM 1 * 1-641-619-11
2 * 3-372-263-01 LABEL, MODEL NUMBER (US, AEP) 8 , deSed=226>14
2 * 3-372-264-01 LABEL, MODEL NUMBER (Canadian) 9 * 3-372-258-01
2 * 3-372-265-01 LABEL, MODEL NUMBER (UK, E, AES) 10 * 3-395-832-01
3 * 3-373-182-01 PLATE, SHIELD . 11 * 3-372-257-01
4 1-532-947-11 FUSE (BRADE TYPE) (AUTO FUSE) 12 * 1-641-612-11
5 * 3-372-275-01 PANEL (FRONT) (AEP, UK, E) 13. 1-641-612-11
5 * 3-372-275-11 PANEL (FRONT) (US, Canadian) 14 * 3-396-106-01
6 1-537-348-21 TERMINAL BOARD (3P) 19 *
ADDITIONAL |
INFORMATION
Description : Remark
FUSE BOARD
HOLDER, FUSE (BRAID)
HEAT SINK (SUB B)
SPACER
HEAT SINK (SUB A)
2CHTR1 BOARD
2CHTR2 BOARD
BRACKET (TR)
A-3273-687-A 2CH BOARD, COMPLETE
