– 35 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

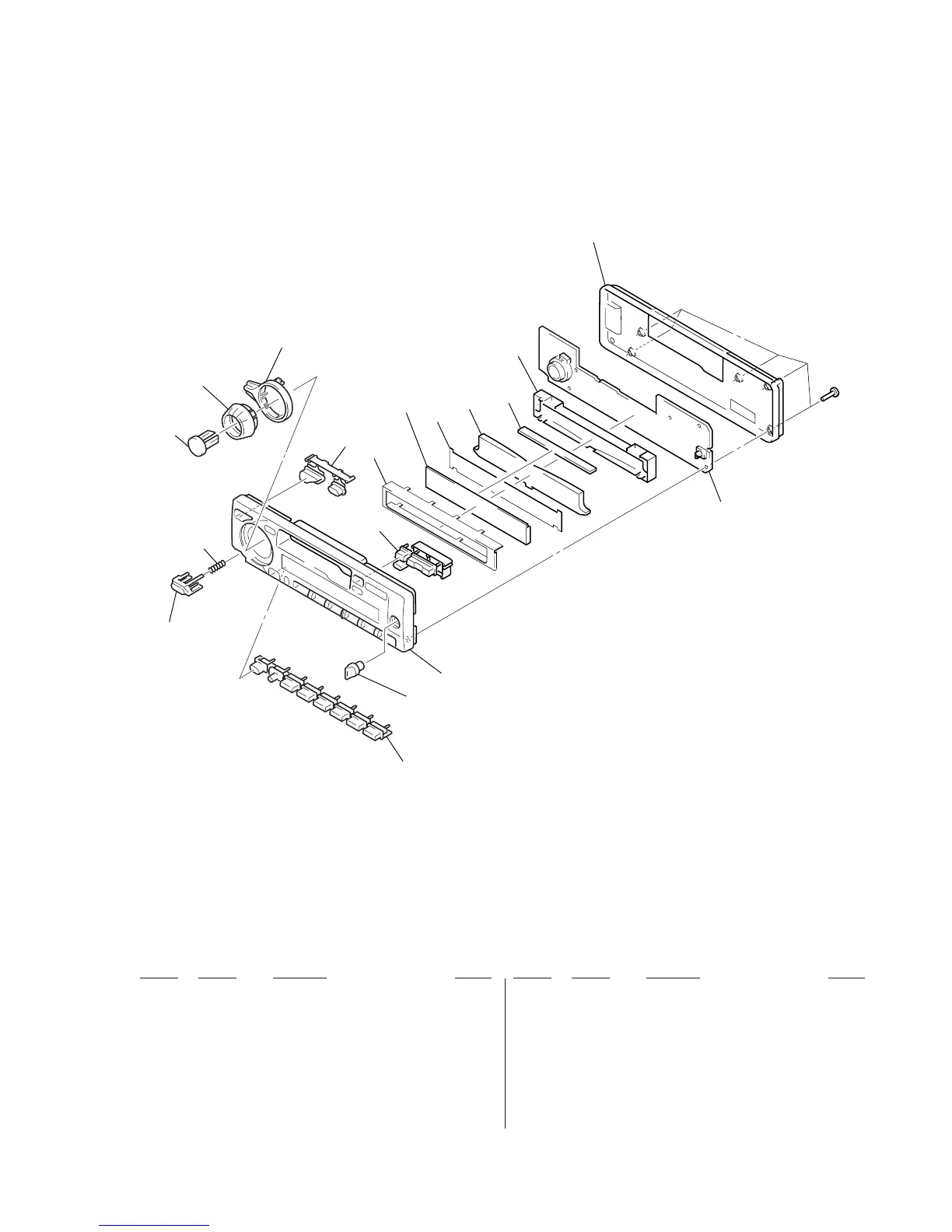

(2) FRONT PANEL SECTION
51 3-030-835-01 BUTTON (1-6) (OFF. SHIFT. 1. 2. 3. 4. 5. 6)
52 3-030-837-01 BUTTON (D-BASS)
53 X-3377-052-1 PANEL SUB ASSY
54 3-030-838-01 BUTTON (RELEASE)
55 3-932-475-01 SPRING (RELEASE)
56 3-030-831-01 BUTTON (SOURCE)
57 3-030-830-11 KNOB (VOL)
58 3-030-832-01 LEVER (S/A) (+, -)
59 3-030-834-01 BUTTON (M/S) (MODE *. SOUND)
60 3-030-836-11 BUTTON (D/P/A) (6. - DISC +. DSPL)
* 61 3-030-840-01 PLATE (B), GROUND
* 62 3-030-839-01 SHEET (REFLECTOR)
* 63 3-030-824-01 PLATE, LIGHT GUIDE
64 1-694-508-11 CONDUCTIVE BOARD, CONNECTION
* 65 3-030-825-01 HOLDER (LCD)
66 3-030-827-01 PANEL, FRONT BACK
LCD901 1-803-495-11 DISPLAY PANEL, LIQUID CRYSTAL
66
65
64
63
62
61
60
59
58
57
56
55
54
51
52
53
not supplied
(KEY board)
LCD901
#
To Next Page
